BLUEFISH444 Epoch 4K Supernova and Supernova S+

BlueFish444

Epoch 4K Supernova and Supernova S



In an increasingly broadcast IT infrastructure dominated world, Bluefish 444's ambition is to ‘ever-stretch’ the boundaries to deliver tomorrows solutions today. Epoch|Supernova is just that! A card that can do what no other on the market can do. Reduce your hardware costs, increase you capabilities, and give you more choice and flexibility than ever before.

Features 3G-SDI, 4 Bi-Directional BNC, a 12 bit video processing pipeline, fully programmable pristine image scaling capability, dual link, multi channel I/O with full duplex Uncompressed video up to 4K and Stereoscopic 3D capability.

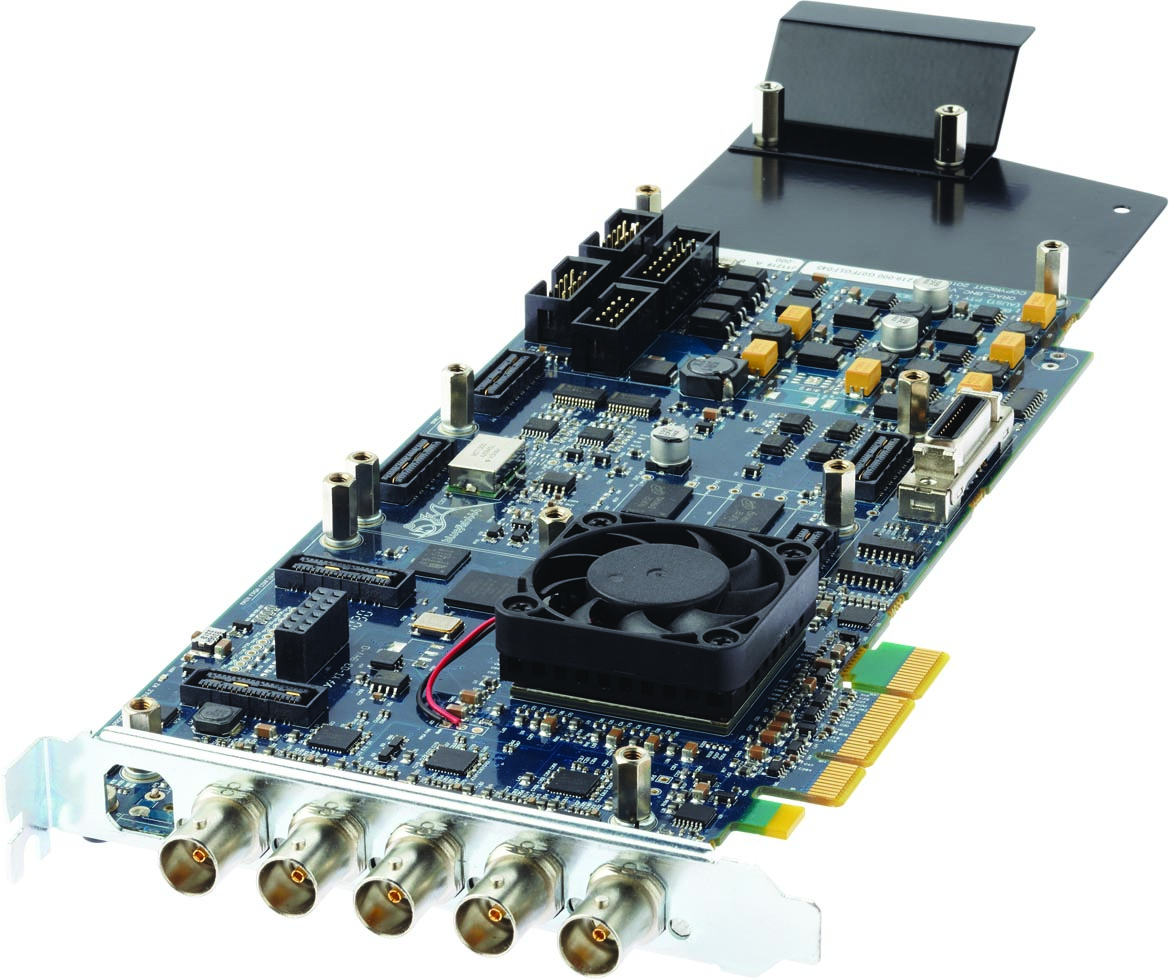

BlueFish444 Epoch | 4K Supernova



    • Full-Length, 4-Lane PCIe I/O Card
    • 4x Bi-Directional 3G/HD/SD-SDI and ASI
    • 5th BNC for Genlock/SDI/ASI/AES/EBU/LTC
    • 4K 4:4:4 RGB 8-Bit & 4:2:2 YUV 8/10-Bit
    • Single Link 4:2:2 I/O
    • Dual Link 4:4:4, 4:4:4:4, 4:2:2:4 I/O
    • 12-Bit Internal Processing
    • 1.1GB/s DMA for Full Duplex I/O

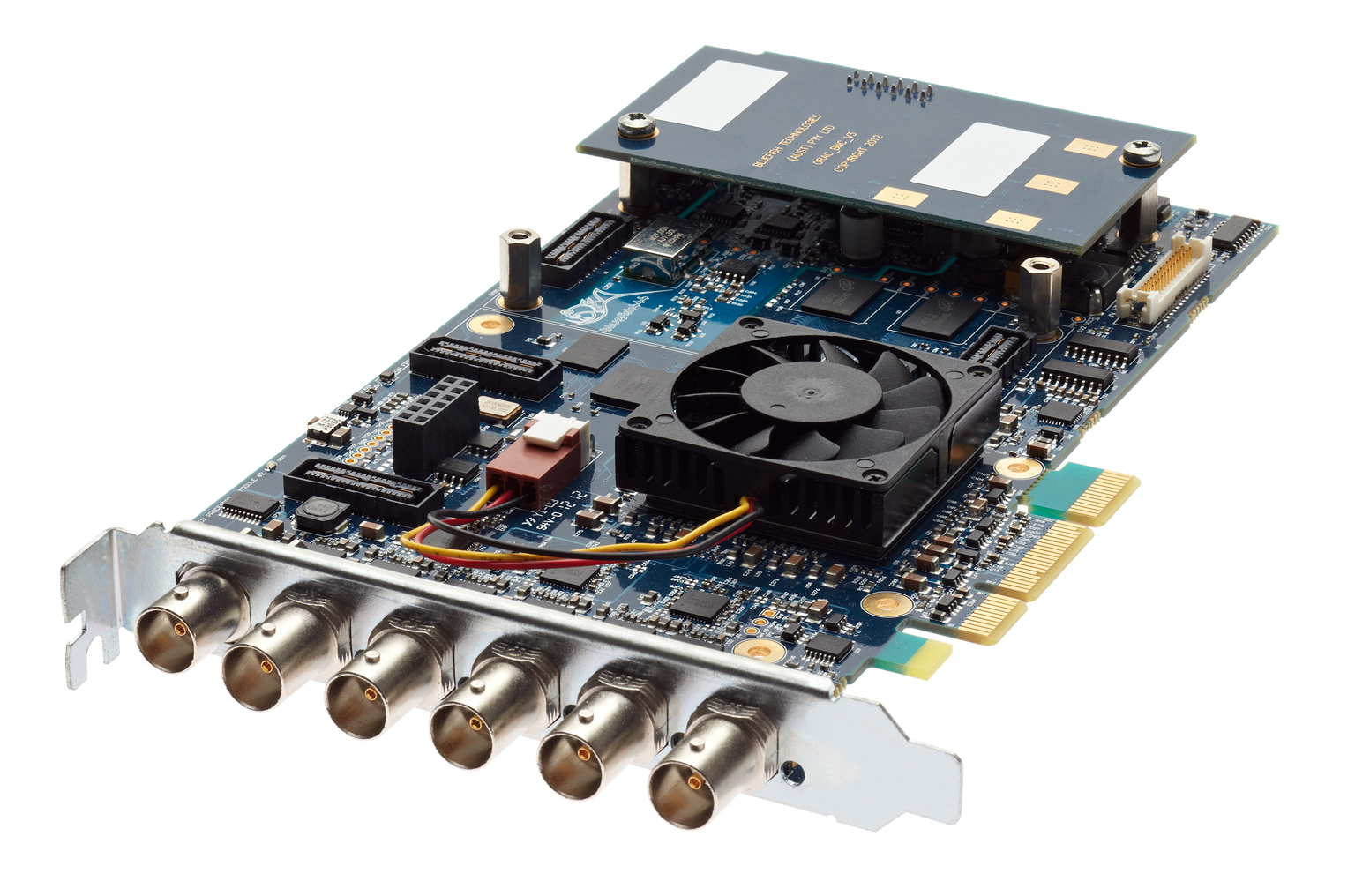

BlueFish444 Epoch | 4K Supernova S+



    • 4-Lane PCIe I/O Card
    • 4x Bi-Directional 3G/HD/SD-SDI and ASI
    • 5th BNC for Genlock/SDI/ASI/AES/EBU/LTC
    • Copy Preview BNC Output
    • 4K 4:4:4 RGB 8-Bit & 4:2:2 YUV 8/10-Bit
    • Single Link 4:2:2 I/O
    • Dual Link 4:4:4, 4:4:4:4, 4:2:2:4 I/O
    • 12-Bit Internal Processing
    • 1.1GB/s DMA for Full Duplex I/O
