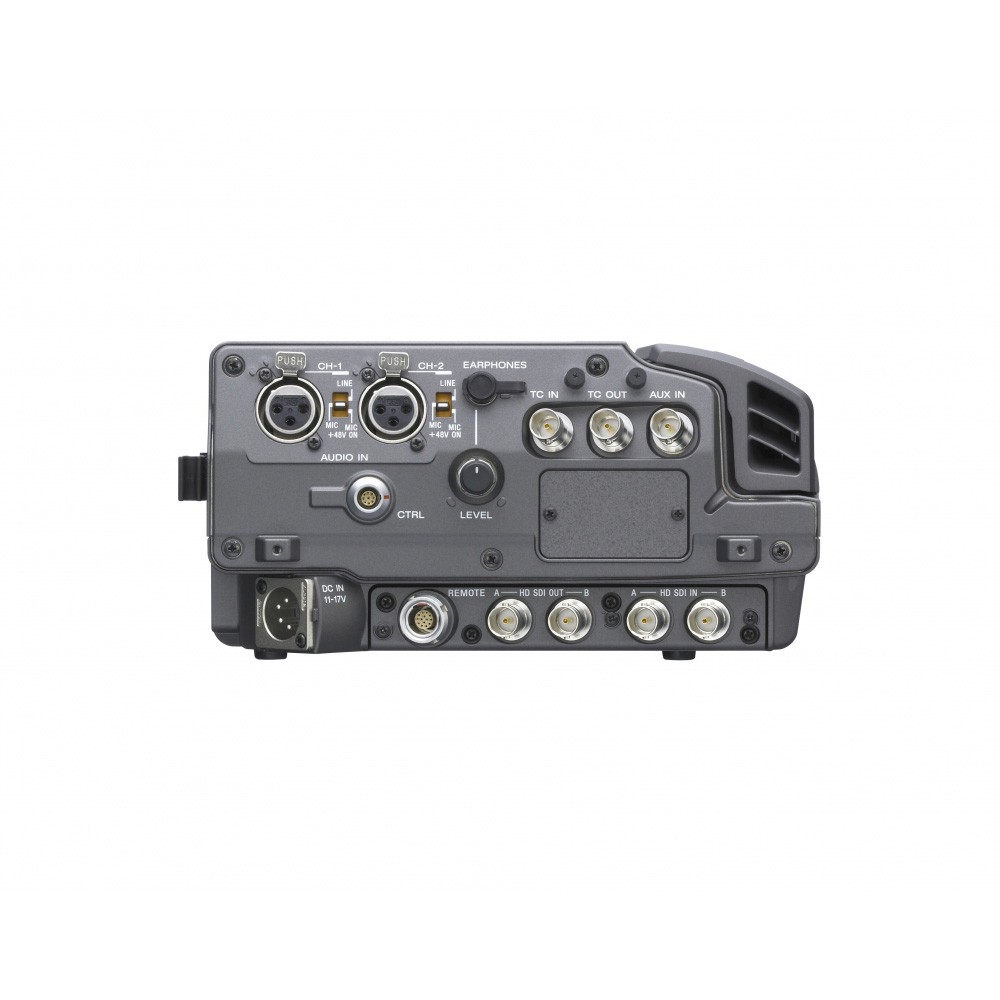

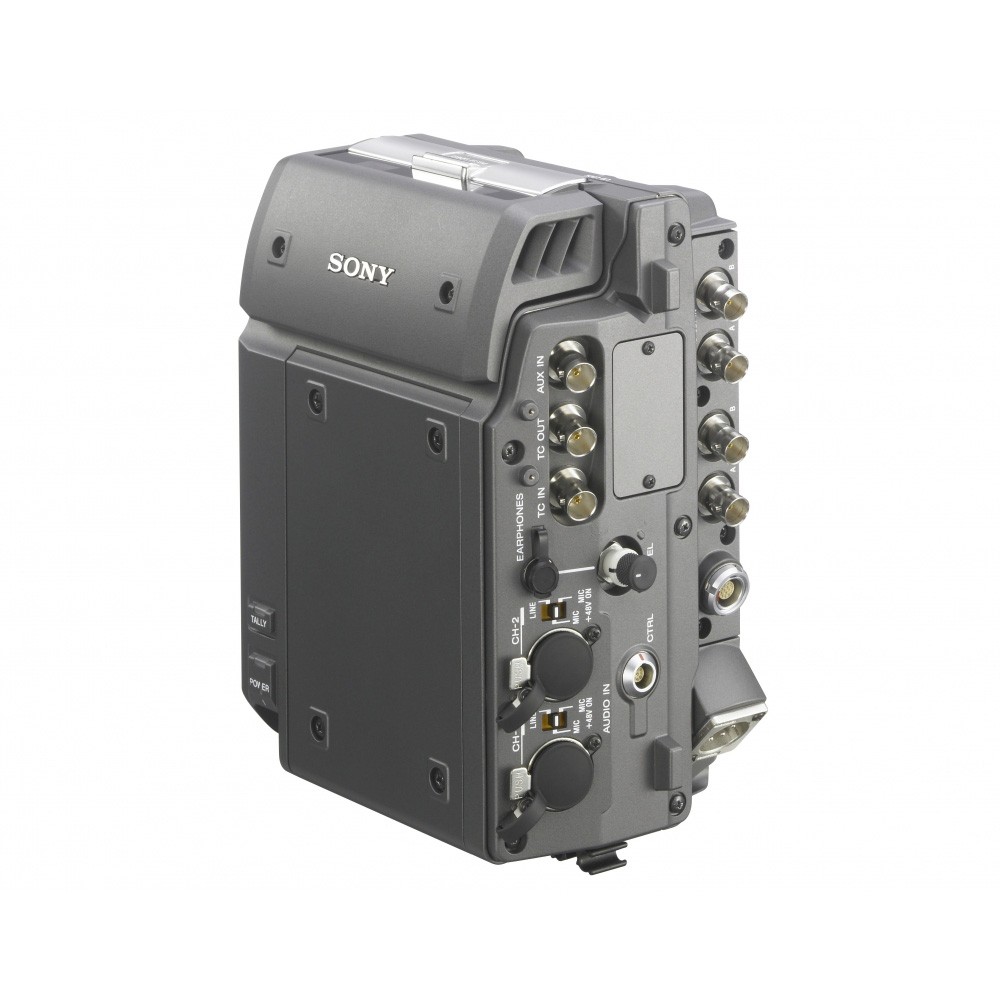

Sony SR-R1/0 Portable Memory Recorder

The SR-R1 is a highly portable recording system compatible with any camera, camcorder, and other equipment with an HD-SDI interface, including the PMW-F3, F35 and SRW-9000PL. Dual-link HD-SDI/3G-SDI is supported to provide stunning recording capabilities including 1080 50P/60P and RGB 4:4:4 recording. This system also offers a dual-stream recording capability, which is useful for 3D stereoscopic image capturing. SR-Lite (220 Mbps) and SR-SQ (440 Mbps) are supported as standard; SR-HQ (880 Mbps) and uncompressed recording are supported as an option.

The SR-R1 records on to SR-MC Series SRMemory media. The SR-MC Series SRMemory Cards are revolutionary memory media for the most demanding cinematography, live studio and post production applications, including 3D. The SR-MC Series feature huge transfer speeds of up to 5 Gbps and massive data capacity.

• SRMemory Recording
The SR-R1 records on to SR-MC SRMemory Cards, offering massive data capacity and huge sustained transfer rates. SRMemory is unique with its combination of capacity, sustained data throughput, security and portability. It opens up completely new ways for creatives to work.

SRMemory Cards are available in capacities of 256 GB, 512 GB and 1 TB, combining massive storage capacity with unrivalled levels of data security. The cards can record and replay multiple streams simultaneously and support data rates that can handle up to 4K.

SRMemory Cards offer huge transfer speeds - up to 5 Gbps for faster transfer of data in post production and for ultra-fast cloning of data on-set or at a live event. It is possible to record multiple camera streams on to a single card at a live event.

• HDCAM SR Recording and Replay
The SR-R1 records the same picture quality that has made HDCAM SR the worldwide reference for ultimate quality. SR-Lite (220 Mbps) and SR-SQ (440 Mbps) are supported as standard; SR-HQ (880 Mbps) and uncompressed recording are supported as an option with the SR-R301.

• Uncompressed DPX Recording Option
With the SRK-R311 option, the SR-R1 records uncompressed Native DPX file format for a wide range of applications.

• 3D and 2D 4:2:2 and RGB 4:4:4 Recording
The SR-R1 records 4:2:2 2D and 3D as standard, with 3D stereoscopic (dual-stream) mode. Up to 30P RGB 4:4:4 dual stream is an option. The recorder has a dual HD-SDI / 3G-SDI interface and, with the SRK-R301 option, dual 3G-SDI for an RGB 3D rig.

• Multiple Frame Rate Recordings
The SR-R1 is able to record multiple frame rates working with the PMW-F3 Camera – 17 to 60 FPS in 4:2:2, 17 to 30 FPS in RGB.

• Frame Accurate Recording with SxS Card and SRMemory simultaneously
Operating with the PMW-F3 Camera, the SR-R1 is able to make frame accurate recordings on both the SxS Card and SR-MC SRMemory Card.

• 16 Channels 24-bit Uncompressed Audio
• RS-422 Remote Control
• Timecode In/Out
• Records RGB S-Log from F35, SRW-9000PL and PMW-F3

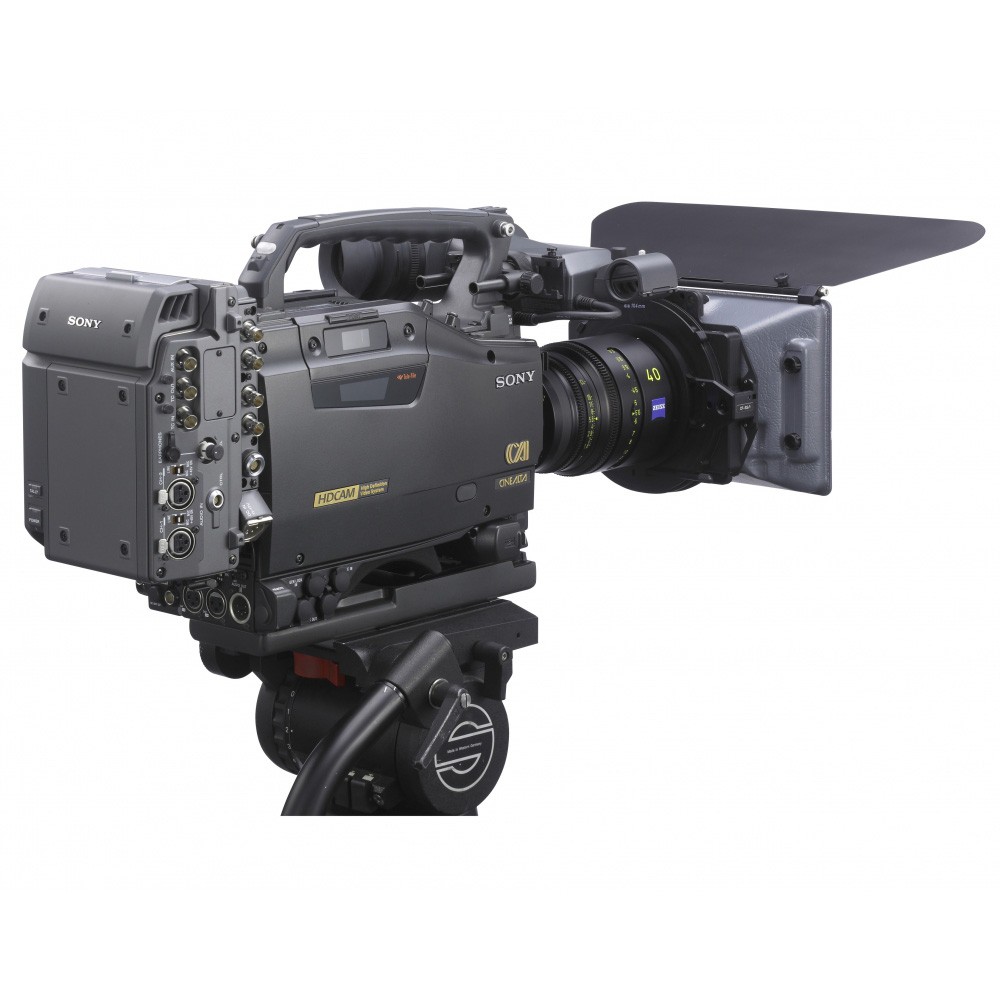

• Dockable style operation with Sony camcorders (via optional adaptor)
• DC operation and control panel
