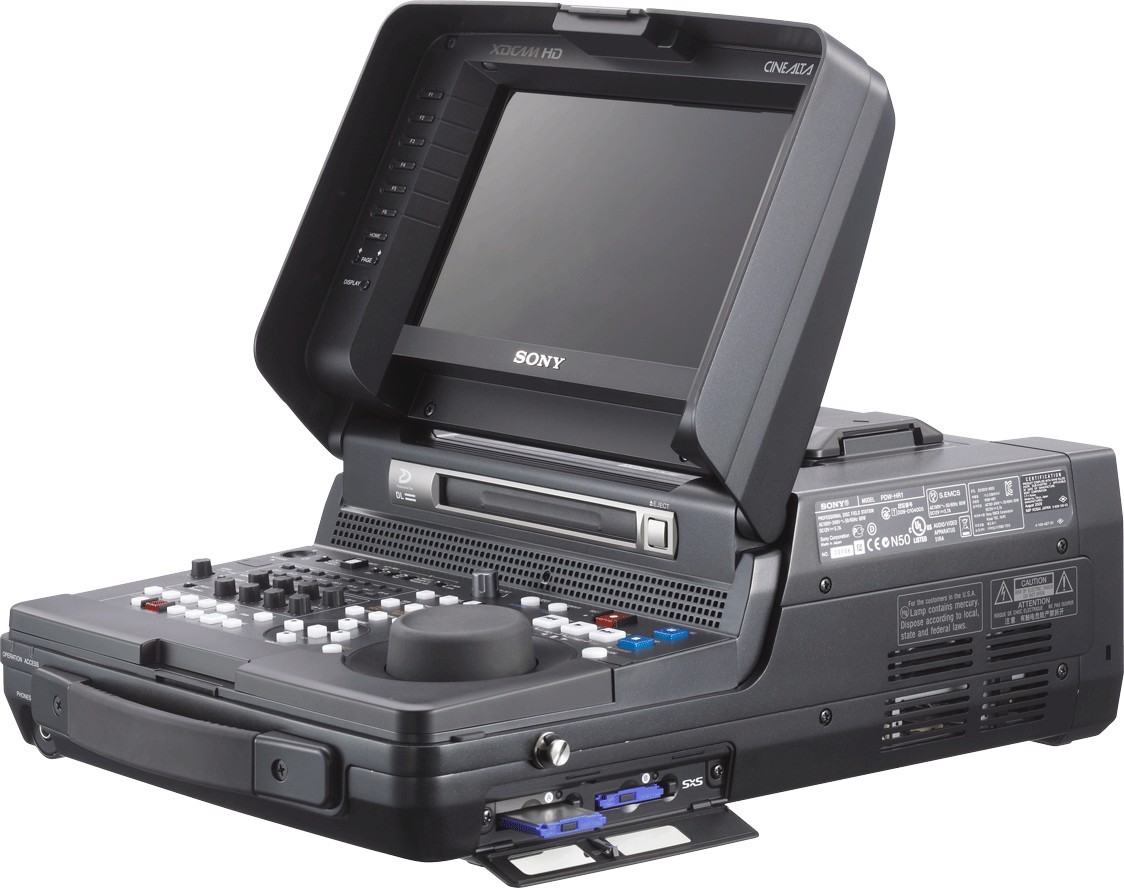

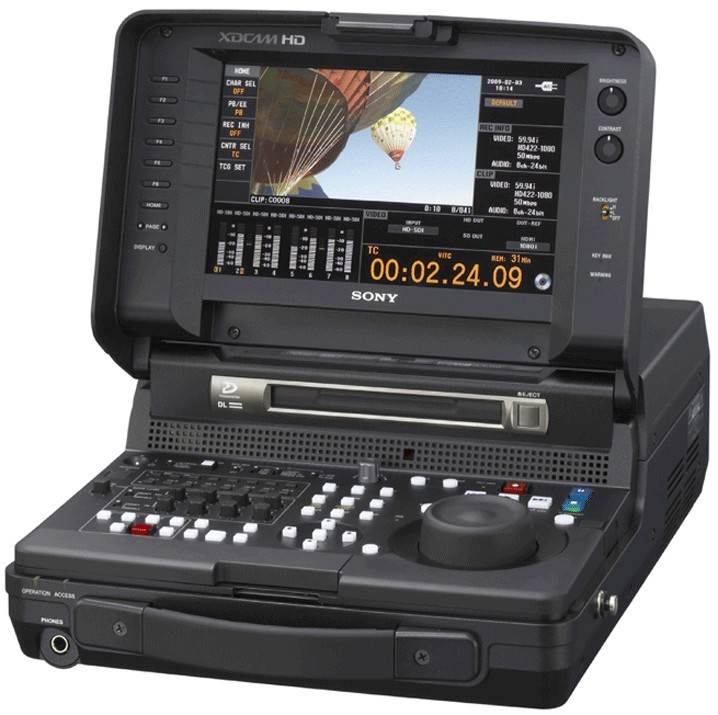

Sony disc field station PDW-HR1
XDCAM HD422 Professional Disc field station. (Mfr # PDW-HR1)
The newly developed PDW-HR1 XDCAM HD422 Field Station further enhances the operational capability of this series. The PDW-HR1 packs a large number of functions into its compact yet robust body. With a large 9-inch WVGA LCD, material can be checked on the spot and a wide variety of GUIs offers superb operational efficiency.
It provides multi-format recording capability as standard, including a frame rate of 23.98P in 1080 mode and SD recording. A wide range of signal interfaces, including baseband video (composite, HD/SD-SDI), Gigabit Ethernet, MPEG TS**, DVB-ASI**, and HDMI are also provided. An FTP client capability*** allows the PDW-HR1 to transfer files via its Ethernet connection without the need for a PC.
** Requires optional PDBK-202 board.
*** Requires a software upgrade
Note:
The PDW-HR1/MK1, is the PDW-HR1 mobile deck with the PDBK-MK1 SxS Card Option pre-installed.
| WEIGHT | 7.4 kg (16 lb 5 oz) |
|---|---|
| DIMENSIONS (WXHXD) | 300 x 129 x 400 mm (11 7/8 x 5 1/8 x 15 3/4 inches) |
| HUMIDITY | 20 to 90% (relative humidity) |
| STORAGE TEMPERATURE | -20 to +60 |
| OPERATING TEMPERATURE | -5 to +45 |
| POWER CONSUMPTION | AC: 65 W, DC: 55 W |
| POWER REQUIREMENT | AC 100 to 240V, 50/60 Hz, DC +12V, Battery |
• Standard Manufacturer's Warranty
• XDCAM Application Software CD-ROM
• Installation Manual
• Operation Manual
