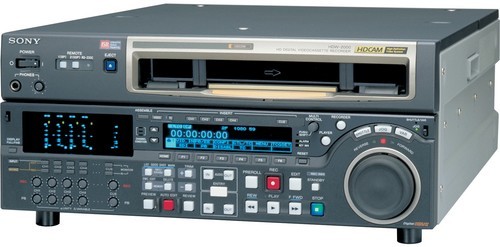

Sony HDW-M2000P/20
HDCAM video tape recorder with CineAlta record feature and multi-format playback
A recent enhancement to the HDW-M2000P HDCAM VTR has added CineAlta 24P recording for the first time. This enhanced model, the HDW-M2000P/20, operates at the frame rates used for prestige and mainstream content creation and distribution. It offers HDCAM recording and playback at 1080/50i, 1080/59.94i, 1080/25P, 1080/29.97P, 1080/23.98P and 1080/24P.
The HDW-M2000P/20 is ideal as part of an end-to-end HDCAM production chain. It also makes business sense even when post production and programme distribution remains at 625/50 standard definition. An inbuilt HD to SD downconverter provides a standard definition output from your high quality HDCAM original recordings. Compatible replay of Betacam, Betacam SP, Betacam SX, MPEG IMX and Digital Betacam tapes also helps smooth transition to the world of high definition.
| WEIGHT | Approx. 23 kg |
|---|---|
| AUDIO INPUT | Analogue audio: 5 x XLR 3-pin (CH 1 to 4 and CUE) Digital audio (AES/EBU): 2 x BNC (CH1/2 and CH3/4) Time Code: 1 x XLR 3-pin |
| DIMENSIONS (WXHXD) | 427 mm x 174 mm x 544 mm |
| HUMIDITY | 25% to 90% (relative humidity) |
| STORAGE TEMPERATURE | -20C to +60C (-4F to +140F) |
| OPERATING TEMPERATURE | +5C to +40C (+41F to +104F) |
| POWER CONSUMPTION | 220 W |
| AUDIO OUTPUT | Analogue audio: 5 x XLR 3-pin (CH 1 to 4 and CUE) Digital audio (AES/EBU): 4 x BNC (CH1/2, CH3/4, CH5/6 and CH7/8) Time Code: 1 x XLR 3-pin Monitor output: 2 x XLR 3-pin |
| VIDEO OUTPUT | Analogue composite / SDI / HD-SDI: 3 x BNC (one with character display) Analogue component: 3 x BNC (Y, R-Y, B-Y) SDTI (with optional [br] HKDW-102 installed): 2 x BNC |
| POWER REQUIREMENT | AC 100 V to 240 V, 50/60 Hz |
| VIDEO INPUT | Analogue reference: 1 x BNC with loop through HD-SDI: 1 x BNC (SMPTE 292M) 1.485Gbps SDTI (with optional [br] HKDW-102 installed)[br]: 1 x BNC (SMPTE 305M) 270Mbps |
| RECORDING FORMAT(S) | HDCAM (1080/50i, 59.94i, 25P, 29.97P, 23.98P, 24P) |
