New flexibility, new features, new opportunities

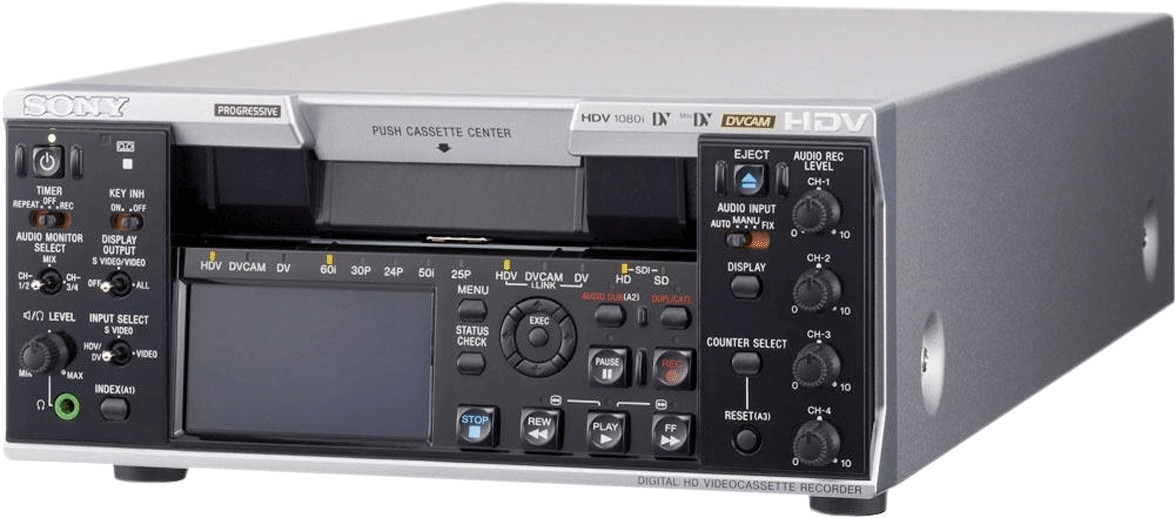

The HVR-M35E is the flagship of our compact HDV VTR range with unrivalled production flexibility due to its support for a huge range of HDV/DVCAM/DV formats - making it ideal for inclusion in any workflow based on these formats. Whatever your requirements today or tomorrow, the HVR-M35E is designed to be your perfect partner.
A key feature of the HVR-M35E is its compatibility with HDV native progressive recording on the new HVR-Z7E and HVR-S270E camcorders. It also supports playback of 720P HDV material and provides an HD/SD-SDI output with embedded audio and TC data. A high resolution LCD screen in the front panel provides for easy monitoring whatever your production set-up.
The HVR-M35E is the ultimate in workflow flexibility for both HDV and DVCAM users.
As with all HDV products, the HVR-M35E has the added benefit of 2 year Silver Support warranty - providing additional piece of mind.
• HD/SD-SDI Output
• Multi-format Playback/Recording Capability
- HDV1080i : 60i/50i/24p/30p/25p
- DVCAM/DV: 60i/50i
• Dual-size Cassette Mechanism
• Four Channel Audio Data Playback
• Down-conversion Capabilities
• 50/60Hz Switchable
• HDV/DV IN TC
• 2.7-inch LCD Monitor
• Duplicate Plus
• Edge Crop Adjust
• Custom Repeat
• Time code settings
• Assign Buttons
Benefits:
• Unique flexibility (including new HDV Progressive modes)
• Flexible Inputs and Outputs
• An affordable way to enjoy High Definition
• Watch as you work
• Easy integration with the way you already work
• A comprehensive support service
WEIGHT | Approx. 9 lb 12 oz (4.4 kg) |
---|---|
AUDIO INPUT | RCA pin x 4ch |
DIMENSIONS (WXHXD) | Approx. 212 x 88 x 390.3mm (8 3/8 x 3 1/2 x 15 3/8 inch) |
STORAGE TEMPERATURE | -4 to 140 |
OPERATING TEMPERATURE | 41 to 104 |
POWER CONSUMPTION | 16 W (playback mode with LCD monitor on) |
AUDIO OUTPUT | XLR 3pin x 4ch |
VIDEO OUTPUT | BNCx1 / BNCx1 |
POWER REQUIREMENT | AC 120 V, 60 Hz |
VIDEO INPUT | BNCx1 / BNCx1 |
RECORDING FORMAT(S) | HDV: HDV1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p DVCAM/DV SP: DVCAM,DV SP 480/60i (NTSC), 576/50i (PAL) |
• Standard Manufacturer's Warranty
• Power cord (1)
• AA batteries (2)
• Cleaning cassette (1)
• Operating instructions (1)
• Remote Commander Unit (1)
