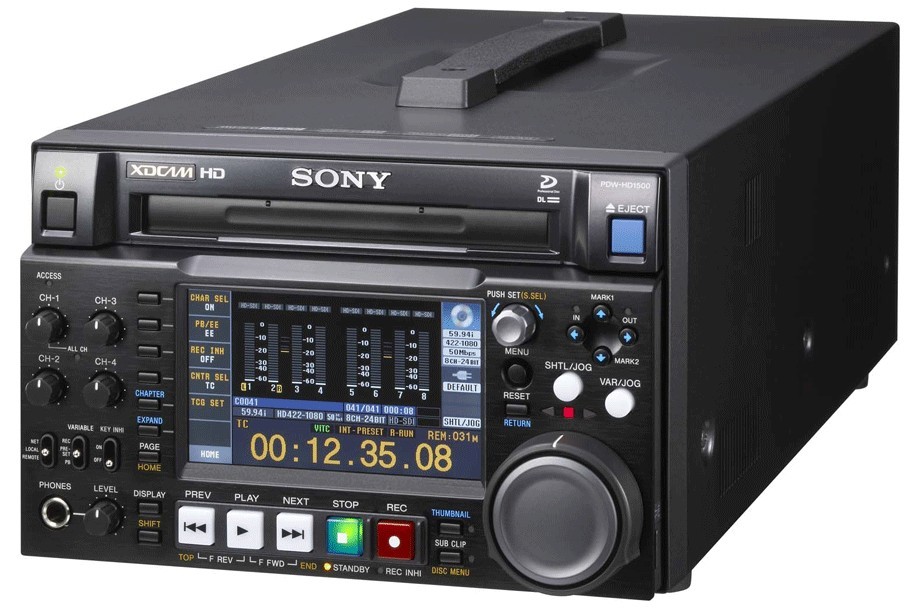

Sony PDW-HD1500

XDCAM HD422 Optical disc Recorder. (Mfr # PDW-HD1500/1)

The PDW-HD1500 will record and replay XDCAM HD 50 Mb/s 4:2:2 data onto 50 GB Dual-layer Professional Disc. With interfaces including i.LINK and Ethernet, the PDW-HD1500 can operate at the heart of small or large scale file-based networked systems. VTR-like JOG/shuttle operation and video interfaces including HD-SDI and SD-SDI also makes the PDW-HD1500 ideal for operation in more traditional vide-based installations.

The PDW-HD1500 has been designed to increase the appeal of XDCAM HD for high-end applications such as drama, documentary and natural history and for mainstream entertainment programmes that required a prestige quality look.

File-based acquisition onto Professional Disc, with thumbnail and proxy operation will also make the PDW-HDW-1500 ideal for networked applications where speed of production is a critical.

The PDW-HD1500 will be the most highly specified recorder within the XDCAM HD line up. The main features announced at IBC 2007 are as follows:
• High definition recording using MPEG-2 422P@HL compression at 50Mb/s data rate
• Support for existing XDCAM HD and XDCAM SD formats
• 8 channels of digital audio
• Dual-layer Disc (50GB) and Single-layer Disc (23.3GB) support
• Dual optical pick-up for higher speed file transfer
• 4.3-inch colour LCD
• VTR-like JOG/SHUTTLE operation
• TBC control (via front panel and remote)
• Compact and lightweight at 6.3kg and half-rack width
• AC, DC or battery powered
• Built-in up/down converter and 1080/720 cross converter
• HD up-conversion from SDI input (recording)
• HD/SD conversion and cross conversion output between 1080 and 720 (playback)
• Ethernet interface (100Base-T)
• i.LINK interface

WEIGHT Approx. 6.5 kg (14 lb 5 oz)
DIMENSIONS (WXHXD) 210 x 132 x 396 mm (8 3/8 x 5 1/4 x 15 5/8 inches)
HUMIDITY 25 to 90% (relative humidity)
STORAGE TEMPERATURE -20 to +60
OPERATING TEMPERATURE +5 to 40
POWER CONSUMPTION AC: 80 W, DC: 65 W, SAVEMODE(DC): 55 W
POWER REQUIREMENT 100 V to 240 V AC, 50/60 Hz 12 V DC

• Standard Manufacturer's Warranty
• XDCAM Application Software CD-ROM
• Installation Manual
• Operation Manual
