Sony condenser microphone ECM-88B

Electret Condenser Lavalier Microphone

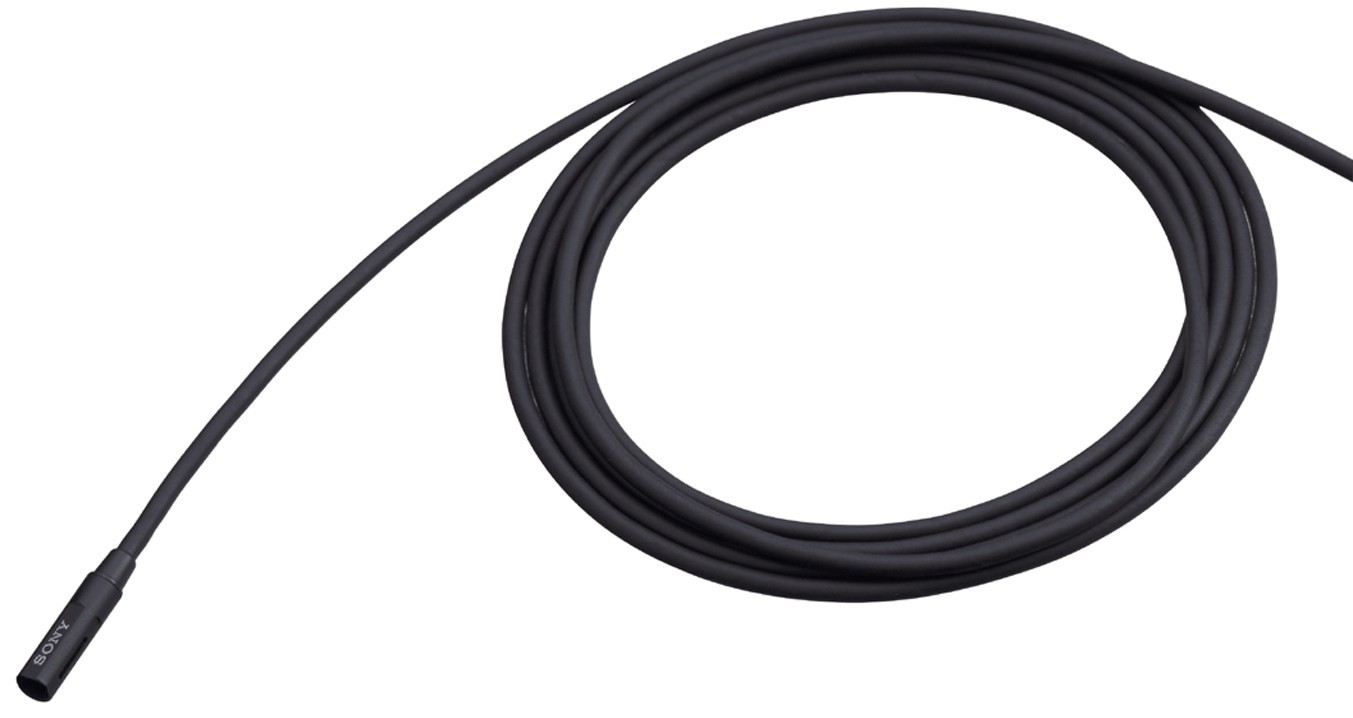

The ECM-88B is a miniature omni-directional electret-condenser microphone ideally suited for quality-critical applications in broadcasting, theater and field production. This lavalier mic achieves high-sensitivity and has a flat-and-wide frequency response. The ECM-88B offers extremely low handling noise with unparalleled high sound quality. The ECM-88B comes with a DC-78 power supply and it has a cable length of 8.2 feet. This model is best suited for wired lav mic applications. However; with the DC-78 power supply disconnected, the ECM-88B's 4-pin (SMC9-4P) connector can also be used with Sony WRT-822B and WRT-8B wireless mic body-pack transmitters.

• Omni-directional dual-diaphragm lavallier condenser microphone with AA battery power supply and XLR connector
• Low handling noise - Moving around while wearing a lavalier mic can often cause lav mic cables to rub against a users clothing. In many existing lavalier mic designs, this (frequently unavoidable) body movement can cause loud undesirable handling noise. The ECM-88B radically reduces this handling noise making it ideal for use in applications where users are moving.
• Flat-and-wide frequency response - Many lavalier microphones are specifically optimized for speech reproduction and have limited use in other applications. The ECM-88B extends it's frequency response beyond the range of speech reproduction, and can be used for many high quality sound applications requiring a miniature mic that can easily be concealed.

CORD / CABLE LENGTH 8.2 feet
CONNECTORS SMC9-4P 4-pin on microphone. Also supplied with DC-78 Power Supply Unit for XLR output connection.
WEIGHT 0.7 oz (Mic Only)
DIRECTIVITY Omni-directional
FREQUENCY RESPONSE 20 Hz to 20 kHz
SENSITIVITY -52 dB +/- 2 dB (when used with DC-78), -39.0 dB (11.2 mV) for BC.
DYNAMIC RANGE 99 dB or more
SOUND PRESSURE LEVEL 125 dB SPL
DIMENSIONS 5/32 x 11/16 inch (Microphone head)
CAPSULE TYPE Electret Condenser
POWER REQUIREMENT ECM-88B 4-pin connector: DC 1.1 to 10.0 V. ECM-88B with DC-78 Power Supply connected: Two-way powering, battery operation (AA-size battery) or external DC operation (12 to 48 V)
SIGNAL-TO-NOISE RATIO 68 dB or more

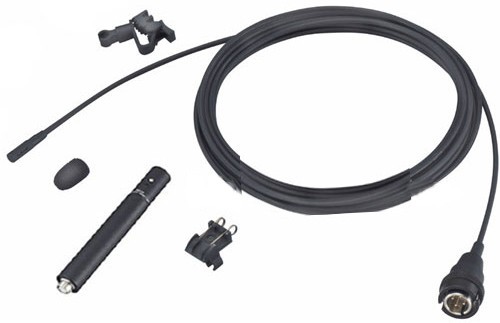

• Standard Manufacturer's Warranty
• S.H. tie clip (x 1)
• S.V. tie clip (x 1)
• D.H. tie clip (x 1)
• U. windscreen (x 1)
• Operating instructions (x 1)
