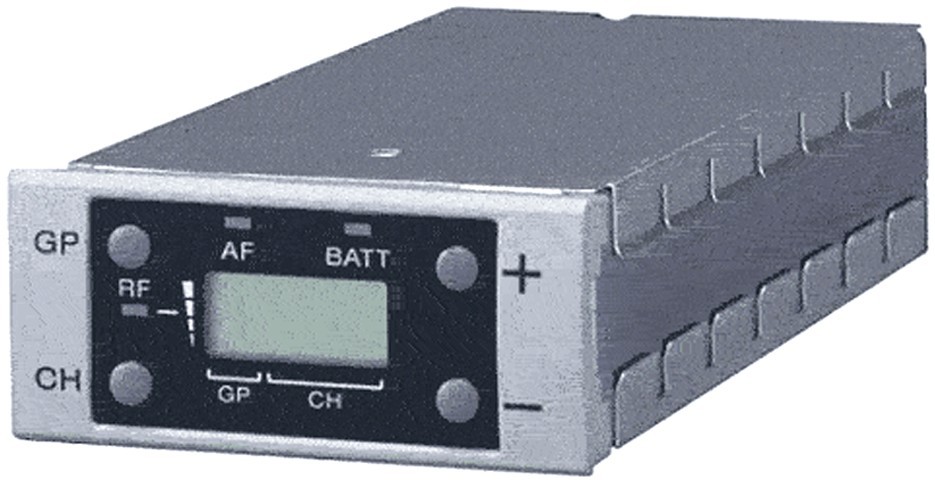

Sony receiver modules WRU-806B/38

Mod. Kit for WRU-806B/ to TV ch. 38-40.

Effective communication requires clean and intelligible audio, free from drop-outs and bursts of noise. The Freedom series WRU-806B series receiver modules were designed as professional receivers, while focusing on the
needs of a business operation.

Maximum channels in minimum space, with uncompromising quality and reliability, are offered when WRU-806B series modules are housed within the MB-806A rack mounting frame. The modules can also be inserted into a powered audio/video mixer such as the SRP-X351P or SRP-X700P. Also known as: WRU806B38, WRU 806B 38.

Key features:

• For use with various frames or hosts

Dedicated plug-in diversity receiver module for MB-806A rack mounting frame (or WRR-801A) and SRP-X351P audio mixer/video selector.

• Auto channel assignment

Auto channel assignment for extra receiver modules with self-detection and skip of unusable channels

• Pre-programmed, multi-channel groups

Pre-programmed groups stored in CPU for intermodulation free operation of multi-channel systems

• Easy-to-read LCD display

Easy-to-read LCD display showing the selected channel and IM free group, frequency, RF level, AF level and battery level status of the associated transmitter.

• Advanced filtering of RF signal

Use of SAW filters for exceptional rejection of unwanted signals while maintaining the best possible signal integrity of the wanted signal.

• Diversity Reception

Space diversity reception for dependable RF reception

• Large number of pre-programmed frequencies

Up to 320 spot frequencies are available in one TV channel, with a maximum of 560 spot frequencies available depending upon the version.




AUDIO LEVEL -28 dBu (
RECEIVING FREQUENCIES CE (62): 798 - 822MHz, CE (69): 838 -862MHz
OSCILLATOR TYPE Crystal controlled PLL synthesiser
WEIGHT Approx. 160g
SENSITIVITY 60 dB or more (at 250 kHz detuned)
DIMENSIONS (WXHXD) 57 x 26 x 122
STORAGE TEMPERATURE -20
OPERATING TEMPERATURE 0
FREQUENCY RANGE 100 - 15 000 kHz
TOTAL HARMONIC DISTORTION (THD) 1% or less (
POWER CONSUMPTION Approx. 600 mA
AUDIO OUTPUT Multi-connector (10-pin)
SIGNAL-TO-NOISE RATIO greater than 60 dB, RF input 60 dB




• Standard Manufacturer's Warranty
• Colour strip sheet
