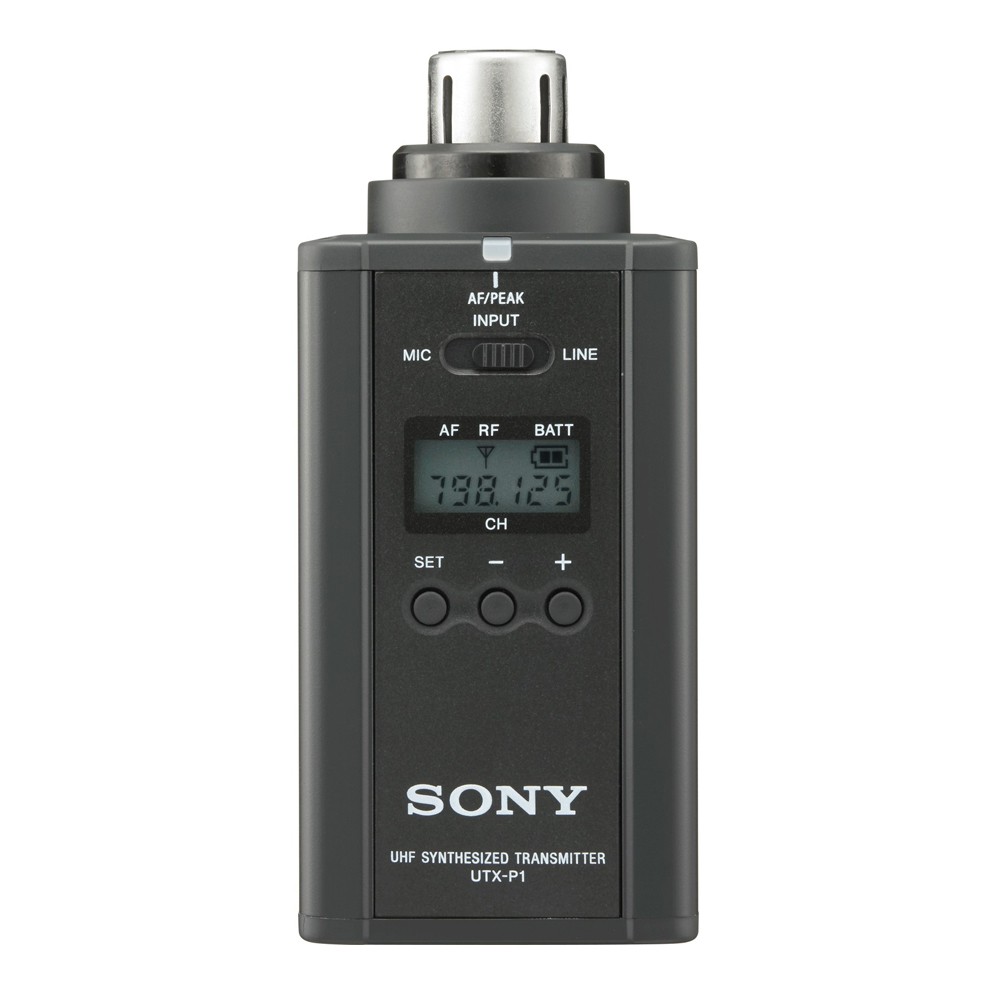

The UTX-P1 is a plug-on transmitter to convert a wired microphone into a wireless microphone.
• Plug-on transmitter designed for use with the UWP Series tuners
• Operates over a wide 24 MHz frequency band
• Converts a wired microphone to a wireless microphone via an XLR connector
• Compact and lightweight body provides balanced handling
• Attenuator function allows adjustment of the microphone-input level
• Durable connecting mechanism with a microphone for dependable operation
• 50 mW RF power output for stable and long-distance transmission
• MIC/LINE input level switchable
• A backlit LCD provides extensive information, including the operating channel number and frequency in MHz, attenuator level, audio-input status, RF-output status, transmitterbattery status, and accumulated operating time
• A LED indicator for audio-input status
• Approximately six hours of continuous operation with two AA-size alkaline (LR6) batteries
• Supplied with a soft case
Models
UTX-P1/62 - Operates over a wide 24 MHz frequency band within the range of 798 MHz to 822 MHz
UTX-P1/67 - Operates over a wide 24 MHz frequency band within the range of 838 MHz to 862 MHz
RF POWER OUTPUT | 50 mW |
---|---|
OSCILLATOR TYPE | Crystal-controlled PLL synthesizer |
WEIGHT | Approx. 185 g (6.5 oz) including batteries |
FREQUENCY RESPONSE | 50 Hz to 18 kHz (typical) |
BATTERY | Life: Approx. 6 hours with Sony AA-size alkaline (LR6) batteries at 25 |
AUDIO INPUT | Connector: XLR-3-11C type |
DIMENSIONS (WXHXD) | 44 x 99 x 36 mm (1 3/4 x 4 x 1 7/16 inches) |
ATTENUATION (PASSIVE) | Audio Adjustment Range: 0 to 21 dB (in 3 dB steps) |
SIGNAL LEVEL | Pilot Tone: 32 kHz |
PEAK DEVIATION | Reference: |
ANTENNA TYPE | Integral type |
POWER REQUIREMENT | DC 3.0 V (with two AA-size batteries) |
SIGNAL-TO-NOISE RATIO | 60 dB or more ( |
