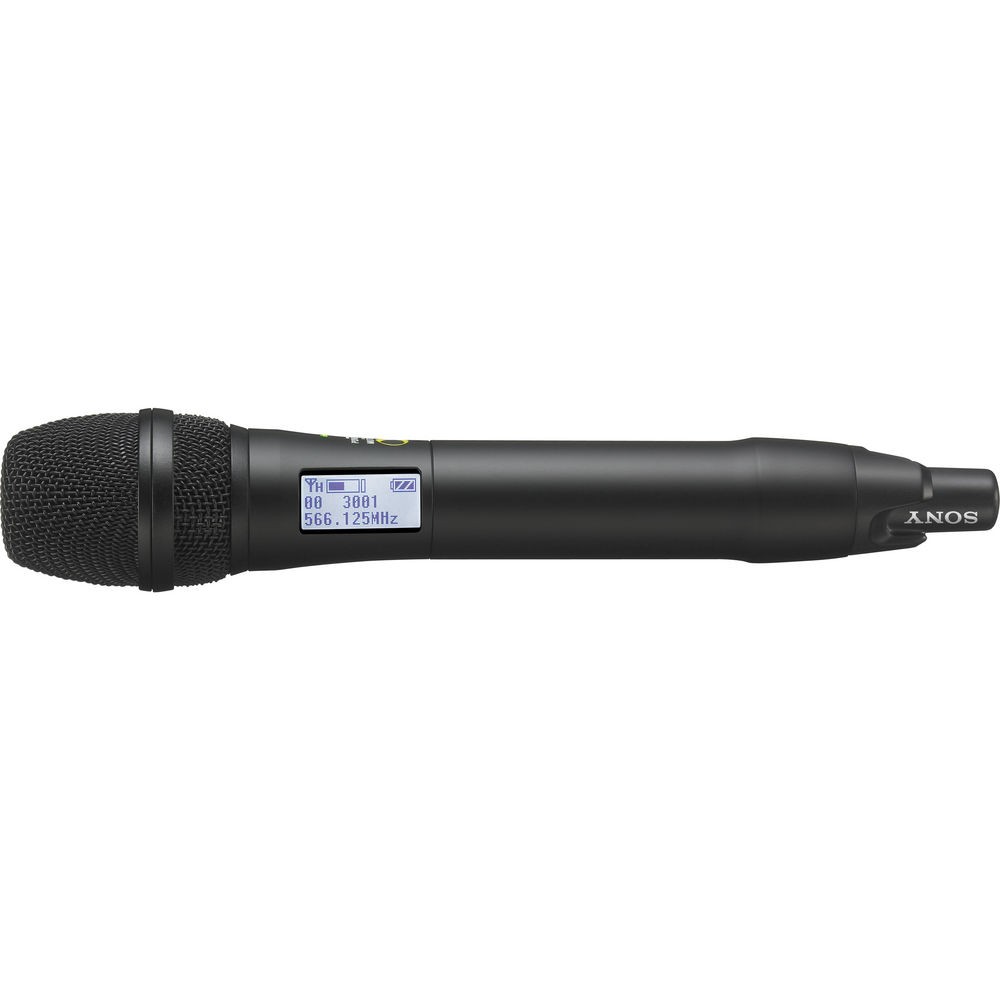

Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter
Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter is the digital audio processing for high quality sound for ENG / EFP productions. (MFR # UTX-M03)
The Sony UTX-M03 uni-directional handheld microphone forms part of a complete UWP-D audio system which is offering the sound quality of digital audio processing that combined with the reliability of analogue FM modulation. The UTX-M03 package provides wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from.
Sony's UTX-M03 user friendly features include automatic channel setting function. The microphone transmitter has the option to use interchangeable heads with over 40 different capsules from various manufacturers available. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.
Variants:
- Sony UTX-M03 Wireless Microphone Transmitter (UHF Channels 42/51: 638 to 698 MHz)
- Sony UTX-M03 Wireless Microphone Transmitter (UHF Channels 14/25: 470 to 542 MHz)
- Sony UTX-M03 Wireless Microphone Transmitter (UHF Channels 30/36 and 38/41: 566 to 608 and 614 to 638 MHz)
Key Features:
- UWP-D digital audio processing for high quality sound
- Fast and easy channel scan
- Automatic channel setting mode
- Wide frequency coverage
- True Diversity reception system
- Compatibility with Sony 800 and UWP Series analogue audio receivers
- Rechargeable batteries
- Robust metal body
- Variable output level on portable receiver
| WEIGHT | Approximately 10.4 oz (296 g) including batteries |
|---|---|
| TYPE | Type of Transmitter: Crystal-controlled UHF PLL synthesized handheld microphone transmitter |
| BATTERY | Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output |
| STORAGE TEMPERATURE | -20°C to +55°C -4°F to +131°F |
| OPERATING TEMPERATURE | 32 to 122°F (0 to 50°C) |
| ANTENNA TYPE | 1/4 wave length wire (internal) |
| DIMENSIONS | Φ47.8 x 259 mm (excluding the anntenas) (W x H x D) |
| POWER REQUIREMENT | 3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B) |
| MASS | Approx. 296 g (including batteries) |
| DISPLAY | LCD |
