Sony UWP-D16 Wireless Microphone Package
Wireless microphone package with XLR plug-on transmitter. (Mfr # UWP-D16)

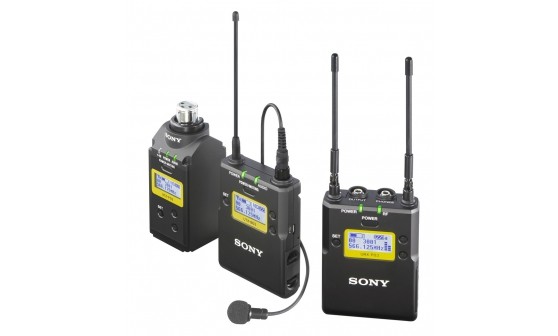

Sony's UWP-D16 belt-pack wireless microphone package offers a complete UWP-D audio system and offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. In this package includes the UTX-B03 belt-pack transmitter, UTX-P03 XLR plug-on transmitter (48V) and URX-P03 portable receiver and also included a high quality omni-directional lavalier microphone and a range of accessories including windscreen, microphone holder clip, belt-clip and shoe-mount adaptor.
Key Features:
- UWP-D digital audio processing for high quality sound
- Large display and small size receiver
- Fast and easy channel scan
- Automatic channel setting mode
- Wide frequency coverage
- True Diversity reception system
- Compatibility with Sony 800 and UWP Series analogue audio receivers
- Headphone output for monitoring
- USB for external power supply or charging batteries
- Robust metal body
- Line Input available
- Variable output level on portable receiver
Available Models:
UWP-D16/K21 - 470.025 MHz to 697.875 MHz
UWP-D16/K33 - 566.025 MHz to 633.000 MHz
UWP-D16/K42 - 638.025 MHz to 694.000 MHz
FREQUENCY RESPONSE | URX-P03, 23Hz to 18kHz (typical) |
---|---|
STORAGE TEMPERATURE | -20°C to +55°C -4°F to +131°F |
OPERATING TEMPERATURE | 0°C to 50°C 32°F to 122°F |
DIMENSIONS | URX-P03, 63 x 82 x 23.8mm (excluding the anntenas) (W x H x D) - UTX-B03, 63 x 82 x 20 mm (excluding the anntenas) (W x H x D) - UTX-P03, 42 x 42 x 102 mm (W x H x D) |
BATTERY OPERATING TIME | Approx. six hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F) |
POWER REQUIREMENT | DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0V (via USB micro-B) |
MASS | URX-P03, Approx. 176 g (including batteries) - UTX-B03, Approx. 149 g (including batteries) - UTX-P03, Approx. 197 g (including batteries) |
- UTX-B03 belt-pack transmitter, UTX-P03 XLR plug-on transmitter, URX-P03 portable receiver & omni-directional lavalier microphone (1)
- Windscreen (1),
- Microphone holder clip (1),
- Belt clip (2),
- Shoe-mount adaptor (1),
- 3-pole locking mini plug/XLR-3-12C (male) (1),
- 3-pole locking mini plug/Stereo mini plug (1),
- CD-ROM (1)
- Standard Manufacturer's Warranty
- (including operating instructions and wireless microphone frequency list),
- soft case (1).
