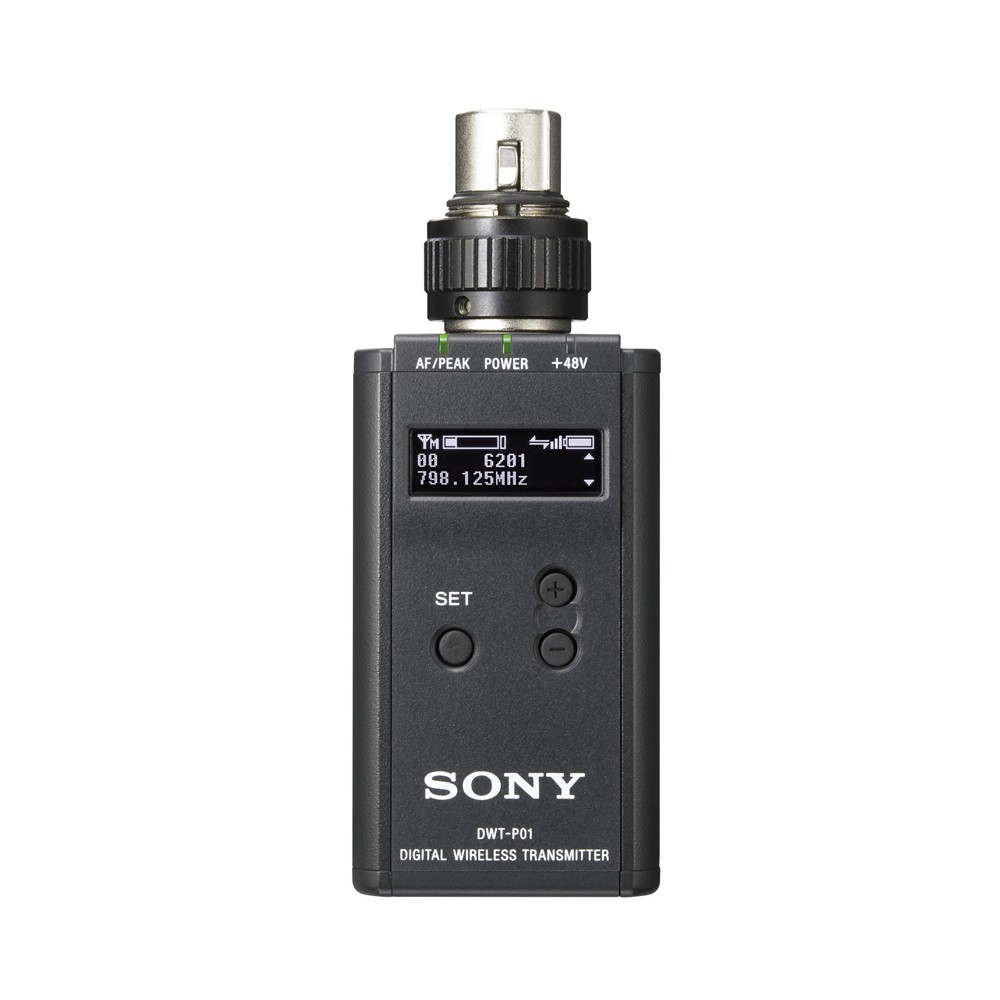

Sony wireless transmitter DWT-P01 6267, E33, E42, E51

Digital wireless microphone plug-on transmitter

This DWT-P01 wireless microphone system offers high-quality full-digital operation and enhanced system performance - a perfect match for high-quality ENG/EFP applications.The system, which consists of the DWT-B01 beltpack transmitter, DWT-P01 XLR plug-on transmitter and the DWR-S01D dual portable receiver, delivers excellent-quality wireless transmission of 24-bit/48-kHz digital audio. Due to the Sony original codec, it realises low-latency, secure, and reliable operation. In addition, the system allows for an increase of up to 60% in the number of simultaneous multi-channel operations compared to conventional analogue systems, which gives users enhanced system flexibility.
With its excellent audio quality and operational flexibility, the Sony digital wireless microphone system opens up a whole new world of audio applications.

Key Features

  • Low noise head amplifier achieves -128dBu noise floor.
  • 48dB at 3dB steps audio attenuation supported
  • Accepts a variety of AA type battery, such as Alkaline, Lithium, NiMH etc.
  • Versatile display using organic LED display
  • Can operate over a 72Mhz frequency band. (8 x TV Channels).

Models

DWT-P01/E33 566MHz - 630MHz (covering TV Channels 33-40) - $ 1376
DWT-P01/E42 638MHz - 710MHz (covering TV Channels 42-50) - $ 1376
DWT-P01/E51 710MHz - 782MHz (covering TV Channels 51-59) - $ 1376
DWT-P01/6267 - Digital Wireless Plug On Transmitter - $ 1376




RF POWER OUTPUT 1 mW/10 mW/50 mW (e.r.p.) selectable
CONNECTORS Input: XLR-3-11C (female) (x1)
INPUT IMPEDANCE 4 k/ohms or more
OSCILLATOR TYPE Crystal controlled PLL synthesizer
WEIGHT Approx. 245 g (9 oz) including batteries
BATTERY Life: Approx. 3.5 hours at 10 mW output (at 25
DIMENSIONS (WXHXD) Approx. 44 x 78 x 44 mm (1 3/4 x 3 1/8 x 3/4 inches) excluding projection
ATTENUATION (PASSIVE) Audio Adjustment Range (pad): 0 to 48 dB (3-dB steps, MIC input mode only)
TOTAL DELAY 1.5 ms (Audio)
INPUT LEVEL MIC -22 dBu (with 0 dB attenuator) LINE +24 dBu (Max.)
OCCUPIED BANDWIDTH 192 kHz (RF)
CHANNEL SPACING 25 kHz
FREQUENCY RANGE Carrier: 798 to 822 MHz (TV 62 to 64 channels) 838 to 862 MHz (TV 67 to 69 channels)
VOLTAGE Operating: DC 3.0 V, (two LR6 AA-size alkaline batteries)




• Standard Manufacturer's Warranty
• Soft Case
• Spare Battery Case
• USB adapter cable
• USB cable
• Scribble sheet
• Operating instructions
