UNI-PBU1

Rugged enclosure outdoor power supply

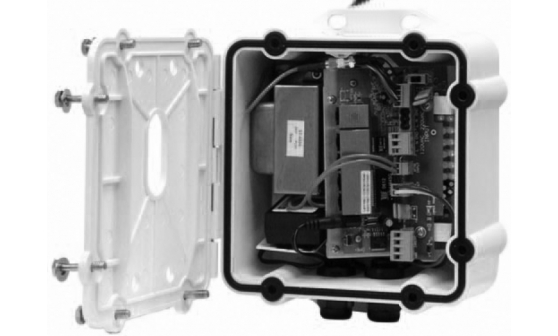

The Sony UNI-PBU1 Power Block Unit Case is an outdoor power supply that is enclosed in a rugged, IP66-rated, vandal-resistant aluminium enclosure. It is designed for use with the UNI-WMB1 Wall Mount and the UNI-MDB1, UNI-MDB2, and UNI-MDB3 Pendant Adapter Kits, which can be directly mounted to the Power Block's hinged door. Using the clips included in the pack, you can also mount the Block Unit Case to the UNI-PMA1 Pole Mount Adapter or the UNI-CMA1 Corner Mount Adapter. The IP66 and NEMA 4X rated unit is protected against the ingress of dust, wind, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. This unit comes standard with an 84 VA power supply, designed for either 220 or 120 VAC input with 24 VAC output. In addition, it provides 52 W power to the heater/blower and 32 W power to the camera.

• Rugged vandal-resistant construction

  Cast aluminium outdoor enclosure. IP66- and NEMA Type 4X-rating ensures protection against dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. Designed for direct conduit connections. UL-approved electrical device.
