UNI-BBB2

Connection Box with Wall/Pole Mount Adaptor

SONY

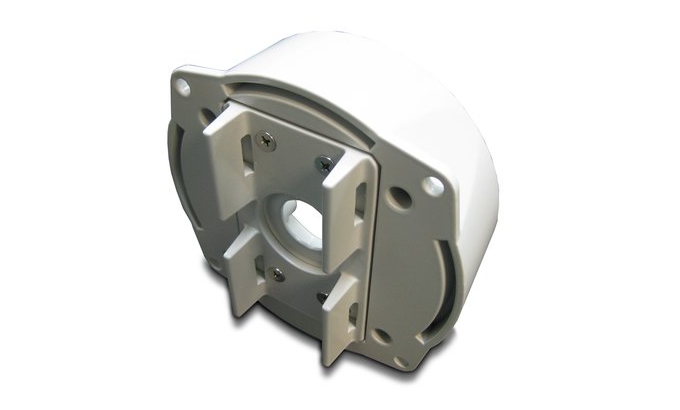

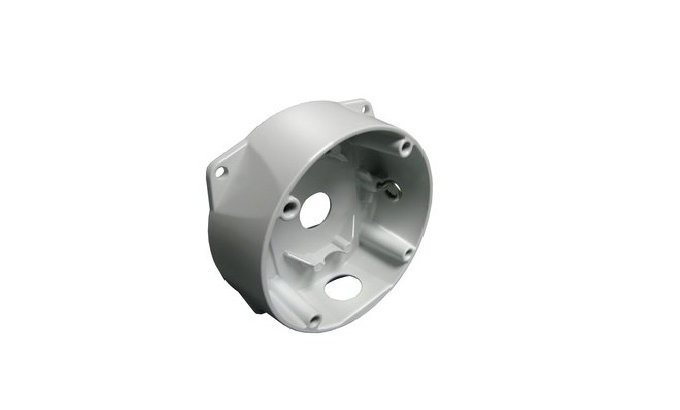

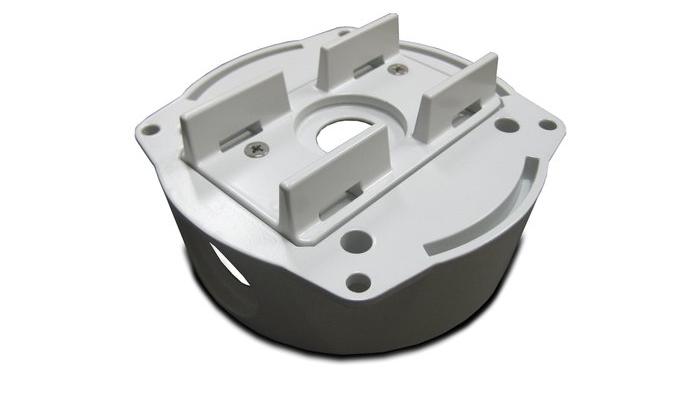

The UNI-BBB2 is a cast aluminum adapter that serves as an electrical connection box for use with the following Sony outdoor minidome cameras: SNC-DH160/SNC-DH180; SNC-DH260/SNC-DH280; SNC-EM602RC/SNC-EM632RC; SNC-VM602R/SNC-VM632R.

The connection box can be used for mounting onto a flat wall, or on a pole (3 to 6 inches diameter) using the adapter bracket and supplied stainless steel straps.

Two conduit holes are suitable for a ¾ inch (27mm) conduit fitting on the back and bottom of the adapter to facilitate wiring connections. Knockouts allow mating to a standard double gang electrical box.

Cast aluminium construction with powdercoat finish. Suitable for outdoor or indoor use. Mounting hardware for compatible cameras (as listed above) included.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Architecture / Engineering Specifications

Size (H x W x D) 3.32 x 7.29 x 7.28 inches (84.4 x 185.2 x 184.9 mm)
Body Construction Aluminum

Attributes

Environment Indoor / Outdoor
Mounting Style Pole / Wall Mount Adapter with electrical connection box

Shipping

Weight 2.95 lbs. (1.34 kg)
Dimensions 9 x 9 x 4.25 inches (22.8 x 22.8 x 10.8 cm)

Compatible Models

SNC-DH160 / SNC-DH180 720p HD, IR Vandal Resistant
SNC-DH260 / SNC-DH280 1080p HD, IR Vandal Resistant
SNC-EM602RC / SNC-EM632RC 720p/30fps HD, IR Ruggedized E series 1080p/30fps Full HD, IR Ruggedized E series
SNC-VM602R / SNC-VM632R 720p/60fps HD, IR Ruggedized V series; 1080p/60fps Full HD, IR Ruggedized V series
