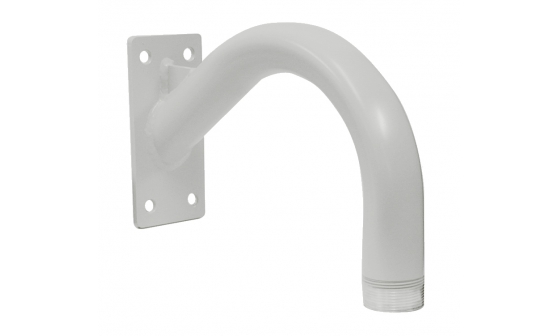

UNI-WMB4

Gooseneck Wall Mount Bracket

SONY

This Gooseneck Wall Mount Bracket is ideal for outdoor installation of Sony mini dome video security cameras.

The 1" pipe thread is compatible with UNI-MDPHM, UNI-MDPDH180, UNI-MDPH120, UNI-MDPX, and UNI-MDPVM772 pendant mount adaptor.

Standard wall fixing hole pattern is compatible with corner mount adaptor (UNI-CMA1), pole mount adaptor (UNI-PMA1) and outdoor power block case (UNI-PBU1). The pendant mount adaptor is needed when using the UNI-WMB4.

All aluminium construction. Light grey finish. Suitable for outdoor or indoor use.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Architecture / Engineering Specifications

Size (H x W x D) 6.4 x 9.8 x 3.3 inches (162 x 249 x 83 mm)
Weight 1.25 lbs. (.56 kg)
Body Construction Aluminum

Attributes

Environment Indoor / Outdoor
Mounting Style Wall Gooseneck
RoHS Yes
WEEE Yes

Shipping

Weight 4 lbs. (2 kg)
Dimensions 9 x 8 x 4 inches ( 229 x 203 x 102 mm)

Mounting Accessories

UNI-CMA1 Corner mount
UNI-PMA1 Pole mount
UNI-WMBB1 Wall / Pole mount

Compatible Pendant Shrouds

UNI-MDPHM Camera housing pendant mounting adapter
UNI-MDPDH180 Camera outdoor pendant mount adapter
UNI-MDPDH120 Camera housing pendant mounting adapter
UNI-MDPX Pendent Mount Adapter for x Series Mini Domes
