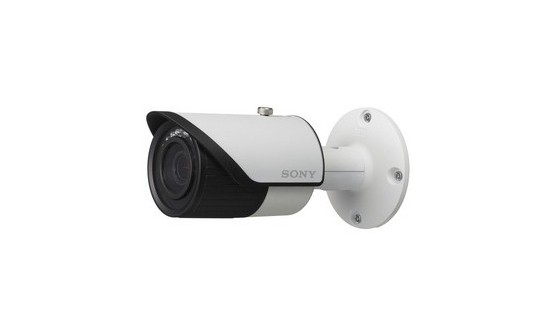

SSC-CB565R

SD High Resolution (700 line) fixed analogue outdoor camera with IR illuminators and IP66-rated housing

SONY

The SSC-CB565R's infrared illuminators, True Day/Night function and rugged design make it an ideal camera for outdoor applications, such as monitoring car parks, factories and office buildings, which require enhanced image capture at night.

Built-in infrared illuminators assist in capturing objects in the dark with an True Day/Night function automatically switching between day (colour) and night (monochrome) modes depending on lighting levels. The SSC-CB565R also has an IP66-rated waterproof and dust-tight design for robust and reliable outdoor surveillance performance.

Image acquisition is high resolution (700 horizontal TV lines in sharp mode) and high sensitivity, thanks to a 1/3-type "EXview HAD CCD II" sensor and "Effio-E" digital signal processor.



Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image device 1/3-type EXview HAD CCD II
Number of effective pixels (H x V) 570,000 pixels (976 x 582)
Signal system PAL standard
Horizontal resolution 700 TV lines (sharp mode)
S/N ratio More than 55 dB (AGC Off)
Minimum illumination Color: 0.06 lx, B/W: 0 lx (F1.2, 50 IRE)Color: 0.04 lx, B/W: 0 lx (F1.2, 30 IRE)
Video output VBS: 1.0 Vp-p
Synchronization Internal/AC line lock selectable
Gain control Auto (On/Off)
White balance ATW (2000K to 10000K), ATW-PRO (2500K to 6000K)
Lens type Built-in variable focal lens
Zoom ratio Optical 3.7x
Horizontal viewing angle 101.8 degrees to 27.4 degrees
Focal length f=2.8 mm to 10.5 mm
F number F1.2 (Wide), F2.7 (Tele)
Minimum object distance 300 mm (11 7/8 inches)

  • Capture images even in the darkest conditions

    Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – up to 30 m (98 feet) away.

  • Exceptionally detailed images

    The SSC-CB565R offers exceptionally high resolution (700 horizontal TV lines) image acquisition. A1/3-in type "EXview HAD CCD II" sensor and Sony's "Effio-E" digital signal processor deliver superbly clear and detailed images.

  • Maximised image quality in low lighting

    Remarkably high sensitivity (Colour: 0.06 lx, B/W: 0 lx, F1.2, 50IRE) maximises image quality under low-lighting conditions, making the camera eminently suitable for round-the-clock security applications.

  • Switching automatically into Night mode

    The True Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.

  • Waterproof and dust-tight for robust surveillance requirements

    The SSC-CB565R features an IP66-rated waterproof and dust-tight design for outdoor applications, or indoor where water ingress is a threat.

  • Flexible angle of view

    The SSC-CB565R's 3.7x variable focal length lens, with a focal length of 2.8 mm to 10.5 mm, and a horizontal angle of view of 101.8 ? to 27.4 ?, delivers an exceptionally flexible angle of view.
