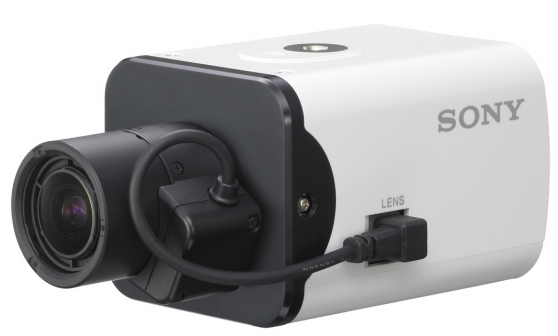

SSC-FB531

700 TV line fixed analogue camera with Super HAD II CCD sensor and DynaViewSX

SONY

The SSC-FB531 offers exceptional image quality under all lighting conditions – high-contrast, low-lighting, day and night – which makes it ideal for a wide range of security applications – retail, manufacturing, transport and many others – delivering the surveillance performance to keep your premises protected at all times and in all conditions.

It achieves this through a combination of advanced Sony technologies: DynaViewSX enables the camera to capture high-contrast scenes; a Super HAD II CCD sensor delivers a horizontal resolution of 700 TV lines (sharp mode) for sharp, detailed images and a minimum illumination of 0.08 lx (F1.2, 50 IRE) for high performance in low-lighting conditions; and the Electronic Day/Night function ensures that the camera performs optimally all day and all night.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Group heading

Image device 1/3-type Super HAD CCD II
Number of effective pixels (H x V) 570,000 pixels
(976 x 582)
Signal system PAL standard
Horizontal resolution 700 TV lines (sharp mode)
S/N ratio More than 55 dB (AGC Off)
Minimum illumination Colour: 0.08 lx, B/W: 0.05 lx (F1.2, 50 IRE)
Colour: 0.05 lx, B/W: 0.03 lx (F1.2, 30 IRE)
Dynamic range 75 dB (typical)
Video output VBS:1.0 Vp-p
Synchronization Internal / AC line lock selectable
Gain control Auto (OFF / Normal / Turbo) / Manual
White balance ATW / ATW-PRO / 3200K / 5600K / Manual
Lens type CS mount lens*

  • Superb performance in high-contrast scenes and in poor lighting conditions

    DynaViewSX technology allows the SSC-FB531 to capture high-contrast scenes and deliver clarity under less-than-ideal lighting conditions. This means that the SSC-FB531 is able to capture vital information that other cameras miss. DynaViewSX incorporates three sub-technologies – a high-speed double shutter providing images with incredibly wide dynamic ranges, iBLC compensating for exposure levels in dark scenes, and an advanced natural synthesiser minimising noise.

  • Exceptionally detailed images

    The SSC-FB531 offers exceptionally high resolution (700 horizontal TV lines) through its Super HAD II CCD sensor, to deliver superbly clear and detailed images.

  • Maximised image quality in low lighting

    The sensor also achieves remarkably high sensitivity (0.08 lx, F1.2, 50IRE), to maximise image quality under low-lighting conditions, making the SSC-FB531 eminently suitable for round-the-clock security applications.

  • Minimised noise for maximum image clarity

    The SSC-FB531 offers Adaptive DNR (Digital Noise Reduction) technology, which eliminates noise and motion blur to produce distinct and clear images. Adaptive DNR technology utilises both an adaptive 2D filter and an adaptive 3D filter, according to the AGC value, to reduce noise.

  • Electronic Day/Night function

    The Electronic Day/Night function automatically switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.

  • Compact and stylish design

    The compact and lightweight body of the SSC-FB531 allows it to be installed in many different environments.
