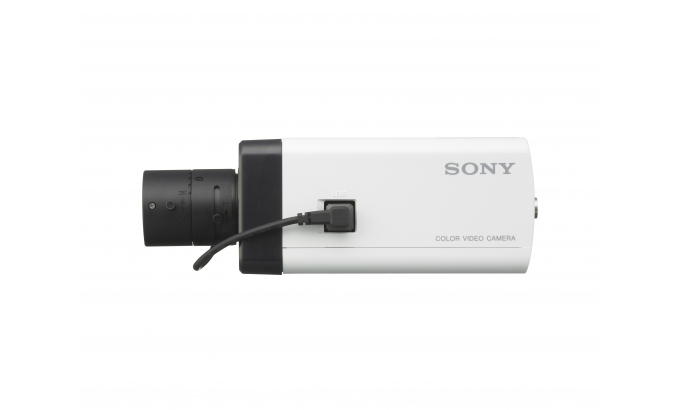

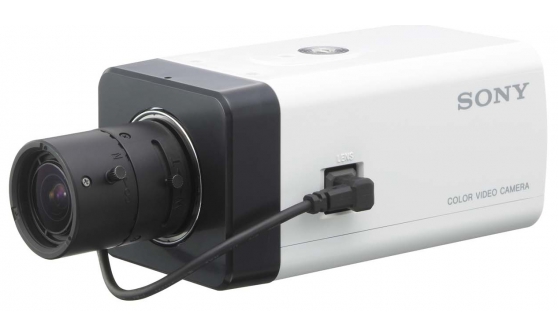

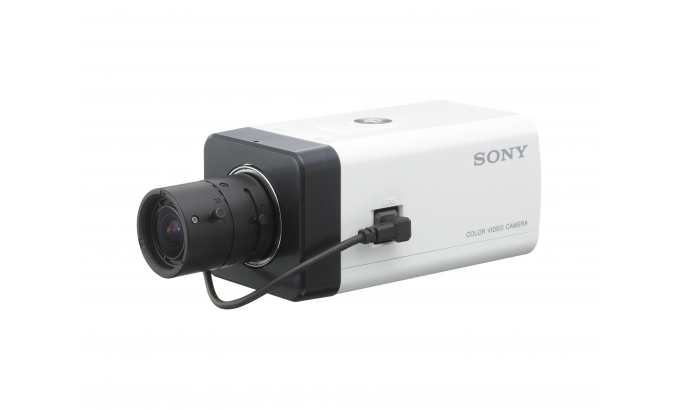

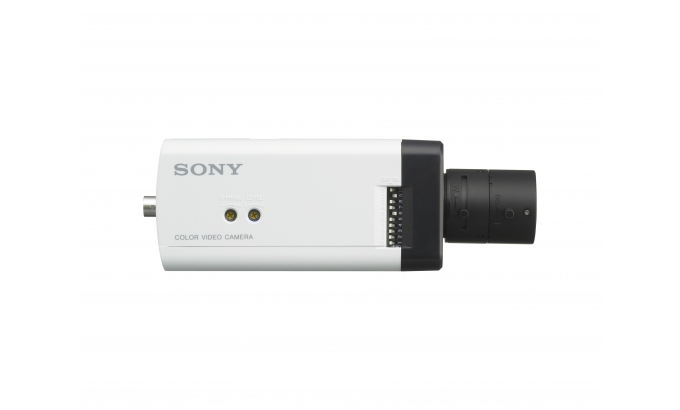

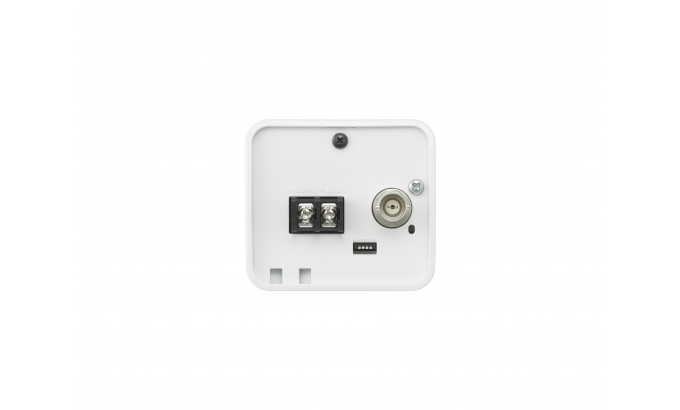

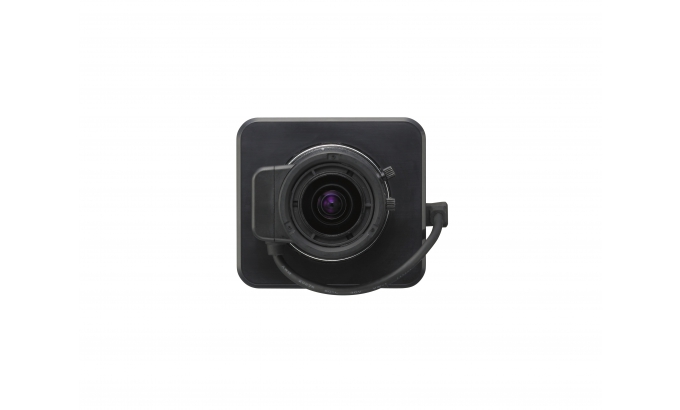

SSC-G113

Fixed analogue camera with high resolution, high sensitivity to light conditions and low (1.4W maximum) power consumption.

SONY

The SSC-G113 fixed analogue camera delivers the impressive image quality that you need, thanks to a range of innovative technologies from Sony. Through a combination of the maximum possible resolution of 650 horizontal TV lines, an EXview HAD CCD II sensor and Sony's new digital signal processor, the SSC-G113 performs in challenging lighting conditions. In addition, the electronic Day/Night function can switch modes automatically, making the camera even more versatile.

The camera can adjust images to their maximum clarity and usability. Automatic Tone Reproduction Lite (ATR-Lite) compensates for gradation of subjects to an optimum level whilst i-Back Light Compensation (iBLC) counteracts exposure levels in dark scenes. Automatic Tracing White (ATW) balance even adjusts the camera's white balance to adapt to sudden changes in lighting conditions.

For camera installation, the CS mount lens and compact design make it an extremely convenient and compatible camera to fit. In addition, Dip SW Control offers easy mode setting – so you can quickly install the camera and gain peace of mind. The SSC-G113 also offers low power consumption at a maximum of 1.4 W.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type 960H EXview HAD CCD II
Number of Effective Pixels Approx. 0.57 Megapixels
Signal System PAL
Sync System Internal/AC line lock selectable
Minimum Illumination (50 IRE) Color: 0.15 lx (F1.2 AGC ON)
B/W: 0.10 lx (F1.2 AGC ON)
Minimum Illumination (30 IRE) Color: 0.08 lx (F1.2 AGC ON)
B/W: 0.03 lx (F1.2 AGC ON)
S/N Ratio (Gain 0 dB) More than 55 dB (AGC OFF)
Gain Auto (ON/OFF)
Shutter Speed Fixed (1/50 s, default), Auto or 8 Fixed steps selectable
White Balance ATW (2000 K to 10000 K)
ATW-pro (2500 K to 6000 K)
Lens CS Mount
Powered Zoom No
Powered Focus No
IR Illuminator No

  • High resolution and high sensitivity

    The SSC-G113 offers high resolution (the analogue maximum of 650 horizontal TV lines) and high sensitivity (0.15 lx, F1.2, 50IRE), which is achieved by an "EXview HAD CCD II" sensor and the digital signal processor, "Effio-E."

  • Electronic Day/Night function

    The electronic Day/Night function automatically switches between Day (colour) and Night (black and white) modes depending on the light level.

  • Latest Sony image enhancement technologies

    The SSC-G113 features ATR-Lite (Automatic Tone Reproduction Lite) to compensate for gradation of subjects to an optimum level, iBLC (i-Back Light Compensation) to compensate for exposure levels in dark scenes to improve subject visibility, and ATW (Automatic Tracing White) balance which automatically adjusts the camera's white balance to adapt to sudden changes in lighting conditions.

  • Low power consumption

    The SSC-G113 also offers low power consumption at a maximum of 1.4 W.

  • Dip SW Control

    Dip SW Control allows you to configure the camera's functions, such as Day/Night and iBLC, without even looking at the installation monitor.

  • Internal Lock and selectable line lock

    The SSC-G113 allows you the flexibility to choose either internal or line lock.

  • 2D noise reduction

    2D noise reduction ensures clear visibility even in dark environments.
