SSC-G213

Fixed analogue colour camera with extremely high resolution (650 horizontal TV lines), high sensitivity and True Day/Night function, but low power consumption

SONY

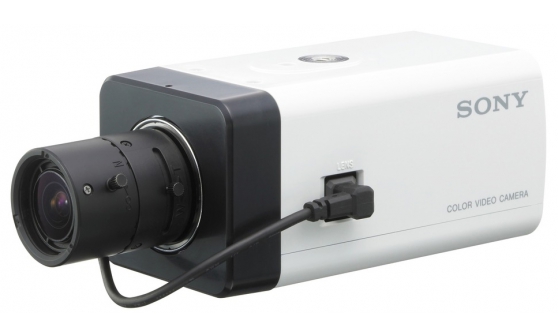

The Sony SSC-G213 fixed analogue colour camera delivers the image quality that you need through a combination of its impressively high resolution of 650 horizontal TV lines and its high sensitivity (colour: 0.15lx / B/W: 0.01 lx, F1.2, 50IRE) achieved by a1/3-type "EXview HAD CCD II" sensor and Sony's new digital signal processor, "Effio-E", as well as True Day/Night function to switch modes automatically.

The camera utilises a range of technologies to adjust the images to their maximum clarity and usability: Automatic Tone Reproduction Lite (ATR-Lite) compensates for gradation of subjects to an optimum level

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type 960H EXview HAD CCD II
Number of Effective Pixels Approx. 0.57 Megapixels
Signal System PAL
Sync System Internal/AC line lock selectable
Minimum Illumination (50 IRE) Color: 0.15 lx (F1.2 AGC ON)
B/W: 0.01 lx (F1.2 AGC ON)
Minimum Illumination (30 IRE) Color: 0.08 lx (F1.2 AGC ON)
B/W: 0.003 lx (F1.2 AGC ON)
S/N Ratio (Gain 0 dB) More than 55 dB (AGC OFF)
Gain Auto (ON/OFF)
Shutter Speed Fixed (1/50 s, default), Auto or 8 Fixed steps selectable
White Balance ATW (2000 K to 10000 K)
ATW-pro (2500 K to 6000 K)
Lens CS Mount
Powered Zoom No
Powered Focus No
IR Illuminator No

  • High resolution and high sensitivity

    The SSC-G213 offers very high resolution of 650 horizontal TV lines and high sensitivity (colour: 0.15 lx / B/W: 0.01 lx, F1.2, 50 IRE), which is achieved by a 1/3-type "EXview HAD CCD II" sensor and Sony's new digital signal processor, "Effio-E."

  • True Day/Night function

    The True Day/Night function automatically switches between Day (colour) and Night (black and white) modes depending on the light level.

  • Latest Sony image enhancement technologies

    The SSC-G213 features ATR-Lite (Automatic Tone Reproduction Lite) to compensate for gradation of subjects to an optimum level, iBLC (i-Back Light Compensation) to compensate for exposure levels in dark scenes to improve subject visibility, and ATW (Automatic Tracing White) balance which automatically adjusts the camera's white balance to adapt to sudden changes in lighting conditions.

  • CS mount lens

    The SSC-G213's optional CS mount lens and compact design make it extremely quick and straightforward to install.

  • Low power consumption

    The SSC-G213 also offers low power consumption at a maximum of 1.6 W, which reduces both your camera's running costs and its carbon footprint.

  • Dip SW Control

    Dip SW Control allows you to configure the camera's functions, such as Day/Night and iBLC, without even looking at the installation monitor.

  • Internal Lock and selectable line lock

    The SSC-G213 allows you the flexibility to choose either internal or line lock.

  • 2D noise reduction

    2D noise reduction ensures clear visibility even in dark environments.
