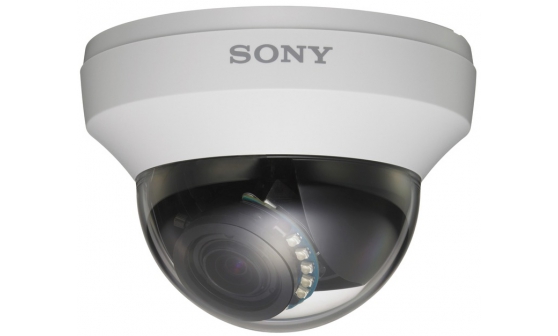

SSC-CM461R

High Resolution (540 TV lines) minidome analogue indoor camera with IR illuminators and True Day/Night function

SONY

The SSC-CM461R'sminidome structure, high resolution (540 horizontal TV lines in sharp mode), infrared illuminators and True Day/Night function make it an ideal camera for indoor applications, such as monitoring the interiors of offices, factories and other buildings, that require a wide angle of enhanced image capture at night.

Built-in infrared illuminators assist in capturing objects in the dark(under 0 lx up to 16 metres distant) with an True Day/Night function automatically switchingbetweenday (colour) and night (monochrome) modes depending on lighting levels. Image acquisition is high resolution and high sensitivity, thanks to a 1/3-type "Super HAD CCD II" sensor and "Effio-E" digital signal processor.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type 760H Super HAD CCD II
Number of Effective Pixels Approx. 0.44 Megapixels
Signal System PAL
Sync System Internal/AC line lock selectable
Minimum Illumination (50 IRE) Color: 0.06 lx (F1.2 AGC ON)
B/W: 0 lx (F1.2 AGC ON)
Minimum Illumination (30 IRE) Color: 0.04 lx (F1.2 AGC ON)
B/W: 0 lx (F1.2 AGC ON)
S/N Ratio (Gain 0 dB) More than 55 dB (AGC OFF)
Gain Auto (ON/OFF)
Shutter Speed Fixed (1/50 s)
White Balance ATW (2000 K to 10000 K)
ATW-pro (2500 K to 6000 K)
Lens Varifocal type
Powered Zoom No
Zoom Ratio Optical 3.7x
Powered Focus No
Horizontal Viewing Angle 101.8° to 27.4°
Vertical Viewing Angle 73.7° to 20.6°
Focal Length f = 2.8 mm to 10.5 mm
F-Number F1.2 (Wide), F2.7 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt/Rotation Angle (Manual) 355°/±66°
350°
IR Illuminator 10 pieces
IR Working Distance 16 m at 50 IRE

  • Capture images even in the darkest conditions

    Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – up to 16 metres away.

  • Clear and detailed images

    The SSC-CM461R offers high resolution (540 horizontal TV lines) image acquisition. A1/3-type "Super HAD CCD II" sensor and Sony's "Effio-E" digital signal processor deliver clear and detailed images.

  • Switching automatically into Night mode

    The True Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.

  • Automatic Tone Reproduction

    Automatic Tone Reproduction compensates for gradation of subjects to an optimum level.

  • 2D noise reduction

    2D noise reduction ensures clear visibility even in dark environments.
