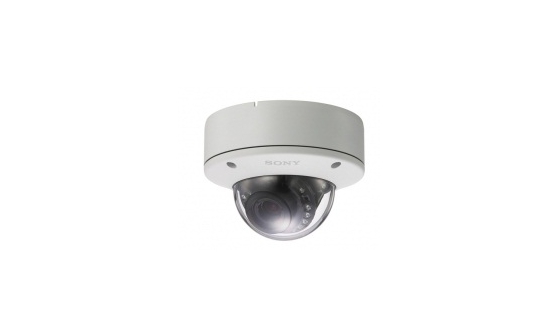

SSC-CM565R

SD High Resolution (700 line) minidome analogue outdoor camera with IR illuminators and IP66-rated housing

SONY

The SSC-CM565R’s minidome three-hinge structure, infrared illuminators, True Day/Night function and rugged design make it an ideal camera for outdoor applications, such as monitoring car parks, factories and office buildings, which require a wide angle of enhanced image capture at night.

Built-in infrared illuminators assist in capturing objects in the dark with an True Day/Night function automatically switching between day (colour) and night (monochrome) modes depending on lighting levels. The SSC-CM565R also has an IP66-rated waterproof and dust-tight design for robust and reliable outdoor surveillance performance.

Image acquisition is high resolution (700 horizontal TV lines in sharp mode) and high sensitivity, thanks to a 1/3-type “EXview HAD CCD II” sensor and “Effio-E” digital signal processor.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Collapse all

Camera

Image device 1/3” 960H EXview HAD CCD II
Number of effective pixels (H x V) Approx. 570,000 pixels
976 (H) x 582 (V)
Horizontal resolution 700 TVL (Sharp mode)
650 TVL (Normal mode)
Minimum Illumination Color 50 IRE 0.06 lx
Minimum Illumination Color 30 IRE 0.04 lx
Minimum Illumination B/W 50 IRE 0 lx
Minimum Illumination B/W 30 IRE 0 lx
Minimum Illumination Condition F1.2 AGC ON
Signal system PAL
Video output VBS:1.0Vp-p
S/N ratio More than 55 dB (AGC Off)
Synchronization Internal/AC line lock selectable
Gain control Auto (on/off)
White balance ATW (2000K~10000K), ATW-pro (2500K~6000K)
Lens type Vari-focal type
Focal length f = 2.8 to 10.5 mm
Zoom ratio Optical 3.7 x
F number F1.2 (Wide), F2.7 (Tele)
Angle of View (H) 101.8 to 27.4 degree
Panning range 355 degree
Tilting range ±77 degree
Swivel range 350 degrees
Minimum object distance 0.3 M

  • Capture images even in the darkest conditions

    Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – up to 30 m (98 feet) away.

  • Exceptionally detailed images

    The SSC-CM565R offers exceptionally high resolution (700 horizontal TV lines) image acquisition. A1/3-in type “EXview HAD CCD II” sensor and Sony’s “Effio-E” digital signal processor deliver superbly clear and detailed images.

  • Maximised image quality in low lighting

    Remarkably high sensitivity (Colour: 0.06 lx, B/W: 0 lx, F1.2, 50IRE) maximises image quality under low-lighting conditions, making the camera eminently suitable for round-the-clock security applications.

  • Switching automatically into Night mode

    The True Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.

  • Waterproof and dust-tight for robust surveillance requirements

    The SSC-CM565R features an IP66-rated waterproof and dust-tight design for outdoor applications, or indoor where water ingress is a threat.

  • Flexible angle of view

    The SSC-CM565R’s 3.7x variable focal length lens, with a focal length of 2.8 mm to 10.5 mm, and a horizontal angle of view of 101.8 ? to 27.4 ?, delivers an exceptionally flexible angle of view.
