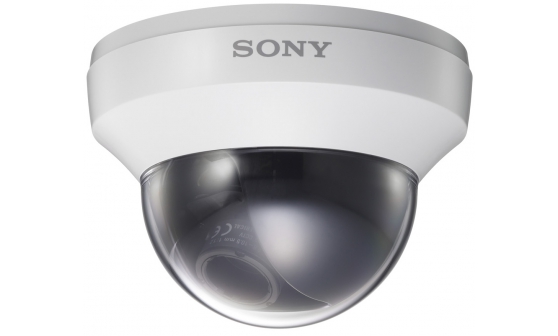

SSC-FM531

700 TV Lines Analogue Colour Minidome Camera with Wide Dynamic Range

SONY

The SSC-FM531 offers a combination of exceptional image quality under all lighting conditions and the ability to cover the greatest possible area through its innovative minidome three-hinge structure, making it the ideal security camera for environments such as offices, factories, entrances, car parks and public spaces, where image quality and wide coverage are vital.

The SSC-FM531 delivers superb images in all conditions through a combination of advanced Sony technologies – DynaViewSX for capturing high-contrast scenes, a Super HAD II CCD sensor for delivering sharp, detailed images, and the Electronic Day/Night function to ensure optimal 24-hour performance.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image device 1/3-Type Super HAD CCD II
Number of effective pixels (H x V) 570,000 pixels
(976 x 582)
Signal system PAL standard
Horizontal resolution 700 TV lines
(sharp mode)
S/N ratio More than 55 dB (AGC Off)
Minimum illumination Colour: 0.1 lx, B/W: 0.07 lx (F1.2, 50 IRE) Colour: 0.06 lx, B/W: 0.05 lx (F1.2, 30 IRE)
Dynamic range 75 dB (typical)
Video output VBS:1.0 Vp-p
Synchronization Internal / AC linelock selectable
Gain control Auto (OFF/Normal/Turbo)/Manual
White balance ATW/ATW-PRO/3200K/5600K/Manual
Lens type Built-in variable focal lens
Zoom ratio Optical 3.7x
Horizontal viewing angle 99.5 degrees to 27.4 degrees
Focal length f=2.8 to 10.5 mm
F Number F1.2 (Wide end), F2.6 (Tele end)
Minimum object distance 300 mm (11 7/8 inches)
Iris Auto
Panning range 355 degrees
Tilting range ±77 degrees
Swivel rotation 350 degrees

Camera Features

Day/Night Yes (Electronic Day/Night)
Noise reduction Yes (2DNR + 3DNR, Weak/Normal/Strong)
Back light compensation OFF/DynaViewSX/iBLC/SPOT
Automatic tone reduction Yes (DynaViewSX mode only)

General

Mass 320 g (11.3 oz)
Dimensions ø121.6 x 86.5 mm (ø4 7/8 x 3 1/2 inches)
Power requirement AC 24 V ±10%, DC 12 V ±10%
Power consumption 2.8 W
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity 20% to 80%
Storage humidity 20% to 90%

Supplied Accessories

  Operating instructions x1
  Menu instructions x1
  Template x1

  • Superb performance in high-contrast scenes and in poor lighting conditions

    DynaViewSX technology allows the SSC-FM531 to capture high-contrast scenes and deliver clarity under less-than-ideal lighting conditions. This means that the SSC-FM531 is able to capture vital information that other cameras miss. DynaViewSX incorporates three sub-technologies – a high-speed double shutter providing images with incredibly wide dynamic ranges, iBLC compensating for exposure levels in dark scenes, and an advanced natural synthesiser minimising noise.

  • The flexibility to cover the widest possible area

    The SSC-FM531 employs an innovative three-hinge structure – panning 355 degrees, tilting +/-77 degrees and rotating across 350 degrees – to cover the widest possible area.

  • Exceptionally detailed images

    The SSC-FM531 offers exceptionally high resolution (700 horizontal TV lines) through its Super HAD II CCD sensor, to deliver superbly clear and detailed images.

  • Maximised image quality in low lighting

    The sensor also achieves remarkably high sensitivity (0.1 lx, F1.2, 50IRE), to maximise image quality under low-lighting conditions, making the SSC-FM531 eminently suitable for round-the-clock security applications.

  • Minimised noise for maximum image clarity

    The SSC-FM531 offers Adaptive DNR (Digital Noise Reduction) technology, which eliminates noise and motion blur toproduce distinct and clear images. Adaptive DNR technology utilises both an adaptive 2D filter and an adaptive 3D filter, according to the AGC value, to reduce noise.

  • Electronic Day/Night function

    The electronic Day/Night function automatically switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.
