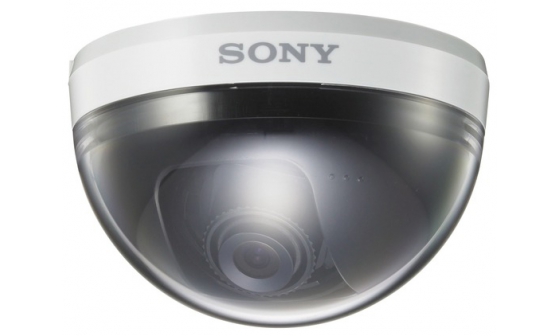

SSC-N13

Indoor minidome analogue camera with very high resolution (650 horizontal TV lines) and high sensitivity

SONY

The SSC-N13 analogue minidome camera brings high performanceindoor surveillance within the budgets of today's security-conscious companies. It offers high quality images through its 650 TV lines horizontal resolution and its high sensitivity of 0.4 lx (F2.0, 50 IRE, Colour), achieved by a 1/3-type "EXview HAD CCD II" sensor and Sony's new digital signal processor, "Effio-E".

From its compact body, the SSC-N13 can easily scan a wide area (95.9 degree horizontal viewing angle) with its new three-hinge structure.

The camera utilises a range of technologies to adjust the images to their maximum clarity and usability: Automatic Tone Reproduction Lite (ATR-Lite) compensates for gradation of subjects to an optimum level

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type 960H EXview HAD CCD II
Number of Effective Pixels Approx. 0.57 Megapixels
Signal System PAL
Sync System Internal Only
Minimum Illumination (50 IRE) Color: 0.40 lx (F2.0 AGC ON)
B/W: 0.25 lx (F2.0 AGC ON)
Minimum Illumination (30 IRE) Color: 0.20 lx (F2.0 AGC ON)
B/W: 0.08 lx (F2.0 AGC ON)
S/N Ratio (Gain 0 dB) More than 55 dB (AGC OFF)
Gain Auto (ON/OFF)
Shutter Speed Auto
White Balance ATW (2000 K to 10000 K)
Lens Monofocal type
Powered Zoom No
Powered Focus No
Horizontal Viewing Angle 95.9°
Focal Length f = 3.0 mm
F-Number F2.0
Minimum Object Distance 400 mm
Pan/Tilt/Rotation Angle (Manual) 340°/±45.3°
340°
IR Illuminator No

Camera Features

Day/Night Electronic D/N
Tone Correction ATR-Lite: ON/OFF, iBLC: ON/OFF
Noise Reduction 2DNR: ON/OFF
Vandal Resistant No
Ingress Protection No

Interface

Analog Video Output VBS: 1.0 Vp-p
650 TV lines

General

Power Requirements DC 12 V ±10%
Power Consumption 0.9 W max.
Operating Temperature -10? to +50?
+14°F to +122°F
Storage Temperature -40? to +60?
-40°F to +140°F
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Dimensions (W x H x D) *1 φ84 x 53 mm
φ3 3/8 x 2 1/8 inches
Mass 125 g
4.4 oz
Safety Regulations EN55022(Class A)+EN50130-4
EN55022(Class A)+EN55024
AS/NZS CISPR22 Class A
IEC60065
GOST-R IEC60065 compliance
Supplied Accessories Operating Instructions (1)

Notes

*1 W x H x D or "Diameter x H". The values for dimensions are approximate.

  • Quality images with high resolution and sensitivity

    Enjoy clearer, sharper images with the SSC-N13's very high resolution of 650 TV lines and high sensitivity of 0.4 lx (F2.0, 50 IRE, Colour), achieved by a 1/3-type "EXview HAD CCD II" sensor and Sony's new digital signal processor, "Effio-E".

  • A wide variety of viewing angle possibilities and adjustments

    The SSC-N13's new three-way hinge – with horizontal, vertical and swivel rotation – offers great flexibility, allowing the camera to be installed on vertical as well as horizontal surfaces.

  • Latest Sony image enhancement technologies

    The SSC-N13 features ATR-Lite (Automatic Tone Reproduction Lite) to compensate for gradation of subjects to an optimum level, iBLC (i-Back Light Compensation) to compensate for exposure levels in dark scenes to improve subject visibility, and ATW (Automatic Tracing White) balance which automatically adjusts the camera's white balance to adapt to sudden changes in lighting conditions.

  • Electronic Day/Night function

    Get the best quality image no matter the time of day or night. The Day/Night function automatically switches between Day (colour) and Night (black and white) modes, depending on the light level.

  • Economical low power consumption

    The SSC-N13 also offers low power consumption – a maximum of 0.9 W – to minimise operational overheads and carbon footprint.
