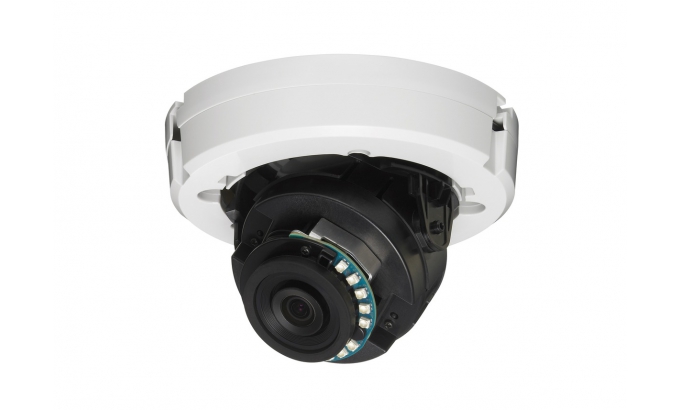

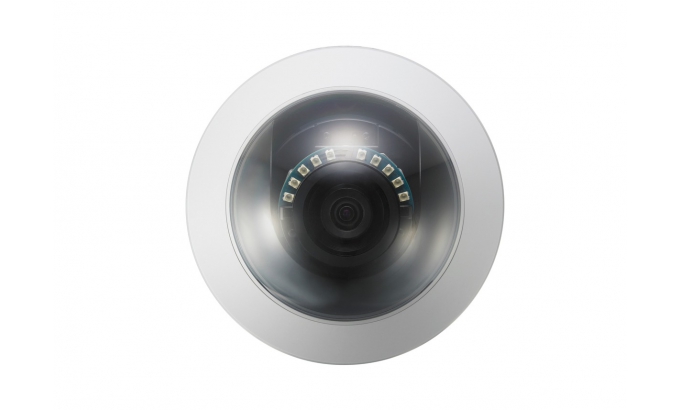

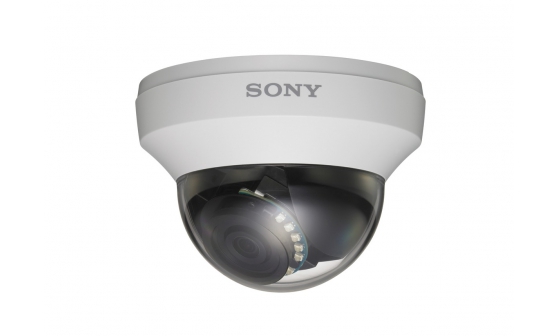

SSC-YM400R

High Resolution (540 TV lines) minidome analogue camera featuring IR illuminators with 5-metre working distance

SONY

The SSC-YM400R’sminidome structure, high resolution (540 horizontal TV lines), infrared illuminators and Electronic Day/Night function make it a great camera for sweeping a confined space that requires enhanced image capture at night.

Built-in infrared illuminators assist in capturing nearby objects in the dark (under 0 lx within 5 metres) with an Electronic Day/Night function automatically switching between day (colour) and night (monochrome) modes depending on lighting levels. Image acquisition is high resolution and high sensitivity, thanks to a 1/3-type “Super HAD CCD II” sensor and “Effio-E” digital signal processor.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Collapse all

Camera

Image Sensor 1/3-type 760H Super HAD CCD II
Number of Effective Pixels Approx. 0.38 Megapixels
Signal System NTSC
Sync System Internal only
Minimum Illumination (50 IRE) B/W: 0 lx (F2.0)
S/N Ratio (Gain 0 dB) More than 55 dB
Gain Auto
Shutter Speed Auto
White Balance ATW (2000 K to 10000 K)
Lens Monofocal type
Powered Zoom No
Powered Focus No
Horizontal Viewing Angle 96.3°
Vertical Viewing Angle 68.7°
Focal Length f = 3.1 mm
F-Number F2.0
Minimum Object Distance 400 mm
Pan/Tilt/Rotation Angle (Manual) 355°/±66°
350°
IR Illuminator 10 pieces
IR Working Distance 5 m at 50 IRE

Camera Features

Day/Night Electronic D/N
Tone Correction ATR-Lite
Noise Reduction 2DNR
Vandal Resistant No
Ingress Protection No

Interface

Analog Video Output VBS: 1.0 Vp-p
540 TV lines

General

Power Requirements DC 12 V ±10%
Power Consumption 2.7 W max.
Operating Temperature -10? to +50?
+14°F to +122°F
Storage Temperature -40? to +60?
-40°F to +140°F
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Dimensions (W x H x D) *1 φ121.6 mm x 86.5 mm
φ4 7/8 inches x 3 1/2 inches
Mass 260 g
9.2 oz
Safety Regulations UL2044
FCC/IC ClassA
IEC60065
Supplied Accessories Operating Instructions (1)
Template (1)

Notes

*1 W x H x D or "Diameter x H". The values for dimensions are approximate.

  • Capture nearby objects even in the darkest conditions

    Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – within 5 metres.

  • Clear and detailed images

    The SSC-YM400R offers high resolution (540 horizontal TV lines) image acquisition. A1/3-type “Super HAD CCD II” sensor and Sony’s “Effio-E” digital signal processor deliver clear and detailed images.

  • Switching automatically into Night mode

    The Electronic Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.

  • Automatic Tone Reproduction

    Automatic Tone Reproduction compensates for gradation of subjects to an optimum level.

  • 2D noise reduction

    2D noise reduction ensures clear visibility even in dark environments.
