SNC-CH110

Compact 720p/30 fps Camera - X Series

SONY

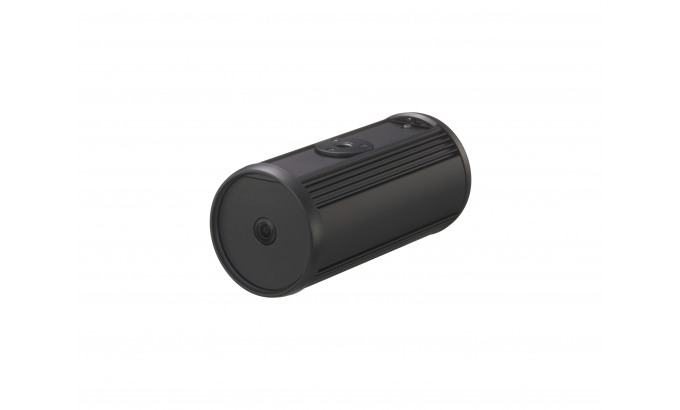

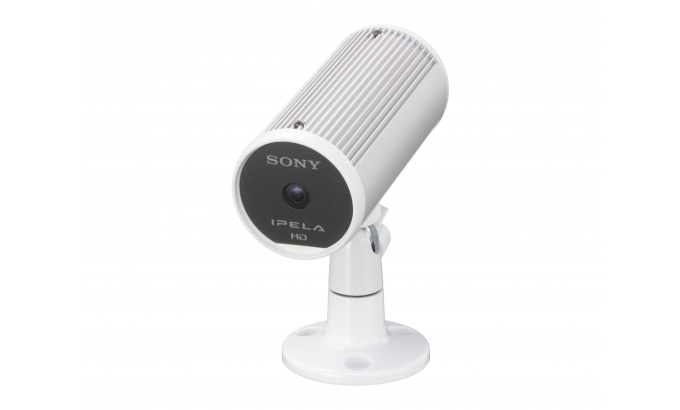

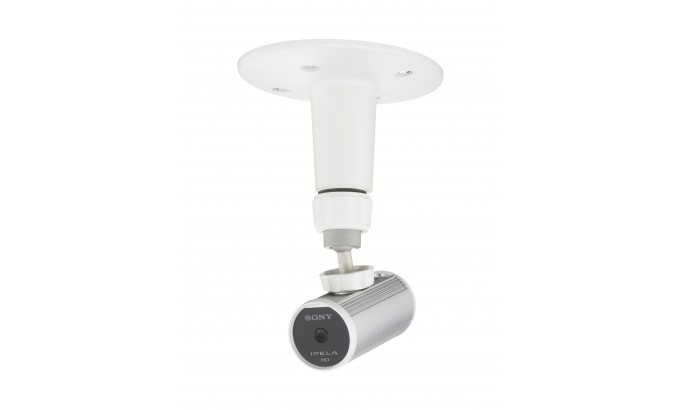

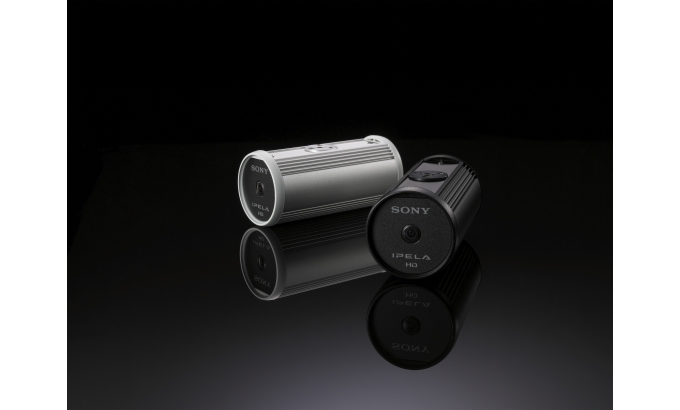

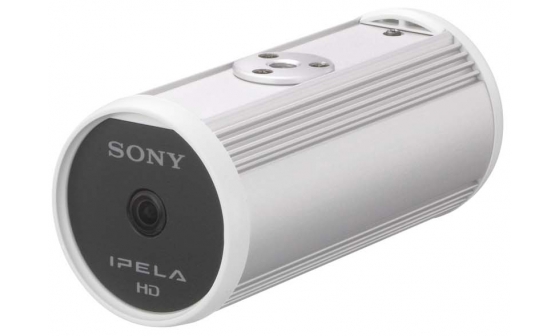

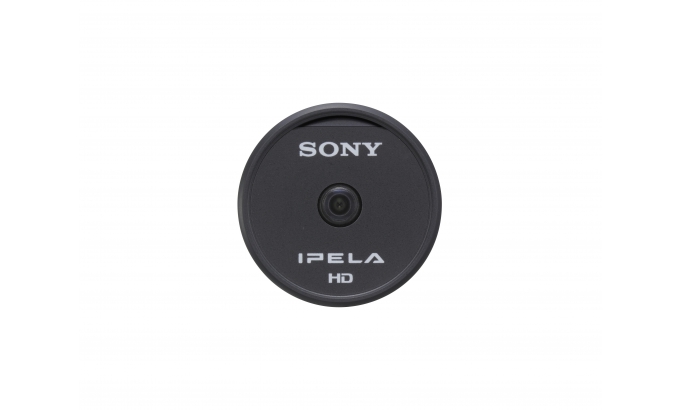

The SNC-CH110 is a compact indoor high definition (720p) 1.3 Megapixel (1280 x 1024 maximum resolution) fixed camera with Electronic Day/Night function, DEPA and ONVIF compliance. It supports dual streaming and triple codec encoding.

Sony's X-Series cameras have outstanding picture quality and a compact, affordable, stylish design.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3.8-type CMOS sensor
Number of Effective Pixels Approx. 1.3 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 5.0 lx (F2.8, AGC (Max.), 1/30 s)
Minimum Illumination (30 IRE) Color: 2.7 lx (F2.8, AGC (Max.), 1/30 s)
Gain Auto
Shutter Speed 1/2 s to 1/10,000 s
Exposure Control Auto, EV Compensation, Auto Slow Shutter
White Balance Auto(ATW, ATW-PRO) , Preset, One-push WB, Manual
Lens Fixed lens
Zoom Ratio Digital zoom 3x
Total zoom 3x
Horizontal Viewing Angle 80.7°
Vertical Viewing Angle 60.5°
Focal Length f = 2.34 mm
F-Number F2.8
Minimum Object Distance 500 mm

  • Compact and Stylish design

    A compact, stylish and discreet design that compliments any surveillance environment.

  • DEPA

    The SNC-CH110 offers intelligent video analytics, based on the Sony DEPA platform. DEPA is a combined function of the intelligence built in to the camera and rules/filters that determine which images should be recorded or when an alarm should be triggered.

  • EXMOR® and CMOS® Sensor

    High resolution CMOS® sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, EXMOR® is one of the highest quality image sensors available.

  • Power over Ethernet (PoE) capability

    Supporting Power over Ethernet (PoE), the camera can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment.

  • ONVIF (Open Network Video Interface Forum) compliance

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

  • HD (720p) resolution

    Detailed 720p HD progressive images. Progressive acquisition (as opposed to interlace) means that images are more stable to view, contain more information and compress more efficiently - without "interlace artefacts".

  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • Stream Squared Function

    An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in user-selectable SD resolutions. You can select the entire image or a portion of the image from the original view and resize to SD resolution. With this feature the SNC-CH110 can replace two SD cameras installed in the same line of view.

  • Electronic Day/Night

    Ensures that the camera is operating with the optimum sensitivity for both day and night conditions

  • Analogue Monitor Output

    This allows an analogue video monitor to be connected directly to the camera.
