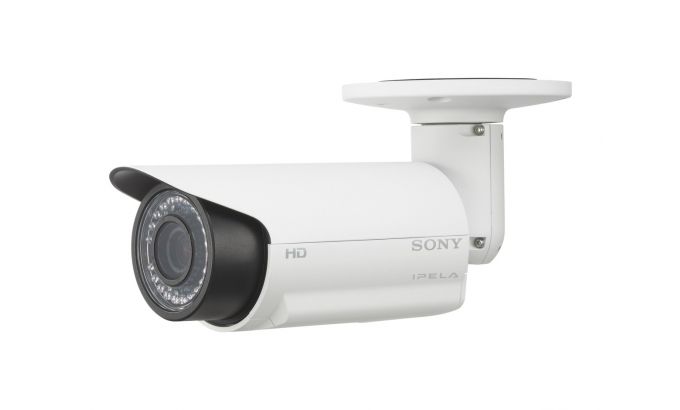

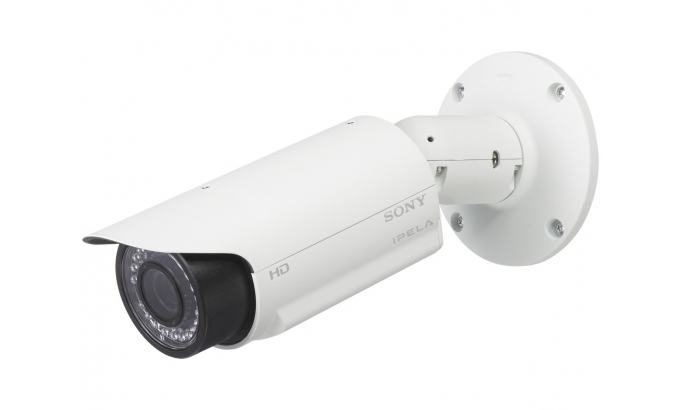

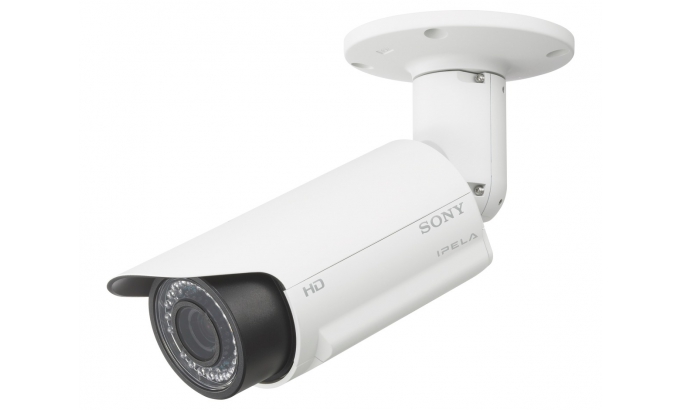

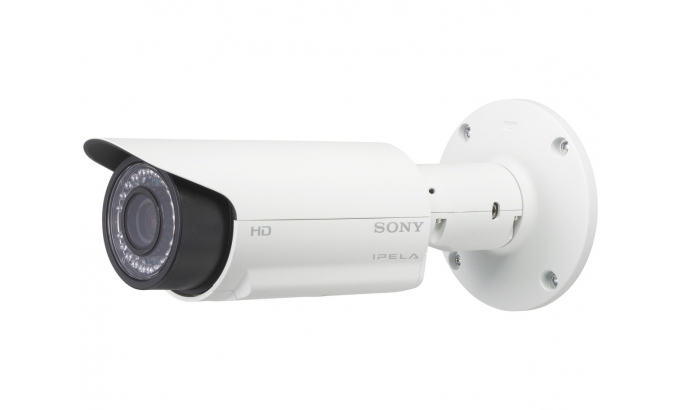

SNC-CH160

Outdoor IR Bullet 720p/30 fps Camera - E Series

SONY

The SNC-CH160 is a high definition (720p) 1.3 Megapixel (1280 x 1024 maximum resolution) bullet network security camera with True Day/Night function, Intelligent Motion Detection and DEPA. It comes equipped with IR Illumination to assist with capturing objects in the dark, and is IP66-rated for outdoor protection against dust and water ingress.

Sony's Exmor CMOS sensor provides excellent pictures and event detection for effective evidence gathering.

Sony's E-Series cameras have outstanding picture quality and a range of features at an affordable price.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3 type progressive scan "Exmor" CMOS sensor
Number of Effective Pixels Approx. 1.4 Megapixels
Signal System NTSC color system/PAL color system (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.50 lx (F1.2/ AGC 42 dB / 50 IRE)
BW: 0 lx( (IR ON) (F1.2/ AGC 42 dB / 50 IRE)
Minimum Illumination (30 IRE) Color: 0.30 lx (F1.2, AGC 42 dB, 1/30 s)
B/W: 0.00 lx (F1.2, AGC 42 dB, 1/30 s)
Dynamic Range More than 60 dB
Gain Auto
Shutter Speed 1 s to 1/10000 s
Exposure Control Auto, EV Compensation*1, Auto Slow Shutter*2
White Balance Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens Built-in varifocal lens
Powered Zoom No
Easy Zoom Yes
Zoom Ratio Optical 2.9x
Digital zoom 3x
Total zoom 8.7x
Powered Focus Yes (Easy Focus)
Horizontal Viewing Angle 85.4° to 31.2°
Focal Length f =3.1 mm to 8.9 mm
F-Number F1.2 (Wide), F2.1 (Tele)
Minimum Object Distance 300 mm
IR Illuminator Yes (Wave Length: 850 nm [Typical], IR LED: 21 pieces)

  • DEPA

    The SNC-CH160 offers intelligent video analytics, based on the Sony DEPA platform. DEPA is a combined function of the intelligence built in to the camera and rules/filters that determine which images should be recorded or when an alarm should be triggered.

  • EXMOR® and CMOS Sensor®

    High resolution CMOS sensor® with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, EXMOR® is one of the highest quality image sensors available.

  • Power over Ethernet (PoE) capability

    Supporting Power over Ethernet (PoE), the camera can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment.

  • ONVIF (Open Network Video Interface Forum) compliance

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

  • HD (720p) resolution

    Detailed 720p HD progressive images. Progressive acquisition (as opposed to interlace) means that images are more stable to view, contain more information and compress more efficiently - without "interlace artefacts".

  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • Stream Squared Function

    An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in user-selectable SD resolutions. You can select the entire image or a portion of the image from the original view and resize to SD resolution. With this feature the SNC-CH160 can replace two SD cameras installed in the same line of view.

  • True Day/Night

    Optimises sensitivity in day and night conditions. As night falls, an infra-red filter is automatically removed and the camera switches to monochrome. In this mode, the camera can acquire images extremely low light conditions.

  • IR Illuminators

    Built-in IR (Infrared) illuminators provide assistance to the camera when capturing objects in the dark.

  • Easy Focus/Easy Zoom

    Easy Focus/Easy Zoom simplifies installation by making it easy to set up the focus and zoom settings of the camera.

  • Built-in heater

    Ensures that the camera will operate correctly in cold weather.

  • Analogue Monitor Output

    This allows an analogue video monitor to be connected directly to the camera.
