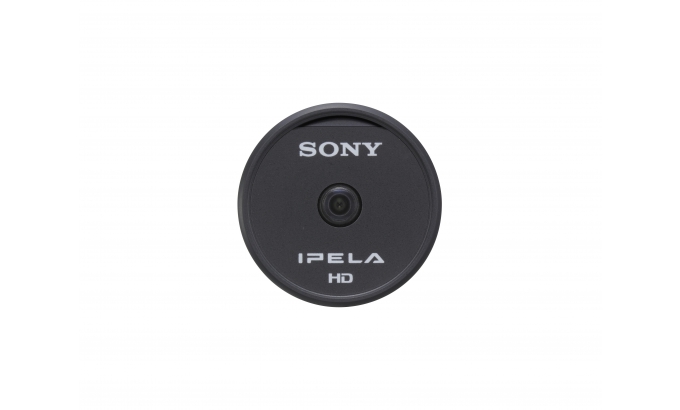

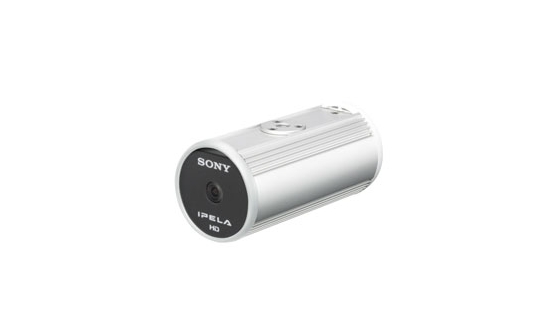

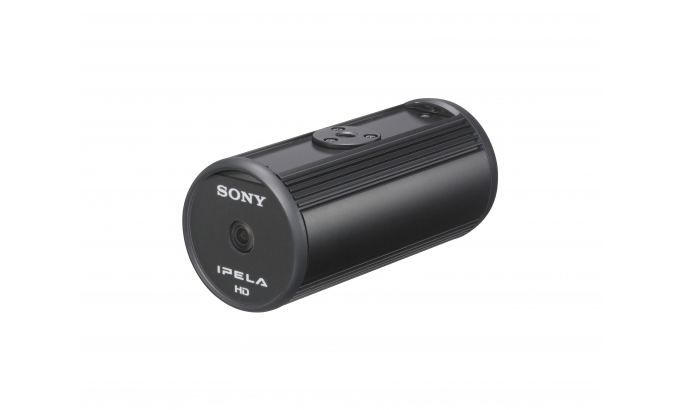

SNC-CH210

Compact 1080p/15 fps Camera - X Series

Designed for a compact budget, this space-saving camera has several top-end features, making it an obvious choice for a wide range of surveillance applications.

The SNC-CH210 not only captures pristine HD images, but it provides users with a new way to use them

  • Excellent HD picture quality

    Very high resolution images with a full 30fps available at 1080p resolution. Higher resolution images mean more detail in the picture and progressive video leads to better images after compression

  • Exmor CMOS Sensor

    High resolution CMOS sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, Exmor is one of the highest quality image sensors available

  • Stream Squared function

    An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in user-selectable SD resolutions. You can select the entire image or a portion of the image from the original view and resize to SD resolution. With this feature theh SNC-CH210 can replace two SD cameras installed in the same line of view.

  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • Innovative design

    A compact, unobtrusive design available in two body colours, designed to blend in with its surroundings.

  • Power over Ethernet (PoE) capability

    Supporting Power over Ethernet (PoE), the SNC-CH210 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment

  • ONVIF (Open Network Video Interface Forum) compliance

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.8 type progressive scan "Exmor" CMOS sensor
Number of Effective Pixels Approx. 3 Megapixels
Signal System NTSC color system/PAL color system (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) 2.0 lx (AGC 38 dB / 50 IRE)
Minimum Illumination (30 IRE) 1.5 lx (AGC 38 dB / 30 IRE)
Gain Auto
Shutter Speed 1 s to 1/10000 s
Exposure Control Auto, EV Compensation, Auto Slow Shutter
White Balance Auto(ATW, ATW-PRO) , Preset, One-push WB, Manual
Lens fixed
Powered Zoom No
Easy Zoom No
Powered Focus No
Horizontal Viewing Angle 88°
Focal Length f = 3.3 mm
F-Number F2.8
Minimum Object Distance 500 mm
IR Illuminator No
  • Excellent HD picture quality with 1080p resolution at 30fps



  • Exmor CMOS Sensor



  • Stream Squared function: two views from one camera



  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability



  • Innovative design: compact, slim and with two body colours



  • Power over Ethernet (PoE) capability



  • ONVIF (Open Network Video Interface Forum) compliance
