SNC-EB632R

Outdoor IR Bullet 1080p/30 fps Camera Powered by IPELA ENGINE EX™ – E Series

SONY

Weather-resistant ‘bullet type’ fixed camera with IPELA ENGINE EX™ processing for excellent Full HD quality and high sensitivity, plus image stabilisation and Advanced IR technology

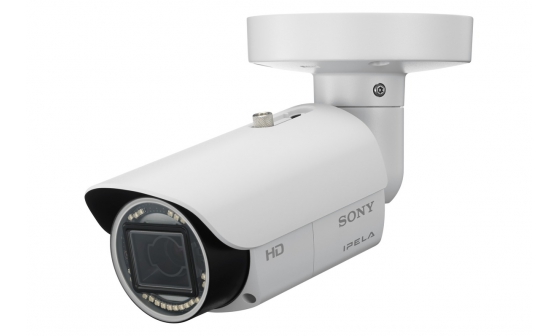

The SNC-EB632R is a weather-resistant, easy to install ‘bullet-type’ fixed network camera. It’s ideal for a wide range of outdoor security and surveillance tasks, from city centres, transport systems and retail centres to schools and colleges.

Sony’s acclaimed Exmor CMOS sensor captures crisp Full HD pictures, while industry-leading sensitivity delivers clear, low-noise images in challenging low light conditions.

The award-winning IPELA ENGINE EX platform uses unique signal processing to boost image quality in a wide range of operating environments, while state-of-the-art video analytics technologies offer more efficient security operations based on user-defined rules.

View-DR expands dynamic range to assist with identifying human faces and other objects in high-contrast and strongly backlit scenes, like sun-drenched offices or car park entrances. Visibility Enhancer (VE) dynamically fine-tunes image brightness and colours on a pixel-by-pixel basis, while XDNR (eXcellent Dynamic Noise Reduction) dramatically reduces noise, minimising motion blur in low light conditions. DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules.

The camera can see in conditions of complete darkness, with built-in IR (infrared) illumination that’s coupled with Advanced IR technology to capture near and far-away objects without overexposure.

The image stabiliser keeps images stable for crisper footage, even when the camera is subject to vibration on a mounting pole or bracket.

Designed for round-the-clock outdoor use, the unitised camera can operate in extreme temperatures from -30°C to +50°C and is IP66 rated for resistance to water and dust. The unique mounting arm simplifies installation with flexible two-axis adjustment of viewing angle. For extra convenience, a built-in sunshade helps cut glare for improved picture quality and contrast on brightly-lit days.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.9-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 2.14 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.1 lx (F1.2, View-DR Off,?VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0 lx (IR illuminator On)
Minimum Illumination (30 IRE) Color: 0.06 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0 lx (IR illuminator On)
Dynamic Range Equivalent to 90 dB with View-DR technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Exposure compensation, Shutter speed, Iris
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor
Lens Built-in varifocal lens
Zoom Ratio Optical zoom 3x
Digital zoom 4x
Total zoom 12x
Horizontal Viewing Angle 105.3° to 35.6°
Vertical Viewing Angle 56.9° to 20.1°
Focal Length f = 3.0 mm to 9.0 mm
F-Number F1.2 (Wide) to F2.1 (Tele)
Minimum Object Distance 300 mm
IR Illuminator Yes
Wave length (typical): 850 nm , IR LED: 20 pieces)
IR Working Distance 30 m (50 IRE)
98 ft. (50 IRE)

  • See every detail with Full HD quality

    The high-resolution Exmor CMOS sensor captures crisp, detail-packed Full HD video images (up to 1920 x 1080 at 30fps), even in low light. Class-leading sensitivity assures improved picture quality in low light conditions like dimly-lit car parks.

  • Advanced imaging performance with IPELA ENGINE EX

    Sony’s powerful IPELA ENGINE EX processing platform combines several technologies that optimise Full HD picture quality. View-DR combines images taken at different shutter speeds, delivering a wide dynamic range up to 90 dB for excellent performance in high-contrast, strongly backlit environments. Visibility Enhancer (VE) dynamically optimises brightness and colour tone on a pixel-by-pixel basis, while XDNR (eXcellent Dynamic Noise Reduction) reduces noise, minimising motion blur under low illumination.

  • Don’t miss that crucial moment with Intelligent Motion Detection and Face Detection

    Powerful DEPA Advanced video analytics enhances Intelligent Motion Detection and rule-based alarm triggers, providing alerts with object filters like ‘passing’ and ‘intrusion’ to further reduce false alarms. Face Detection allows rapid indexing of recordings to find events where a human face is visible in the scene.

  • Advanced IR

    Built-in infrared (IR) illuminators assist with capturing objects in complete darkness, up to 30m (tentative) from the camera. View-DR technology ensures that clear black-and-white images can be seen both near and far from the camera without overexposure.

  • Steadier, more stable video footage

    The built-in image stabiliser minimises the effects of camera shake – for example when the camera’s subject to vibration on a mounting pole or bracket. With clearer, more stable video images it’s easier to see what’s happening in any scene.

  • Better pictures, day or night

    True D/N (Day/Night) function automatically switches the camera to Day or Night mode, depending on ambient light levels.

  • Flexible compression modes to suit your network

    Select VBR (variable bitrate), CBR (constant bitrate), or VBR with cap (variable bitrate with limit) compression modes for optimised network bandwidth control with given IP network conditions and recording storage capacity.

  • View and control with your smartphone

    Securely access the camera using a smartphone or tablet (Android or iOS) to view images remotely and control pan, tilt, and zoom functions. You don’t even need to download a special app.

  • Adjustable sunshade

    The integrated sunshade protects the lens from direct sun glare, making the camera particularly suitable for outdoor use in direct sunlight.

  • Easy installation and set-up

    The unitised camera can be installed easily, with no need for an additional adaptor box. Setup is simplified with quick focus/zoom adjustment and flexible two-axis adjustment of the camera’s field of view.

  • Reduce cabling costs with Power Over Ethernet (PoE)

    Power over Ethernet (PoE) allows the camera be powered using the same Ethernet cable that’s for data transfer, reducing installation complexity and costs.

  • ONVIF (Open Network Video Interface Forum) compliance

    Support for ONVIF Profile-S simplifies integration with a wide range of video management solutions, providing video streaming and camera control. ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.

  • Dependable all-weather operation

    The camera can operate reliably over a wide -30 to +50°C temperature range. Ideal for outdoor use it is IP66 rated, water proof and dust tight.
