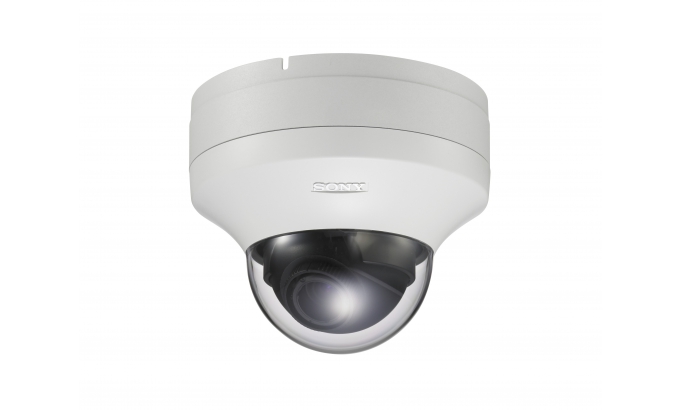

SNC-DH140

Minidome 720p/30 fps Camera - V Series

SONY

The SNC-DH140 HD minidome network camera delivers excellent picture quality at HD resolution (1280x720, 30 fps) in 16:9 aspect ratio. This level of clarity combined with state-of-the-art image processing make the DH140 one of the most effective CCTV cameras on the market. This capability makes it an obvious choice for mission critical CCTV applications including airport/border and traffic surveillance.

Installation is quick and easy, thanks to the newly developed Easy Focus function which automatically adjusts to the native surroundings. The SNC-DH140 also has an Easy Zoom function to adjust the focus relative to the zoom ratio.

PoE (Power over Ethernet) capability and support for multiple codecs provides ultimate flexibility for system design, integration and installation.

SNC-DH140 minidome also features ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.

  • Capture everything

    Sony's HD minidome network camera delivers clear and crisp CCTV images with a level of detail never seen before. In combination with advanced image processing technology, the SNC-DH140 provides enhanced levels of security even under the most challenging lighting conditions. It also provides the option to cover more area with fewer cameras, depending upon your operational requirements.

  • Automatic adjustment focusing

    The newly developed Easy Focus function on the SNC-DH140 enables quick and easy installation and automatic adjustment focusing to suit the surroundings. The Easy Zoom function adjusts the focus relative to the zoom ratio.

  • Simple to install, easy to maintain

    Compact and slim, the SNC-DH140 camera can be installed or detached quickly and easily, greatly reducing installation time, servicing time and costs.

  • Highly flexible network capability

    Enjoy extraordinary operational flexibility using the ideal compression format for differing image and network types (JPEG for high-quality still images, MPEG-4 and H.264 for clear, moving images over bandwidth-limited networks).

  • ONVIF compliance offers the optimum in interoperability

    Compliance with ONVIF Open Network Video Interface Forum) ensures interoperability and maximum flexibility between a wide range of manufacturers' network video products.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3 type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 1.4 Megapixels
Signal System NTSC color system/PAL color system (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.20 lx (F1.2/View-DR OFF / VE OFF / AGC High / XDNR Mid / 50 IRE)
BW: 0.10 lx (F1.2/View-DR OFF / VE OFF / AGC High / XDNR Mid / 50 IRE)
Minimum Illumination (30 IRE) Color: 0.10 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Middle, 1/30 s)
B/W: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Middle, 1/30 s)
Dynamic Range Equivalent to 130 dB by View-DR Technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto (3 levels)
Shutter Speed 1 s to 1/10000 s
Exposure Control Auto, EV Compensation*1, Auto Slow Shutter*2
White Balance Auto(ATW, ATW-PRO), Preset, One-push WB, Manual
Lens Built-in varifocal lens
Powered Zoom No
Easy Zoom Yes
Zoom Ratio Optical zoom 2.9x
Digital zoom 4x
Total zoom 11.6x
Powered Focus Yes (Easy Focus)
Horizontal Viewing Angle 85.4° to 31.2°
Focal Length f = 3.1 mm to 8.9 mm
F-Number F1.2 (Wide), F2.1 (Tele)
Minimum Object Distance 300 mm
IR Illuminator No

  • Sony's HD CMOS image sensor provides excellent picture quality at all resolutions up to 1280x1024 including HD resolution (1280 x 720 pixels) in 16:9 aspect ratio. The full potential for sharp, clear HD images is ensured thanks to XDNR noise reduction ,visibility enhancer (VE) and View-DR systems.

  • CMOS image sensor for HD picture quality

    With Sony's View-DR innovation, you can achieve a high contrast ratio of 125dB. This ensures realistic tonal detail, and state-of-the-art image enhancement with a wide, dynamic range capability.

  • View-DR technology for a high contrast ratio

    Sony's visibility enhancer technology (VE) improves performance in challenging lighting conditions, for example high-contrast environments, such as casinos and highways, that had previously been difficult to monitor. The visibility enhancer's advanced system suppresses extreme whites and boosts dark areas in a scene simultaneously and dynamically, to produce clearer images on the screen.

  • Visibility Enhancer for improved performance in challenging lighting conditions

    XDNR (Excellent Dynamic Noise Reduction) technology virtually eliminates image blur in low-light conditions, enabling users to clearly capture images that have not been easy to portray in the past. It also overcomes the problems associated with many competitor camera models. What's more, when both XDNR and Visibility Enhancer are turned on, the cameras can achieve four times the sensitivity compared to when they are off. This technology is ideal for any outdoor surveillance monitoring, such as in a car park at night.

  • XDNR technology for clear low-light images

    The Easy Focus function is an automatic focus function activated by dedicated buttons on the camera body/web interface.

  • Easy Focus and Easy Zoom functions

    The Easy Zoom function adjusts the focus relative to the zoom ratio.

  • Power over Ethernet capability (IEEE802.3af)

    Supporting Power over Ethernet (PoE), the SNC-DH140 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment

  • Triple Codec Network Operation

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • ONVIF Compliant

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

  • Tamper Alarm

    When an attempt is made to tamper with the camera, such as spray-painting the lens, the SNC-DH140 detects this and triggers an alarm. This event can also be used to activate the camera relays, or even to start the Voice Alert function.

  • Advanced Audio Detection

    Unlike conventional audio detection where an alarm is triggered based on a preset audio level, the SNC-DH140 triggers its alarms based on ambient sound conditions as the threshold. The camera stores and updates ambient audio levels and frequencies, and when the threshold level based on this data, is surpassed, an alarm is triggered. (Available with version 1.1 or later software.)

  • Support for IPv6

    The SNC-DH140 supports Internet Protocol Version 6 (IPv6).
