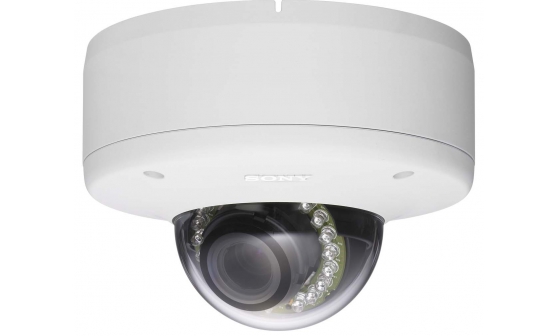

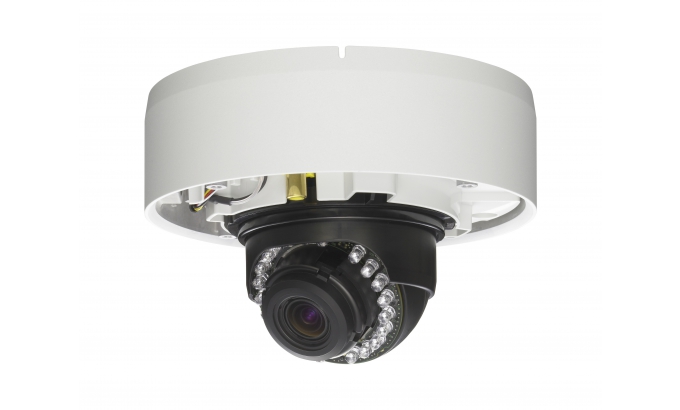

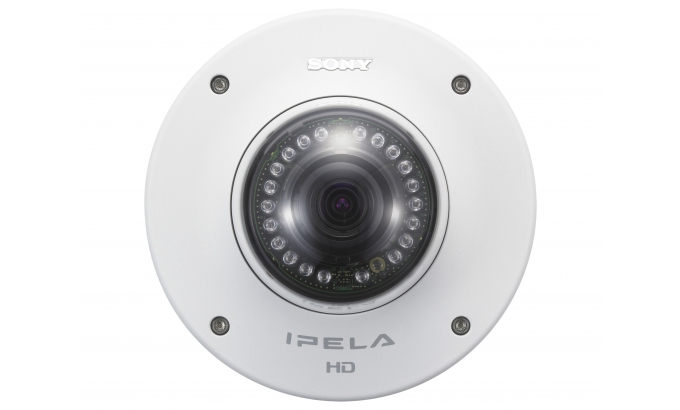

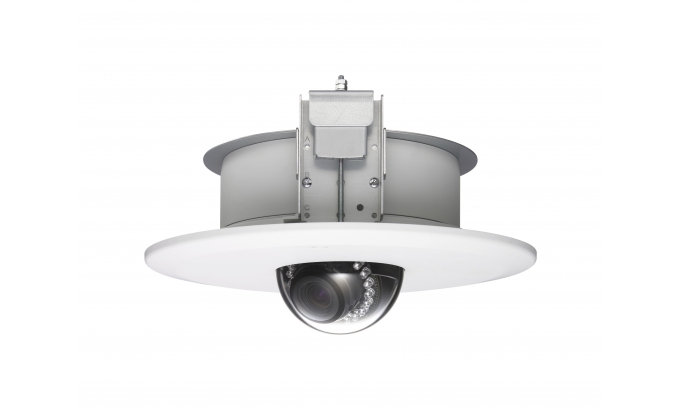

SNC-DH180

Outdoor IR Ruggedized 720p/30 fps Camera - V Series

An important addition to Sony's superlative range of network security systems, the SNC-DH180 is an HD camera that can see in absolute darkness (0 lx), with its built-in infrared (IR) illuminator. It captures clear pictures even without any visible light.

This feature-rich HD minidome camera comes with Sony's image enhancement expertise. It includes View-DR for a very wide dynamic range in difficult lighting conditions, and XDNR for incredibly powerful noise reduction. Couple these with the SNC-DH180's IR Illuminator, and you have a powerful HD network security camera.

The SNC-DH180 projects infra-red light 15 metres from the lens and beyond, effortlessly capturing clear images where other devices would see only darkness*.

Sony's DEPA Advanced Intelligent Video and Audio Analytics means the SNC-DH180 delivers crystal-clear images and automatic alarm triggers and alerts - based on user-defined rules. The SNC-DH180 also offers excellent protection against vandals and the weather.

This is a camera that's ready for anything.

  • Captures images in complete darkness using IR illuminators.

    Captures clear images in complete darkness, up to 15m from the lens, and often beyond. In low light, or even in no light, the SNC-DH180 still gets the picture

  • Outstanding HD picture quality: 720p at 30fps

    Resolve smaller details in images thanks to 720p 30fps capture resolution

  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • View-DR (Visibility Enhanced Wide Dynamic Range) for extra dynamic range in images captured by the camera

    With Sony's View-DR (Visibility Enhanced Wide Dynamic Range) innovation, you can achieve a high contrast ratio of 125dB. This ensures realistic tonal detail, and state-of-the-art image enhancement with a wide, dynamic range capability.

  • XDNR eXcellent Dynamic Noise Reduction to improve pictures in low illumination

    XDNR (Excellent Dynamic Noise Reduction) technology virtually eliminates image blur in low-light conditions, enabling users to clearly capture images that have not been easy to portray in the past. It also overcomes the problems associated with many competitor camera models. What's more, when both XDNR and Visibility Enhancer are turned on, the cameras can achieve four times the sensitivity compared to when they are off. This technology is ideal for any outdoor surveillance monitoring, such as in a car park at night.

  • DEPA Advanced analytics triggers alarms and alerts based on user-created rules

    DEPA Advanced Intelligent Video and Audio Analytics can analyse images to detect whether pre-selected objects have moved, raising an alarm if an event is detected. Users create a set of rules that determine exactly how and when this happens

  • Power over Ethernet (PoE) capability

    Supporting Power over Ethernet (PoE), the SNC-DH180 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment

  • Built-in heater for cold weather

    With a built-in heater, the SNC-DH180 will work in temperatures from -20 to 50ºC (does not work with PoE).

  • IP66 rating against water ingress/damage

    The SNC-DH180 is rain and splash-proof – essential for serious outdoor use

  • IK10 rating against external impact/vandalism

    The SNC-DH180 withstands severe impacts from thrown objects and other types of vandalism

  • ONVIF (Open Network Video Interface Forum) compliance

    Compliance with ONVIF Open Network Video Interface Forum) ensures interoperability and maximum flexibility between a wide range of manufacturers' network video products.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3 type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 1.4 Megapixels
Signal System NTSC color system/PAL color system (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.20 lx (F1.2/View-DR OFF / VE OFF / AGC High / XDNR Mid / 50 IRE)
BW: 0.10 lx (F1.2/View-DR OFF / VE OFF / AGC High / XDNR Mid / 50 IRE)
Minimum Illumination (30 IRE) Color: 0.10 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Middle, 1/30 s)
B/W: 0.00 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Middle, 1/30 s)
Dynamic Range Equivalent 130 dB by View-DR Technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto (3 levels)
Shutter Speed 1 s to 1/10000 s
Exposure Control Auto, EV Compensation*1, Auto Slow Shutter*2
White Balance Auto(ATW, ATW-PRO), Preset, One-push WB, Manual
Lens Built-in varifocal lens
Powered Zoom No
Easy Zoom Yes
Zoom Ratio Optical zoom 2.9x
Digital zoom 4x
Total zoom 11.6x
Powered Focus Yes (Easy Focus)
Horizontal Viewing Angle 85.4° to 31.2°
Focal Length f = 3.1 mm to 8.9 mm
F-Number F1.2 (Wide), F2.1 (Tele)
Minimum Object Distance 300 mm
IR Illuminator Yes
(Wave Length: 850 nm [Typical], IR LED: 21 pieces)
  • Captures images in complete darkness using IR Illuminators.



  • Outstanding HD picture quality: 720p at 30fps



  • Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability



  • View-DR (Visibility Enhanced Wide Dynamic Range) for extra dynamic range in images captured by the camera



  • XDNR eXcellent Dynamic Noise Reduction to improve pictures in low illumination



  • DEPA Advanced analytics trigger alarms and alerts based on user-created rules



  • Power over Ethernet (PoE) capability



  • Built-in heater for cold weather



  • IP66 rating against water ingress/damage



  • IK10 rating against external impact/vandalism



  • ONVIF (Open Network Video Interface Forum) compliance
