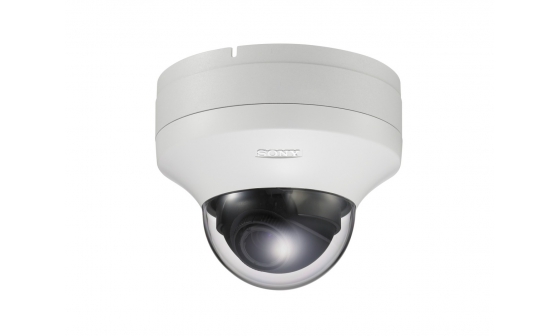

SNC-DH240

Minidome 1080p/30 fps Camera - V Series

SONY

Better pictures mean more incident detection and better evidence, and with Sony's ExmorTM Full-HD (1920x1080) image sensor the SNC-DH240 captures more detail than ever.

This feature-rich Full HD minidome security camera comes with Sony's image enhancement expertise. It includes View-DR for a very wide dynamic range in difficult lighting conditions, and XDNR for incredibly powerful noise reduction.

The SNC-DH240 supports Power over Ethernet (PoE) for easy installation with only one cable, and it confirms to the Open Network Video Interface Forum (ONVIF) for compatibility with other network video devices – even from other manufacturers.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.8-type Exmor CMOS
Number of Effective Pixels Approx. 3.27 Megapixels
Signal System NTSC color system/PAL color system (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.40 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 50 IRE)
B/W: 0.25 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 50 IRE)
Minimum Illumination (30 IRE) Color: 0.25 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 30 IRE)
B/W: 0.15 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 30 IRE)
Dynamic Range Equivalent to 90 dB by View-DR Technology
S/N Ratio (Gain 0 dB) More than 50 dB (AGC 0 dB)
Gain Auto (3 levels)
Shutter Speed 1/1 s to 1/10000 s
Exposure Control Exposure compensation, AGC, Shutter speed
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Built-in varifocal lens
Powered Zoom No
Easy Zoom Yes
Zoom Ratio Optical zoom 2.9x
Digital zoom 4x
Total zoom 11.6x
Powered Focus Yes
Horizontal Viewing Angle 88.5° to 32.3°
Vertical Viewing Angle 65.2° to 24.2°
Focal Length f = 3.1 mm to 8.9 mm
F-Number F1.2 to F2.1
Minimum Object Distance 300 mm
IR Illuminator No

  • Full HD (1920x1080) resolution

    Detailed Full HD progressive images. Progressive acquisition (as opposed to interlace) means that images are more stable to view, contain more information and compress more efficiently - without "interlace artefacts".

  • Exmor CMOS Sensor

    High resolution CMOS sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, Exmor is one of the highest quality image sensors available

  • Triple Codec Network Operation

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • View-DR (Visibility Enhanced Wide Dynamic Range) for extra dynamic range in images captured by the camera

    With Sony's View-DR (Visibility Enhanced Wide Dynamic Range) innovation, you can achieve a high contrast ratio of 125dB. This ensures realistic tonal detail, and state-of-the-art image enhancement with a wide, dynamic range capability.

  • XDNR eXcellent Dynamic Noise Reduction to improve pictures in low illumination

    XDNR (Excellent Dynamic Noise Reduction) technology virtually eliminates image blur in low-light conditions, enabling users to clearly capture images that have not been easy to portray in the past. It also overcomes the problems associated with many competitor camera models. What's more, when both XDNR and Visibility Enhancer are turned on, the cameras can achieve four times the sensitivity compared to when they are off. This technology is ideal for any outdoor surveillance monitoring, such as in a car park at night.

  • DEPA Advanced analytics triggers alarms and alerts based on user-created rules

    DEPA Advanced Intelligent Video and Audio Analytics can analyse images to detect whether pre-selected objects have moved, raising an alarm if an event is detected. Users create a set of rules that determine exactly how and when this happens.

  • Power over Ethernet (PoE) capability

    Supporting Power over Ethernet (PoE), the SNC-DH240 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment.

  • ONVIF (Open Network Video Interface Forum) compliance

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.
