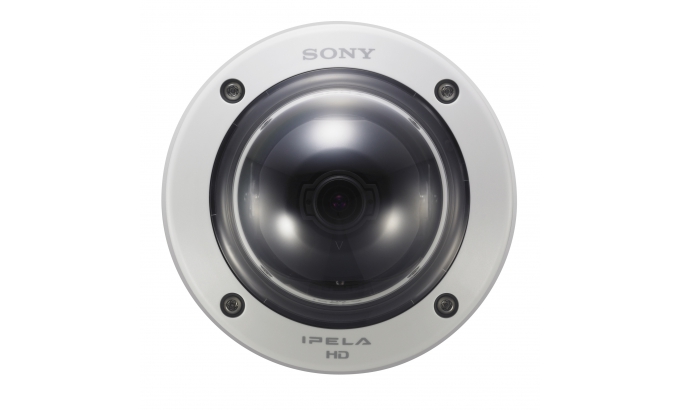

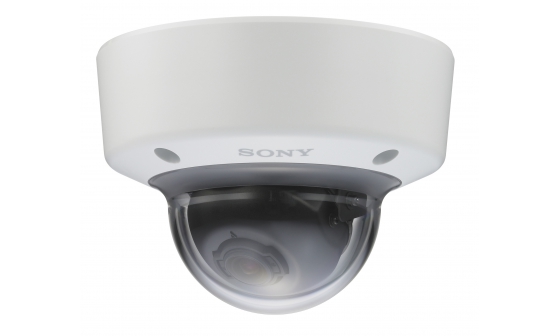

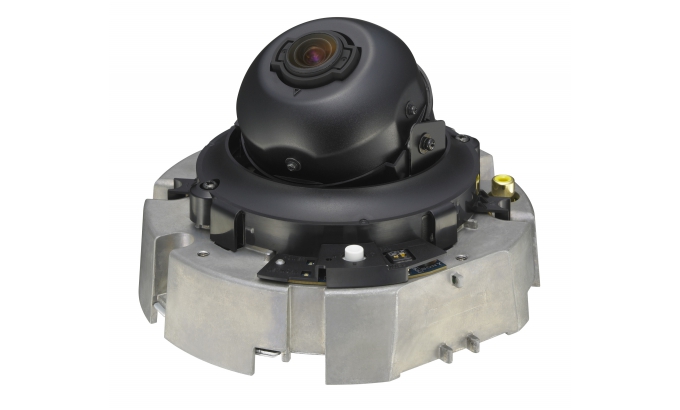

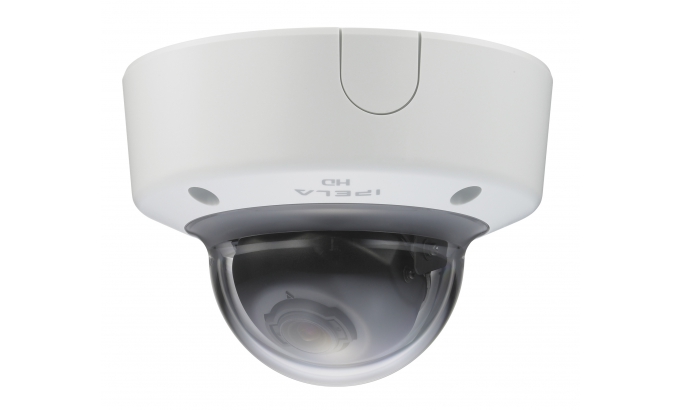

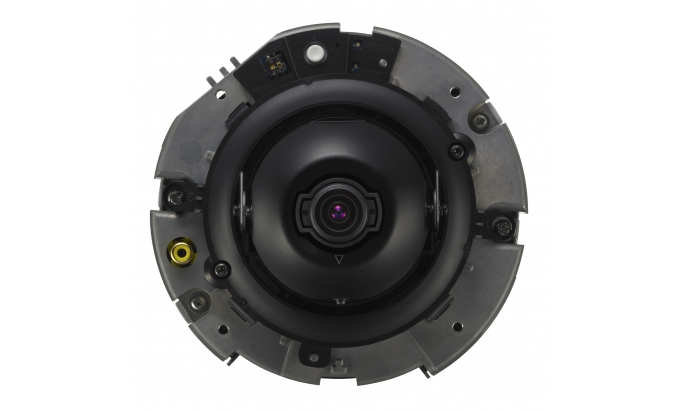

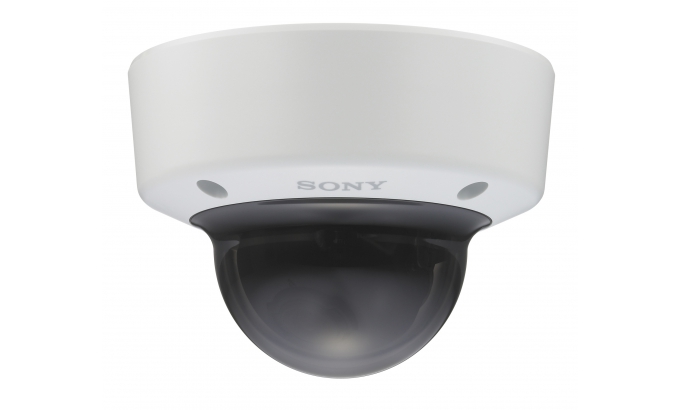

SNC-EM601

Vandal-resistant Minidome 720p/30 fps Camera Powered by IPELA ENGINE EX™ - E Series

SONY

Monitor and protect people, property and other assets with this HD network camera that’s vandal-resistant for use in a wide range of everyday security applications.

This compact, easy to install minidome network camera brings crisp, clear HD imaging quality to a wide range of indoor security and surveillance applications, from offices, banks and retail spaces to education.

The camera’s vandal-resistant design meets IK10 standards, making the SNC-EM601 ideal for use in environments where there’s a risk of physical tampering.

Sony’s Exmor CMOS sensor captures crisp, clear, low-noise HD images for dependable monitoring – even in tricky low-light situations.

The SNC-EM601 features Sony’s award winning IPELA ENGINE EX processing platform. This boosts image quality in a wide range of environments, including challenging low-light scenes.

View-DR expands dynamic range for significantly improved imaging in high-contrast and strongly backlit scenes, like sun-drenched offices or car park entrances. Image stabilisation keeps video images crisp and clear, even when the camera is subject to vibration on a mounting pole or bracket.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 1.37 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.05 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.04 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.03 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.02 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic Range Equivalent to 130 dB with View-DR technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Exposure compensation, Shutter speed, Iris
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Built-in varifocal lens
Easy Zoom Yes
Zoom Ratio Optical zoom 3x
Digital zoom 4x
Total zoom 12x
Easy Focus for Setup Yes
Horizontal Viewing Angle 92.9° to 31.8°
Vertical Viewing Angle 73.1° to 25.5°
Viewing Tilt Angle 121.5°
Focal Length f = 3.0 mm to 9.0 mm
F-Number F1.2 (Wide) to F2.1 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt/Rotation Angle (manual) ±192 °
-7 ° to +75 °
-99 ° to +99 °

  • Vandal resistant

    The camera’s vandal-resistant design meets IK10 standards (protection against mechanical impact), making the SNC-EM601 ideal for use in environments where there’s a risk of physical tampering or damage.

  • See every scene clearly with HD image quality

    View fine detail in a wide range of everyday video security and surveillance environments, from retail spaces to banks and schools. The high resolution Exmor CMOS sensor assures crisp, clear HD 720p images – even in low light conditions like dimly-lit car parks.

  • Best-ever imaging performance with IPELA ENGINE EX

    At the heart of Sony’s G6 (sixth generation) camera family, the powerful IPELA ENGINE EX processing platform combines several technologies for optimises HD picture quality. View-DR combines images taken at different shutter speeds, delivering a wide dynamic range up to 130 dB for excellent performance in high contrast, strongly backlit environments.

  • Steadier, more stable video footage

    The in-built image stabiliser minimises the effects of camera shake – for example when the camera’s pole mounted or subject to mechanical vibration. With clearer, more stable video images it’s easier to see what’s happening in any scene.

  • Don’t miss that crucial moment with Intelligent Motion Detection and Face Detection

    In-built motion detection can trigger a range of actions, from storage and transfer of images to sounding of external alarms. False alarms caused by noise, weather and environment noise are minimised by a smart processing algorithm. Human face detection is also supported, allowing rapid indexing of recordings to find events where a face is visible in the scene.

  • Detect in confidence with Edge-based Analytics

    Powerful DEPA Advanced video analytics enhances Intelligent Motion Detection with rule-based alarm triggers, providing alerts with object filters like ‘passing’ and ‘intrusion’ to further reduce false alarms.

  • Reduce cabling costs with Power Over Ethernet (PoE)

    Power over Ethernet (PoE) allows the camera be powered using the same Ethernet cable that’s used for data transfer, reducing installation complexity and costs.

  • View and control with your smartphone

    Remotely view live camera images and control PTZ position with your Android or iOS smartphone or tablet. You don’t even need to download a special app.

  • ONVIF (Open Network Video Interface Forum) compliance

    Support for ONVIF simplifies interoperability with other network video devices. The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.

  • Triple streaming for extra operational versatility

    Configure up to three simultaneous IP video streams to suit your operating needs. For example, one stream for high quality live viewing; another for storage-efficient recording; and a third for viewing over a low bandwidth connection or on mobile devices.

  • Day/Night operation for clearer images around the clock

    In extreme low light conditions the camera switches automatically to a special night-time monitoring mode, removing the IR-cut filter and extending sensitivity to infra-red wavelengths. Sophisticated video processing ensures crisp, clearly-visible colour images in light levels as low as 0.05 lx. During the day, the IR-cut filter assures excellent image clarity and colour accuracy, even in bright sunlight.
