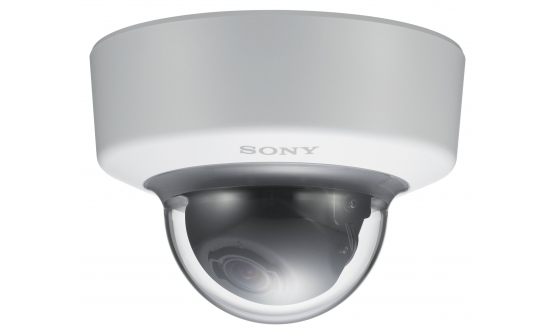

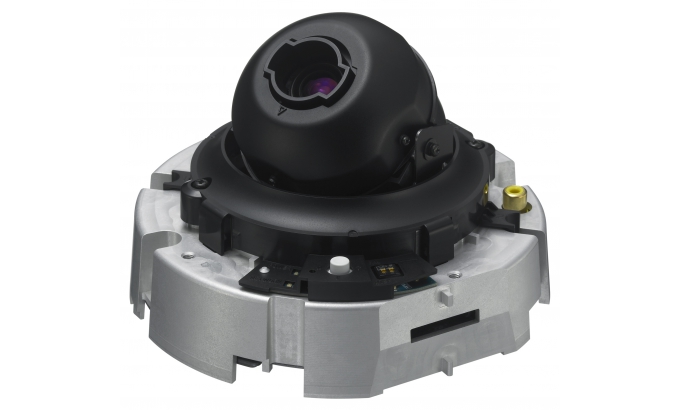

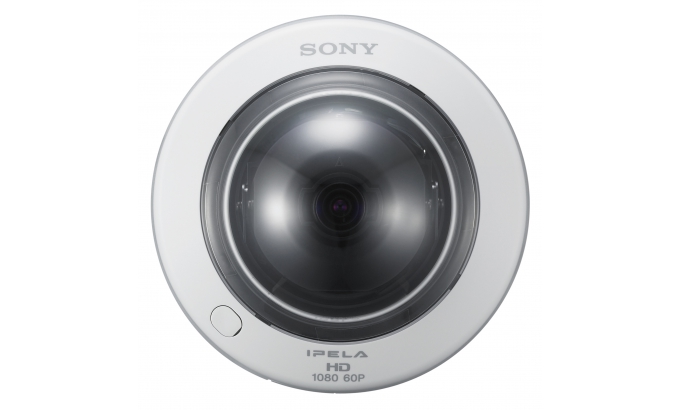

SNC-VM630

Minidome 1080p/60 fps Camera Powered by IPELA ENGINE EX™ - V Series

SONY

The SNC-VM630 minidome network camera delivers a new range of features and level of performance for a Full HD surveillance camera, with a maximum resolution of 1920 x 1080 and improved sensitivity thanks to a new Exmor CMOS sensor.

The SNC-VM630 features the IPELA ENGINE EX signal processing system, providing advanced features such as high frame rate, and improved image processing with View-DR, XDNR and DEPA Advanced. The high frame rate mode – 60 fps and 50 fps – delivers smoother, more natural movement in the video. View-DR at 90 dB captures objects clearly even under very harsh lighting conditions, such as strong backlight or high contrast conditions. XDNR (eXcellent Dynamic Noise Reduction) delivers clear, low-noise, images in low light conditions. DEPA Advanced Intelligent Video and Audio Analytics triggers alarms according to user-defined rules. In-camera analytics are enhanced by additional features such as face detection, left object and removed object detection.

The camera SNC-VM630 offers a high sensitivity, with a minimum illumination of 0.1 lx in Colour mode and 0.07 lx in B/W mode. It can be powered by PoE (IEEE 802.3af-compliant), by AC 24 V +/- 20% or by DC 12 V +/- 10%, for easy installation.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.9-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 2.14 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 0.1 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.07 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.06 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.05 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic Range Equivalent to 90 dB with View-DR Technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Exposure compensation, Shutter speed, Iris
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Built-in varifocal lens
Easy Zoom Yes
Zoom Ratio Optical zoom 3x
Digital zoom 4x
Total zoom 12x
Easy Focus for Setup Yes
Horizontal Viewing Angle 105.3° to 35.6°
Vertical Viewing Angle 56.9° to 20.1°
Viewing Tilt Angle 127.6°
Focal Length f = 3.0 mm to 9.0 mm
F-Number F1.2 (Wide) to F2.1 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt/Rotation Angle (manual) ±192 °
-7 ° to +75 °
-99 ° to +99 °

  • Excellent 1080p/60 fps full HD picture quality

    Gain the huge surveillance benefits of excellent picture quality with 1080p/60 fps Full HD, with up to 1920 x 1080 maximum resolution.

  • High quality and low noise images with Exmor CMOS sensor

    Derived from Sony's broadcast range, the high resolution Exmor CMOS sensor improves image acquisition with its low noise characteristics.

  • Unique features from IPELA ENGINE EX signal processing system

    IPELA ENGINE EX delivers high frame rate capability of up to 60 fps*, View-DR, XDNR (eXcellent Dynamic Noise Reduction) and DEPA Advanced Intelligent Video and Audio Analytics.

    *Note: high frame-rate mode and ViewDR cannot be used at the same time.

  • DEPA delivers intelligent, customisable image capture and alarm triggering

    The Sony DEPA platform offers intelligent video analytics, delivered through a combination of the intelligence built into the camera and the rules and filters that determine which images should be recorded and when an alarm should be triggered.

  • Operates at low minimum illumination

    The SNC-VM630 operates at a minimum illumination of 0.1 lx in Colour mode (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps) and 0.07 lx in B/W mode at 50 IRE and 30 fps.

  • Multiple video and audio codecs

    The SNC-VM630 supports H.264 (High/Main/Baseline Profile) /JPEG video codecs and AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs.

  • True Day/Night function for optimised images in all light conditions

    Day/Night function automatically switches the camera between Day (colour) and Night (B/W) modes, depending on the light level. In Night mode, the IR-cut filter is removed so that the camera becomes sensitive to near-IR light and can reproduce images not visible to the naked eye.

  • ONVIF compliance for compatibility and confidence

    The camera conforms to ONVIF (Open Network Video Interface Forum) Profile S, the widely-accepted protocol for information exchange between network video devices, giving you confidence in its breadth and ease of compatibility.
