SNC-XM632

Minidome 1080p/30 fps Camera Powered by IPELA ENGINE EX™ - X Series

SONY

Powered by IPELA ENGINE EX™: ideal for outdoor surveillance and commercial vehicle applications

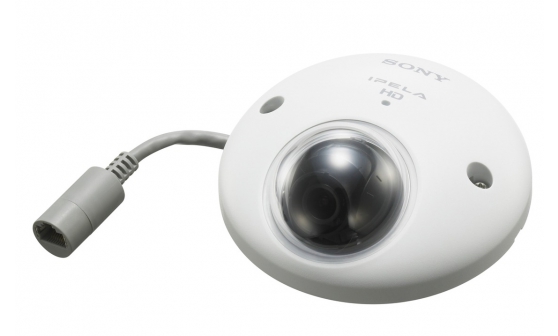

The rugged SNC-XM632 minidome IP camera is suited to a wide range of security and surveillance environments indoors and outside – from retail and mall entrances to bank ATMs, educational campuses or car park exits.

Further broadening its versatility, the camera is engineered to cope with the specific demands of video monitoring inside road vehicles such as buses, where its compact form and flat finish help it blend neatly into its surroundings.

Full HD picture quality is assured by the sensitive, high-resolution Exmor™ CMOS sensor that’s teamed with Sony’s latest-generation IPELA ENGINE EX signal processing system. Every scene looks clearer, sharper and more detailed – even in challenging low-light conditions or with harsh backlighting. Extra intelligence is added by DEPA Advanced Intelligent Video Analytics that can intelligently trigger an alarm based on user-defined rules.

Full HD pictures from the wide-angle lens are fine-tuned by Sony’s IPELA ENGINE EX™ processing engine. This delivers wide dynamic range and cuts noise for crisp, clear results – even in less-than-perfect lighting conditions. Built-in image stabilisation reduces the effects of vibration, making it easier to see what’s happening. As an extra refinement, a built-in microphone captures audio that can be recorded along with video for live monitoring or later analysis.

Ideal for surveillance in buses or commercial transportation, the SNC-XM632 complies with ISO 16750 electrical standards for use inside road vehicles. The camera is vandal resistant with IK10 rating, and carries an IP66 Ingress Protection rating against dust and water.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.9-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 2.14 Megapixels
Minimum Illumination (50 IRE) Color: 0.3 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.3 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.18 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.18 lx (F2.0, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic Range Equivalent to 90 dB with View-DR technology
Gain Auto
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Exposure compensation, Shutter speed
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Fixed lens
Zoom Ratio Digital zoom 4x
Total zoom 4x
Horizontal Viewing Angle 113°
Vertical Viewing Angle 61°
Viewing Tilt Angle 151°
Focal Length f = 2.8 mm
F-Number F2.0
Pan/Tilt/Rotation Angle (manual) ±30 °
0 ° to +90 °
-175 ° to +175 °

  • Ideal for indoor and outdoor applications, including buses and commercial vehicles

    The camera is compliant with ISO 16750, meeting safety regulations for outdoor surveillance and commercial vehicle applications such as on board buses.

  • See every detail with Full HD quality

    The sensitive, high-resolution Exmor CMOS sensor captures crisp, detail-packed Full HD (1920 x 1080) video images.

  • Wide angle lens

    A horizontal viewing angle of 113 degrees makes the camera ideal for applications like road transportation where a wide field of view is essential inside the confines of a vehicle.

  • Best-ever imaging performance with IPELA ENGINE EX

    High quality imaging is assured by Sony’s unique IPELA ENGINE EX signal processing platform that combines powerful signal processing with intelligent video analytics technologies. XDNR (eXcellent Dynamic Noise Reduction) assures clear low-light images, while Visibility Enhancer (VE) dynamically optimises brightness and colour reproduction on a pixel-by-pixel basis. Extra intelligence is added by DEPA Advanced analytics with face detection that can trigger alarms based on user-determined rules.

  • Wide dynamic range

    Innovative View-DR technology achieves a dynamic range equivalent to 90 dB, capturing objects clearly and adaptively – even with harsh backlighting or sun-drenched highlights.

  • Excellent low-light sensitivity

    The camera is capable of capturing clear images in very low light conditions: minimum illumination of 0.3 lx in Colour mode and 0.3 lx in B/W mode (at 50 IRE ).

  • Better pictures, day or night

    Electronic Day/Night function automatically switches the camera between Day (colour) and Night (B/W) modes, depending on light levels.

  • Steadier, more stable images

    The in-built image stabiliser reduces the effects of camera shake or mechanical vibration for steadier images with reduced blur.

  • Optimum picture quality in any situation

    A choice of selectable picture modes optimises camera settings for best picture quality in a wide range of applications and lighting environments.

  • Recording quality to suit your network

    Select CBR (constant bitrate), VBR (variable bitrate) or VBR-with-cap compression modes for optimised recording quality depending on IP network conditions.

  • Automatic edge recording to memory card

    Edge Storage allows recording of video and audio directly to an optional SD/SDHC card for later analysis.

  • Built-in microphone

    Capture crisp, clear audio to hear what’s happening in the camera’s vicinity.

  • Power over Ethernet

    The camera is powered using PoE (IEEE 802.3af) via a standard RJ-45 connector, simplifying installation and eliminating the need for additional power cables.

  • Flexible installation with three-axis lens adjustment

    Ideal for use in indoor or outdoor areas, the camera can operate over a wide range of temperatures from -25 °C to +50°C. It carries an IK10 rating for vandal resistance and is IP66 rated against ingress by water and dust. A tamper alarm provides further protection against unwanted interference.

  • View with your smartphone

    Securely access the camera using a smartphone or tablet (Android or iOS) to view images remotely.

  • Easy IP network configuration

    Configuration of network settings is made quick and simple using the supplied SNC Easy IP Setup application.

  • ONVIF (Open Network Video Interface Forum) compliance

    Support for ONVIF Profile-S simplifies integration with a wide range of VMS platforms and hardware, providing video streaming and camera control. ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.
