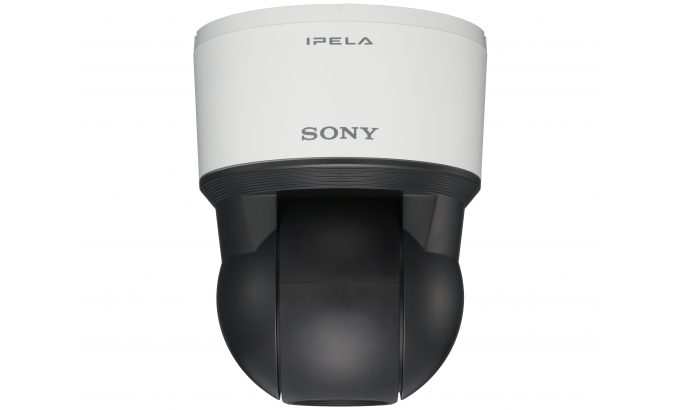

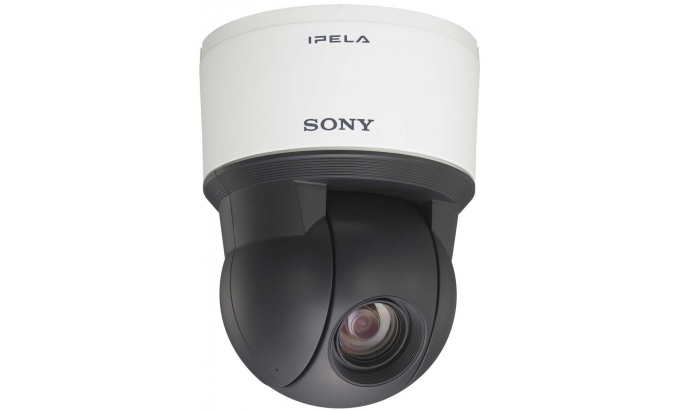

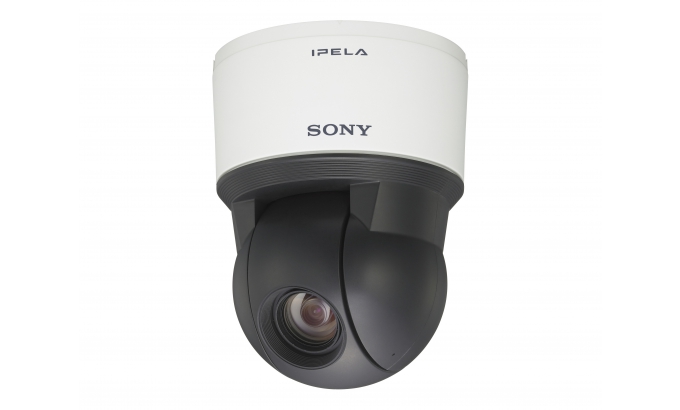

SNC-EP521

Standard Definition (PAL) PTZ Network Camera

SONY

Stylish, easy to install network camera with powerful optical zoom

This stylishly designed PTZ (pan tilt zoom) camera is ideal for video monitoring of wide areas like shopping malls and airport concourses.

The SNC-EP521 captures crisp Standard Definition (PAL) images in a choice of three popular video coding standards to suit your needs and network conditions.

The autofocus lens with powerful 36x optical zoom range pulls distant subjects closer for detail-packed close-ups. Combined with digital zoom, maximum magnification ratio is an impressive 432x, helping identify far-away subjects even in the largest airport concourse.

Even high-contrast or backlit scenes aren’t a problem with DynaView technology that can handle extremes of light and shade for a clearer view.

Images can be optionally recorded onto an on-board memory card for fail-safe data backup. The camera can be conveniently controlled from a smartphone or tablet, letting you view images remotely and adjust pan, tilt, and zoom.

The SNC-EP521 is easy to install, with HPoE (High Power over Ethernet) sharing power and data signals over the same cable to reduce infrastructure costs and labour.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/4-type EXview HAD CCD sensor
Number of Effective Pixels Approx. 0.44 Megapixels
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 1.4 lx (F1.6, AGC On, 1/50 s, 50 IRE)
B/W: 0.15 lx (F1.6,AGC On, 1/50 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE) Color: 0.9 lx (F1.6, AGC On, 1/50 s, 30 IRE)
B/W: 0.1 lx (F1.6, AGC On, 1/50 s, 30 IRE, Night Mode)
Dynamic Range Theoretically 92 dB by DynaView Technology
S/N Ratio (Gain 0 dB) 50 dB (Gain 0 dB)
Gain Auto/Manual (-3 to +28 dB)
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
Lens Auto-focus zoom lens
Powered Zoom Yes
Zoom Ratio Optical zoom 36x
Digital zoom 12x
Total zoom 432x
Powered Focus Yes
Auto Focus Yes
Horizontal Viewing Angle 57.8° to 1.7°
Vertical Viewing Angle 43.4° to 1.3°
Focal Length f = 3.4 mm to 122.4 mm
F-Number F1.6 (Wide) to F4.5 (Tele)
Minimum Object Distance 10 mm (Wide) to 1500 mm (Tele)
Pan/Tilt Angle (powered) 340 ° endless rotation/105 °
Pan Speed 300 °/s (max.)
Tilt Speed 300 °/s (max.)
Number of Preset Positions 256
Number of Tour Programs 5

  • Detail-packed close-ups with 36x optical zoom

    Easily find and track targets with powerful 36x optical zoom. Combined with 12x digital zoom it provides an impressive total zoom ratio of 432x.

  • Three codecs with dual streaming capability

    Pick the video compression format that’s appropriate for your application needs and network resources. JPEG is the best choice for capturing high-quality still images; MPEG-4 or H.264 provide clear video images over limited-bandwidth networks. Dual streaming allows two video streams to be sent independently – ideal for viewing live video while recording simultaneously onto a server.

  • Better pictures, day or night

    True Day/Night function switches the camera between Day (colour) and Night (B/W) modes, boosting sensitivity to near-IR light to see images in conditions of near-darkness.

  • Effortlessly handle varied lighting conditions with DynaView

    DynaView with Wide-D technology expands video dynamic range, improving visibility of images in scenes with high or poor contrast.

  • DEPA Intelligent Video Analytics

    Sony’s DEPA (Distributed Enhanced Processing Architecture) technology also transmits metadata – like object size and position – to a DEPA-enabled recorder. Image processing is performed by the camera, reducing the load on the recorder compared with conventional analytic systems.

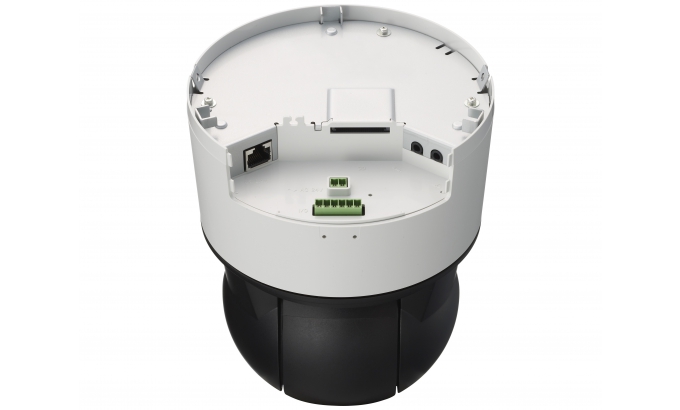

  • Simpler installation with HPoE

    High Power over Ethernet (HPoE – IEEE802.3at) uses the same network cable for camera powering and data transfer, reducing physical infrastructure costs and allowing simpler, more rapid installation.

  • On-board recording

    Images can be recorded directly to an optional SD memory card for fail-safe data backup.

  • View and control with your smartphone

    Securely access the camera using a smartphone or tablet (Android or iOS) to view images remotely and control pan, tilt, and zoom functions. You don’t even need to download a special app.

  • ONVIF compliance for compatibility and confidence

    The SNC-EP521 conforms to ONVIF (Open Network Video Interface Forum) Profile S, the widely-accepted protocol for information exchange between network video devices. This gives extra confidence in the camera’s breadth of compatibility with other devices.
