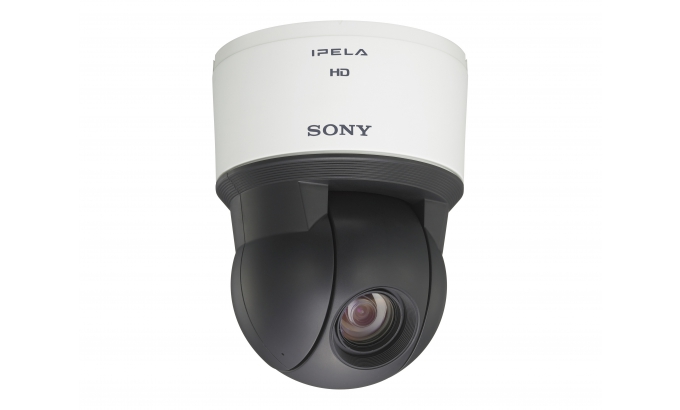

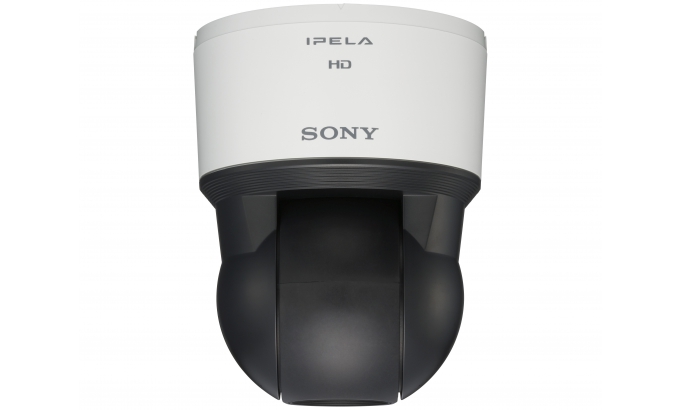

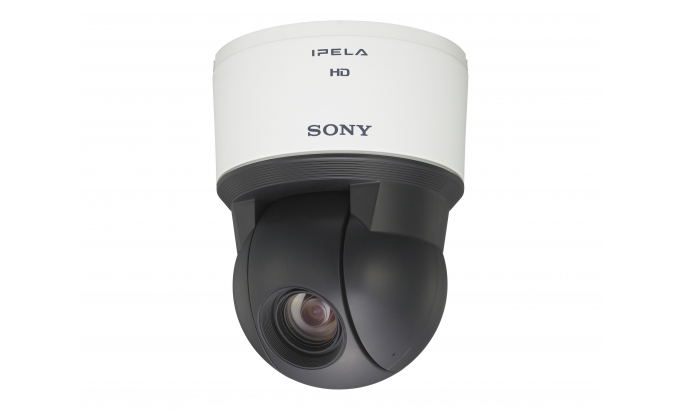

SNC-ER580

1080p/30 fps Rapid Dome Camera - E Series

SONY

The SNC-ER580 Rapid Dome camera delivers:

- High quality 1080p Full HD images over a wide area of view with its superb pan, tilt and zoom capabilities

- High-speed 360 degrees endless rotation

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.8-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 3.27 Megapixels
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 1.7 lx (F1.6, AGC On, 1/30 s, 50 IRE)
B/W: 0.3 lx (F1.6, AGC On, 1/30 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE) Color: 1.2 lx (F1.6, AGC On, 1/30 s, 30 IRE)
B/W: 0.18 lx (F1.6, AGC ON, 1/30 s, 30 IRE, Night Mode)
Dynamic Range Theoretically 86 dB with DynaView Technology
S/N Ratio (Gain 0 dB) 50 dB (Gain 0 dB)
Gain Auto/Manual (-3 to +28 dB)
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
Lens Auto-focus zoom lens
Powered Zoom Yes
Zoom Ratio Optical zoom 20x
Digital zoom 12x
Total zoom 240x
Powered Focus Yes
Auto Focus Yes
Horizontal Viewing Angle 55.4° to 2.9°
Vertical Viewing Angle 31.2° to 1.6°
Focal Length f = 4.7 mm to 94.0 mm
F-Number F1.6 (Wide) to F3.5 (Tele)
Minimum Object Distance 10 mm (Wide) to 800 mm (Tele)
Pan/Tilt Angle (powered) 360 ° endless rotation/210 °
Pan Speed 300 °/s (max.)
Tilt Speed 300 °/s (max.)
Number of Preset Positions 256
Number of Tour Programs 5

  • Excellent 1080p Full HD picture quality at 30fps

    Gain the huge surveillance benefits of excellent picture quality with 1080p Full HD supporting 30 fps at H.264 giving 1920 x 1080 maximum resolution.

  • High quality and low noise images with Exmor CMOS© sensor

    Derived from Sony's broadcast range, the high resolution Exmor CMOS sensor improves image acquisition with its low noise characteristics.

  • High-speed 360 degrees endless rotation

    Ideal for mission critical surveillance, the camera's high-speed 360-degree endless panning capability enables it to cover a wide area quickly in a high degree of detail.

  • Above-the-horizon tilt capability

    The camera's 15" tilt-up and total tilt range of 210" make it ideal for environments such as multi-storey car parks, shopping centres, terminals and other buildings.

  • Powerful 20x optical zoom capability

    20x optical zoom delivers greater flexibility in finding and tracking targets. 12x digital zoom capability provides a total zoom ratio of 240x.

  • Choose the compression format that suits your needs

    This camera supports three compression formats: JPEG is the best choice for high-quality still images

  • Day/Night function for optimised images in all light conditions

    True Day/Night function switches the camera between Day (colour) and Night (B/W) modes, so that in Night mode the camera becomes sensitive to near-IR light and can reproduce images not visible to the naked eye.

  • Wide-D technology optimises images with varied lighting conditions

    Wide-D technology expands the video dynamic range of your camera to improve the visibility of images with high or poor contrast.

  • DEPA for intelligent camera-side analysis

    Sony's DEPA (Distributed Enhanced Processing Architecture) technology allows the camera to send not only images but also related metadata, including object size and position, to the DEPA-enabled recorder. Unlike conventional analytic systems, where all of the image processing is performed by the recorder, DEPA thereby avoids CPU overload.

  • hPoE for greatly simplified installation

    The camera's ability to be powered through the same Ethernet cable that it uses for data transfer, through high Power over Ethernet (hPoE – IEEE802.3at), significantly reduces physical infrastructure costs and accelerates deployment.

  • On-board recording for reduced network traffic

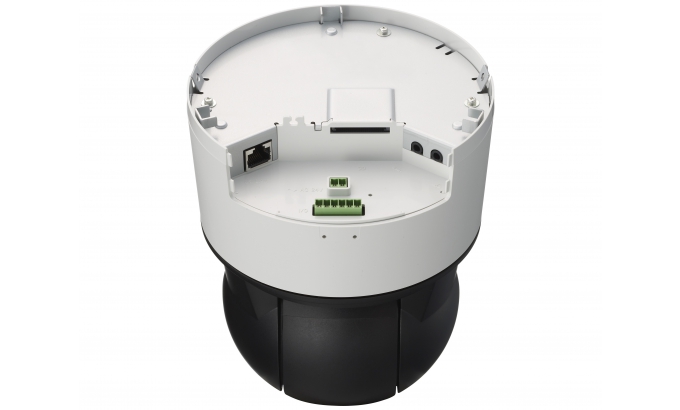

    The camera's SD memory card slot gives you the option to perform on-board recording to reduce network traffic.

  • RealShot Manager Lite for instant performance

    Recording software (RealShot Manager Lite) is bundled with your camera so that you can start recording and monitoring immediately.

  • ONVIF compliance for compatibility and confidence

    The camera conforms to ONVIF (Open Network Video Interface Forum) version 1.02, the widely-accepted protocol for information exchange between network video devices, giving you confidence in its breadth and ease of compatibility.
