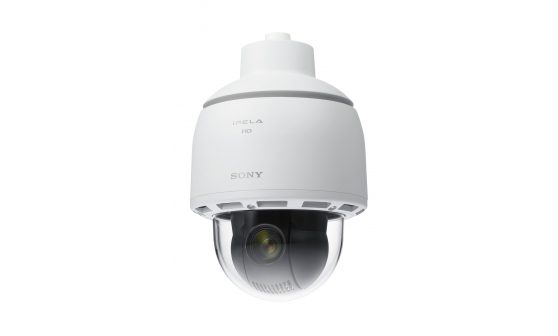

SNC-ER585

Outdoor Unitized 1080p/30 fps Rapid Dome Camera - E Series

SONY

Sony SNC-ER585 is the ideal outdoor surveillance solution, rated IP66 (water proof) and IK10 (impact resistant) making it ideal for tough outdoor environments.

This camera delivers high quality 1080p Full HD images over a wide area of view with its superb pan, tilt and zoom capabilities. Its panning features high-speed 360 degrees endless rotation

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.8-type Exmor CMOS sensor
Number of Effective Pixels Approx. 3.27 Megapixels
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 1.7 lx (F1.6, AGC On, 1/30 s, 50 IRE)
B/W: 0.3 lx (F1.6, AGC On, 1/30 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE) Color: 1.2 lx (F1.6, AGC On, 1/30 s, 30 IRE)
B/W: 0.18 lx (F1.6, AGC On, 1/30 s, 30 IRE, Night Mode)
Dynamic Range Theoretically 86 dB with DynaView Technology
S/N Ratio (Gain 0 dB) More than 50 dB (Gain 0 dB)
Gain Auto/Manual (-3 to +28 dB)
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance Auto, Advanced Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
Lens Auto-focus zoom lens
Powered Zoom Yes
Zoom Ratio Optical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered Focus Yes
Auto Focus Yes
Horizontal Viewing Angle 59.5° to 2.1°
Vertical Viewing Angle 33.4° to 1.2°
Focal Length f = 4.3 mm to 129.0 mm
F-Number F1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance 300 mm (Wide) to 1200 mm (Tele)
Pan/Tilt Angle (powered) 360 ° endless rotation/210 °
Pan Speed 300 °/s (max.)
Tilt Speed 300 °/s (max.)
Number of Preset Positions 256
Number of Tour Programs 5

  • Fully integrated outdoor PTZ camera package, compatible with standard mounting solutions.



  • Full HD image sensor with x30 optical zoom



  • Water, dust and vandal resistant for reliable outdoor performance



  • High-speed 360 degrees endless rotation

    The SNC-ER585 is rated IP66 for dust and water resistance, and certified IK10 vandal-resistant.

  • Above-the-horizon tilt capability

    Ideal for mission critical surveillance, the camera's high-speed 360-degree endless panning capability enables it to cover a wide area quickly in a high degree of detail.

  • Choose the compression format that suits your needs

    The camera's 15" tilt-up and total tilt range of 210" make it ideal for outdoor environments requiring a wide area to be monitored.

  • Noise Reduction and Wide Dynamic Range, for challenging lighting conditions

    This camera supports three compression formats: JPEG is the best choice for high-quality still images
