SNC-ER585H

Outdoor Unitized 1080p/30 fps Rapid Dome Camera - E Series

SONY

Sony SNC-ER585H is the ideal outdoor surveillance solution, rated IP66 (water proof) and IK10 (impact resistant) and its operating temperature up to +65°C making it ideal for tough outdoor environments.

This camera delivers high quality 1080p Full HD images over a wide area of view with its superb pan, tilt and zoom capabilities. Its panning features high-speed 360 degrees endless rotation; it can tilt 15” above the horizon, yielding a total tilt range of 210”; and it possesses a powerful 30x optical zoom.

The SNC-ER585H delivers Full HD in H.264, JPEG and MPEG-4 compression formats. It operates down to 1.7 lx colour (F1.6, AGC ON, 1/30s, 50 IRE by IP).

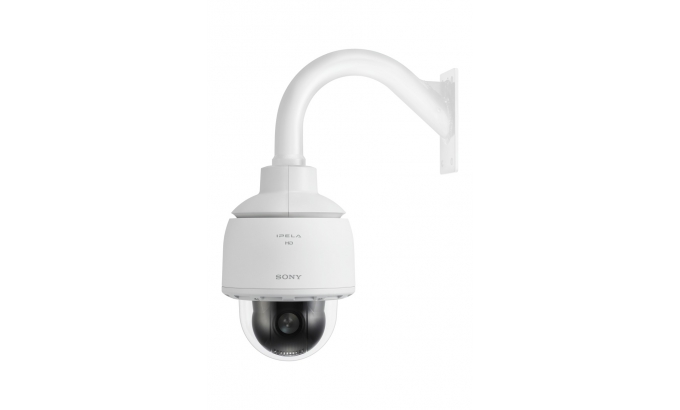

*Product shown with housing accessory. Housing accessory not included.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/2.8-type Exmor CMOS sensor
Number of Effective Pixels Approx. 3.27 Megapixels
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 1.7 lx (F1.6, AGC On, 1/30 s, 50 IRE)
B/W: 0.3 lx (F1.6, AGC On, 1/30 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE) Color: 1.2 lx (F1.6, AGC On, 1/30 s, 30 IRE)
B/W: 0.18 lx (F1.6, AGC On, 1/30 s, 30 IRE, Night Mode)
Dynamic Range Theoretically 86 dB with DynaView Technology
S/N Ratio (Gain 0 dB) More than 50 dB (Gain 0 dB)
Gain Auto/Manual (-3 to +28 dB)
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance Auto, Advanced Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
Lens Auto-focus zoom lens
Powered Zoom Yes
Zoom Ratio Optical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered Focus Yes
Auto Focus Yes
Horizontal Viewing Angle 59.5° to 2.1°
Vertical Viewing Angle 33.4° to 1.2°
Focal Length f = 4.3 mm to 129.0 mm
F-Number F1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance 300 mm (Wide) to 1200 mm (Tele)
Pan/Tilt Angle (powered) 360 ° endless rotation/210 °
Pan Speed 300 °/s (max.)
Tilt Speed 300 °/s (max.)
Number of Preset Positions 256
Number of Tour Programs 5

  • Fully integrated outdoor PTZ camera package, compatible with standard mounting solutions.



  • Full HD image sensor with x30 optical zoom



  • Water, dust and vandal resistant for reliable outdoor performance

    The SNC-ER585H is rated IP66 for dust and water resistance, and certified IK10 vandal-resistant.

  • Operating temperature up to +65°C



  • High-speed 360 degrees endless rotation

    Ideal for mission critical surveillance, the camera’s high-speed 360-degree endless panning capability enables it to cover a wide area quickly in a high degree of detail.

  • Above-the-horizon tilt capability

    The camera’s 15” tilt-up and total tilt range of 210” make it ideal for outdoor environments requiring a wide area to be monitored.

  • Choose the compression format that suits your needs

    This camera supports three compression formats: JPEG is the best choice for high-quality still images; MPEG-4 provides clear video images over limited-bandwidth networks; and H.264 is the alternative for severely limited-bandwidth networks, with twice the efficiency of MPEG-4.

  • Noise Reduction and Wide Dynamic Range, for challenging lighting conditions
