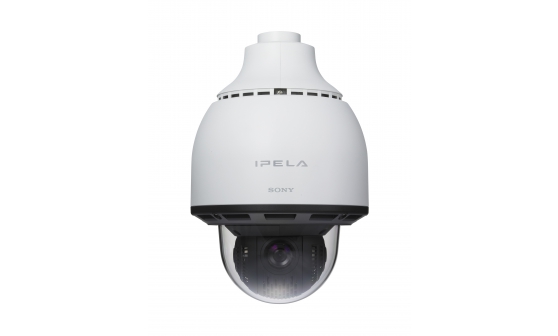

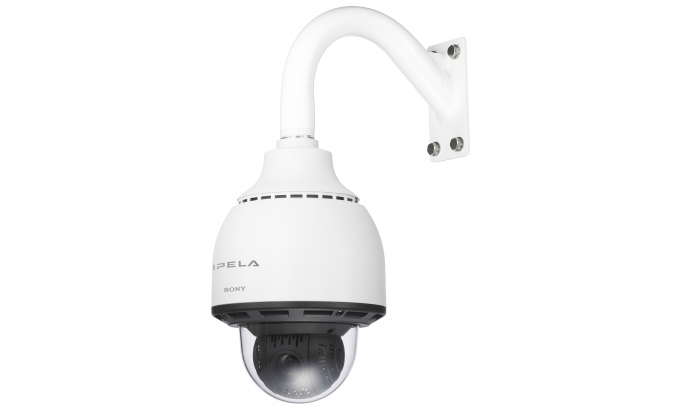

SNC-RS86P

Outdoor Unitized SD (PAL) Rapid Dome Camera

SONY

NEW FEATURE RICH PTZ DOME FROM SONY

Designed for outdoor use, the SNC-RS86P PTZ dome camera delivers excellent picture quality at D1 Resolution.This level of clarity combined with state-of-the-art image processing and a high speed panning capability make the RS86P one of the most effective CCTV cameras on the market. With a total tilt range of 210° and a 360° endless high-speed panning capability, it can cover a wide monitoring area quickly and in a high level of detail. This capability makes it an obvious choice for mission critical CCTV applications including airport/border and traffic surveillance.

Installation and servicing time is reduced by a newly developed base, with a Quick Release Mechanism, which means the camera can be installed or detached quickly.

SNC-RS Series Cameras also feature ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.

  • Capture Everything

    Sony's PTZ network dome cameras deliver clear and crisp CCTV images with a level of detail never seen before. In combination with advanced image processing technology, the SNC-RS86P provides enhanced levels of security even under the most challenging lighting conditions. It also provides the option to cover more area with fewer cameras, depending upon your operational requirements.

  • Enhanced viewing range

    An extended tilt range provides greater viewing flexibility, especially when viewing in zoom.

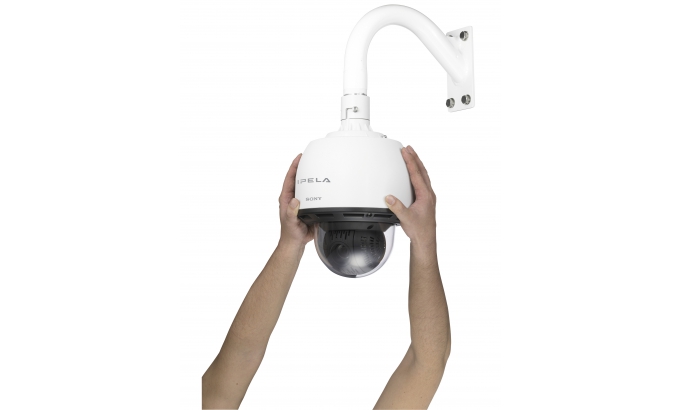

  • Simple to install, easy to maintain

    The camera can be installed or detached quickly and easily thanks to its newly developed base, which greatly reduces installation and servicing time and costs.

  • High flexible network capability

    Enjoy extraordinary operational flexibility using the ideal compression format for differing image and network types (JPEG for high-quality still images

  • ONVIF compliance offers the optimum in system flexibility.

    Compliance with ONVIF Open Network Video Interface Forum) ensures interoperability and maximum flexibility between a wide range of manufacturers' network video products.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/4 type CCD with Exwave HAD technology
Number of Effective Pixels NTSC: Approx. 0.38 Megapixels
PAL: Approx. 0.44 Megapixels
Signal System PAL
Minimum Illumination (50 IRE) Color : 0.8 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
B/W : 0.09 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
Minimum Illumination (30 IRE) Color: 0.40 lx (F1.6, AGC ON, 1/50 s)
B/W: 0.050 lx (F1.6, AGC ON, 1/50 s)
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto / Manual (-3 to +28 dB)
Shutter Speed 1 s to 1/10000 s
Exposure Control Auto, Full auto, Shutter-priority, Iris-priority, Manual, EV compensation, Backlight compensation
White Balance Auto, Indoor, Outdoor, One-push WB, ATW, Manual
Lens Auto-focus zoom lens
Powered Zoom Yes
Easy Zoom No
Zoom Ratio Optical zoom 36x
Powered Focus Yes
Horizontal Viewing Angle 57.8°to 1.7°
Focal Length f = 3.4 mm to 122.4 mm
F-Number F1.6 (wide), F4.5 (tele)
Minimum Object Distance 320 mm (wide) to 1500 mm (tele)
Pan/Tilt/Rotation Angle (manual) 360° endless rotation/ 210°
Pan Speed 400 degrees/s (max.)
Tilt Speed 400 degrees/s (max.)
Number of Preset Positions 256
Number of Tour Programs 5 preset tours, 4 shadow tours, 16 presets per one preset tour
IR Illuminator No

  • Improved performance in challenging lighting conditions

    Sony's Visibility Enhancer technology improves performance in challenging lighting conditions, for example high-contrast environments, such as casinos and highways that had previously been difficult to monitor. The Visibility Enhancer's advanced system suppresses extreme whites and boosts dark areas in a scene simultaneously and dynamically, to produce clearer images on the screen.

  • Powerful optical zoom

    36 x optical zoom delivers greater flexibility in finding and tracking targets.

  • Wider vertical viewing range

    A 210° tilt angle allows a wider vertical viewing range, whilst 400°/sec pan/tilt speed and 360° continuous rotation allows users to find and track targets quickly and easily. The E-flip feature provides seamless viewing.

  • Triple Codec Network Operation

    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

  • ONVIF Compliant

    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery, video streaming and intelligence metadata. Allows interoperability between network video devices.

  • Tamper Alarm

    When an attempt is made to tamper with the camera, such as spray-painting the lens, the SNC-RS Series detects this and triggers an alarm. This event can also be used to activate the camera relays, or even to start the Voice Alert function.

  • Advanced Audio Detection

    Unlike conventional audio detection where an alarm is triggered based on a preset audio level, the SNC-RS Series triggers its alarms based on ambient sound conditions as the threshold. The camera stores and updates ambient audio levels and frequencies, and when the threshold level based on this data, is surpassed, an alarm is triggered. (Available with version 1.1 or later software.)

  • Audio Message Alert

    The camera can store up to three pre-recorded audio alert messages which may be played via an active speaker upon manual or automatic initiation.

  • Audio Echo Cancellation

    This feature removes the echo frequently encountered between the operator and remote site audio systems when speakers and microphones are used.

  • IP66 Rating

    The SNC-RS86P fully complies with IP66 standard for protection against water and dust ingress, making it ideal for use in a wide range of adverse weather and environmental conditions.

  • Hard Coated Dome Cover

    Providing the optimum in protection the camera is enclosed by an impact-resistant and scratch-proof polycarbonate dome cover. Resistance to external damage ensures continued image quality and camera performance

  • Integrated Sunshade Ventilation Mechanism

    Delivering optimum performance in hot weather the conditions the camera benefits from a special ventilation mechanism
