SNC-WR602

Outdoor Unitized 720p/60 fps Rapid Dome Camera Powered by IPELA ENGINE EX™ - W Series

SONY

Optimised for critical outdoor surveillance applications, with 60p high frame rate, advanced analytics, industry-leading pan speed and weather/vandal resistance

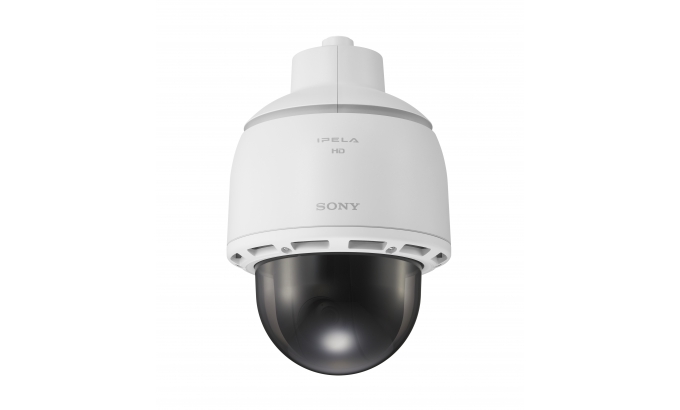

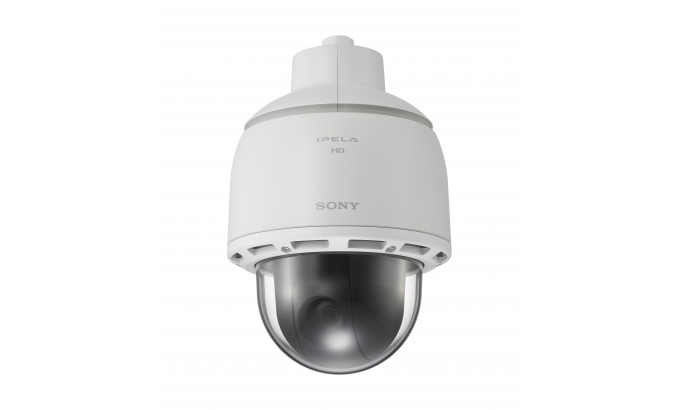

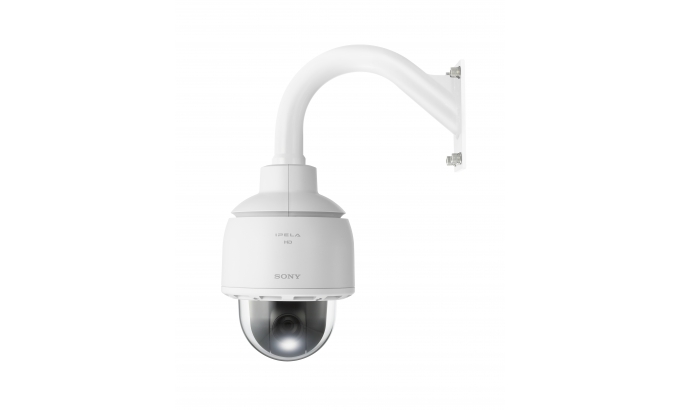

The SNC-WR602 is a high-performance rapid dome network camera that’s ideal for wide-area surveillance in challenging environments – from airports, stadiums, urban areas, malls and perimeters. The camera’s sensitive, high-resolution Exmor™ CMOS sensor is teamed with Sony’s latest-generation IPELA ENGINE PRO™ processing platform, delivering HD picture quality with powerful analytics for smarter surveillance. An extra-wide 130dB dynamic range assures clear video images, even in harsh lighting environments where other cameras struggle with extremes of light and shade in the same scene. Frame rates as high as 60fps – double that of normal IP cameras – let operators recognise and assess split-second incidents in recorded footage with unprecedented precision.

The SNC-WR602 allows continuous 360° PTZ operation, with the industry’s fastest pan speed of 700°/s letting an operator quickly recall preset areas of interest in a single, seamless motion. A powerful 30x optical zoom offers wide area coverage, plus the ability to grab detailed close-ups without losing clarity.

Designed for dependable round-the-clock performance in demanding outdoor environments, the unitised camera can operate in temperatures from -40C to +50C, and is IP66/IK10 rated to resist weather and unwelcome tampering by vandals. Suitability for external use is enhanced by a defog Image Processing feature that reduces smog or haze, while gyroscopic image stabilizer combats camera-shake caused by vibration on a windy mounting pole or road bridge.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type progressive scan Exmor CMOS sensor
Number of Effective Pixels Approx. 1.37 Megapixels
Signal System NTSC/PAL (switchable)
Sync System Internal synchronization
Minimum Illumination (50 IRE) Color: 1.0 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.03 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.4 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.01 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Dynamic Range Equivalent to 130 dB with View-DR technology
S/N Ratio (Gain 0 dB) More than 50 dB
Gain Auto/Manual (-3 dB to +28 dB)
Shutter Speed 1/1 s to 1/10,000 s
Exposure Control Full auto, Shutter priority, Iris priority, Manual
White Balance ATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Auto-focus zoom lens
Powered Zoom Yes
Easy Zoom No
Zoom Ratio Optical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered Focus Yes
Auto Focus Yes
Easy Focus for Setup No
Horizontal Viewing Angle 58.3° to 2.1°
Vertical Viewing Angle 34.8° to 1.2°
Focal Length f = 4.3 mm to 129.0 mm
F-Number F1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance 300 mm
Pan/Tilt Angle (powered) 360° endless rotation/220°
Pan Speed 700°/s (max.)*1
Tilt Speed 700°/s (max.)*1
Number of Preset Positions 256
Number of Tour Programs 5
IR Illuminator No
IR Working Distance No
White-light LED Illuminator No
LED Working Distance No

  • See more detail with HD quality

    The Exmor CMOS sensor captures crisply detailed HD video images (1280 x 720 60p), even in low light.

  • Introducing IPELA ENGINE PRO

    W Series security cameras introduce Sony’s IPELA ENGINE PRO platform that builds on powerful IPELA ENGINE signal processing. This provides a 130dB dynamic range at HD resolution while maintaining full frame rate (up to 30fps) and delivering a unique range of camera features. XDNR (Excellent Dynamic Noise Reduction) assures clear low-light images without motion blur, while Visibility Enhancer (VE) dynamically optimises brightness and colour reproduction on a pixel-by-pixel basis. Video analytics technologies are provided with DEPA Advanced analytics, tampering detection and face detection – each of which can trigger alarms based on user-determined rules.

  • Capture smooth, fluid movement

    Video images can be captured at a high frame rate of 60fps, allowing precise analysis when stepping through recorded footage frame by frame. It’s ideal for applications like city surveillance where it’s essential to see what’s happening with split-second accuracy.

  • Industry-leading pan performance and powerful 30x optical zoom

    An industry-leading pan speed of 700°/s enables the camera to pan quickly to areas of interest in a single, seamless motion. Powerful 30x optical zoom range allows smooth, rapid transition from wide-area coverage to high-magnification close-ups of distant subjects without sacrificing clarity.

  • Defog Image Processing

    Defog Image Processing feature uses powerful image processing to enhance pictures in fog, smog and haze conditions for clearer video images.

  • Better pictures, day or night

    True D/N (Day/Night) function automatically switches the camera to Day or Night mode, depending on ambient light levels.

  • Steadier, more stable images

    On-board gyroscopic image stabilizer keeps video images steady and blur-free, even if the camera is subjected to being shaken in unfavourable environmental conditions.

  • Quick setting optimisation for ideal picture quality in a range of situations

    A choice of selectable picture modes optimises camera settings for best picture quality in a wide range of applications and lighting environments.

  • Focal Plane Distortion Correction

    Compensates for image distortion generated in a scene by the CMOS sensor focal plane phenomenon.

  • Recording quality to suit your network

    Select VBR (variable bitrate) or CBR (constant bitrate) compression modes for optimised recording quality depending on IP network conditions.

  • Automatic recording to memory card

    Edge Storage allows automatic recording of video and audio directly to an optional SD/SDHC card for later analysis. Recording can be triggered in response to an alarm event, if there’s an attempt to tamper with the camera or in the event of network connection being temporarily lost.

  • View with your smartphone

    Securely access the camera using a smartphone or tablet (Android or iOS) to view images remotely and control the camera’s pan, tilt, and zoom functions.

  • Built for tough environments, with protection against tampering, water and dust

    Ideal for use in outdoor areas, the camera is IK10-rated for vandal resistance and IP66-rated against ingress by water and dust. It can operate reliably in extreme temperatures from -40C to +50C.

  • ONVIF (Open Network Video Interface Forum) compliance

    Support for ONVIF Profile-S simplifies integration with a wide range of VMS platforms and hardware, providing video streaming and camera control. ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.
