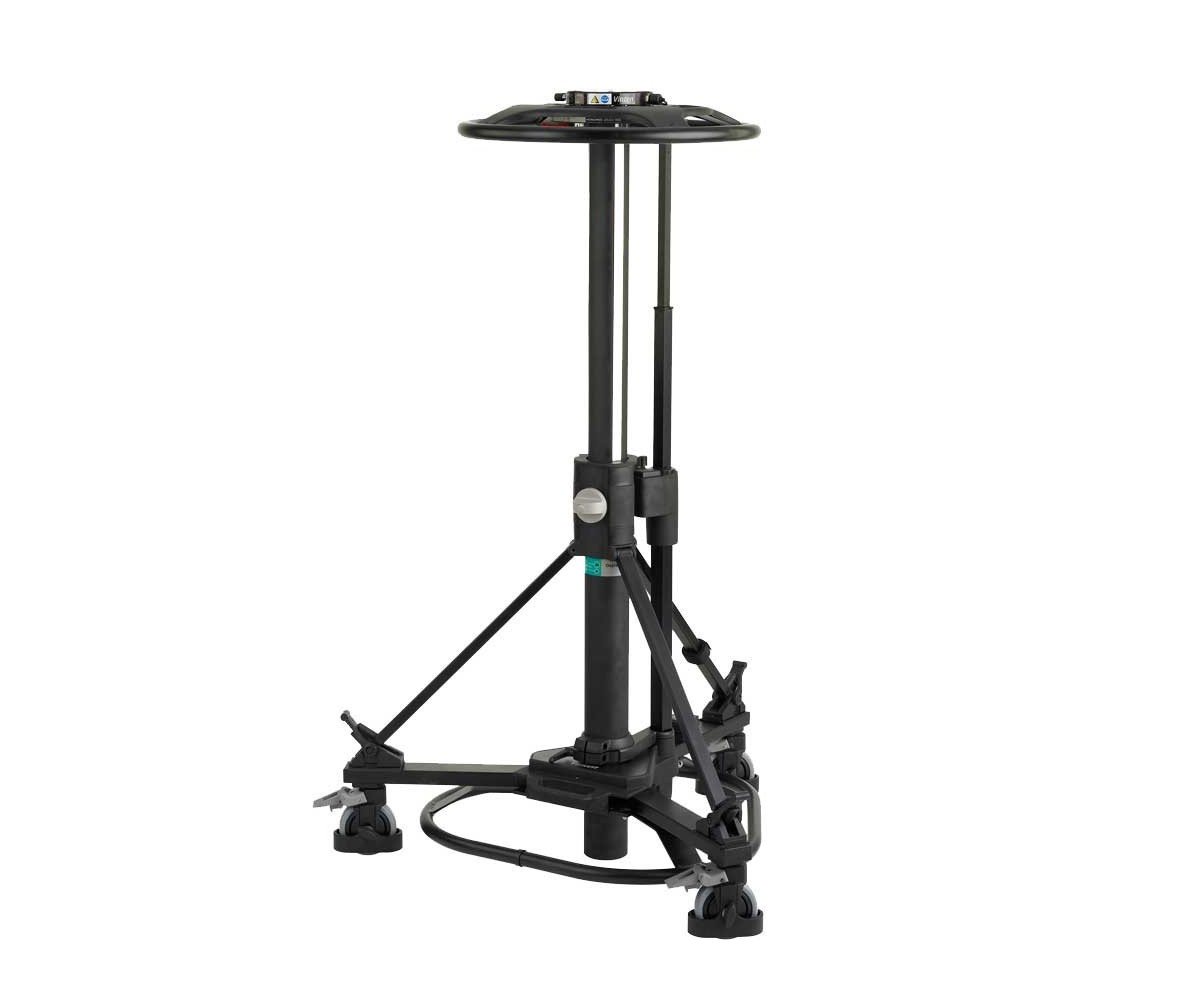

Vinten (V3950-0001) Osprey Light Pedestal

The Osprey Light is ideal for studios that require a lightweight pedestal which does not compromise functionality. (Mfr # V3950-0001)

VINTEN

The Osprey Light is designed for the growing number of small studios that require the quality of on shot movement synonymous with Vinten pedestals.

The Osprey Light is a 40 kg / 88.2 lbs capacity pedestal, with crabbing base capability. This single stage pedestal also has an on-shot stroke of 54 cm / 21.2" and a significantly improved wheel braking mechanism that eliminates the flat spots that can ruin a rolling shot.

Perfect Balance is easy to achieve in any situation as the Osprey Light has an integral manual pump as well as an inlet valve for use with external pressure sources.

The Osprey Light is ideal for studios that require a lightweight pedestal which does not compromise functionality.

• Crabbing base capability
• Lightweight




TRANSIT WIDTH 70 cm / 27.5"
WEIGHT 21.8 kg / 48.1 lbs
PAYLOAD 40 kg / 88 lbs (max. capacity includes trim weights)
HEIGHT 76.5 to 130.5 cm / 30.1 to 51.4"
GROUND CLEARANCE 1 cm / 0.4"
STEERING RING DIAMETER 50 cm / 19.7"
TRACKING WIDTH 80.6 cm / 31.7"
WHEEL LOCK Yes
TRIM WEIGHTS 2.4 kg / 5.3 lbs
WHEEL DIAMETER 10 cm / 4"
ON-SHOT STROKE 54 cm / 21.2"






Standard Manufacturer's Warranty
